Description

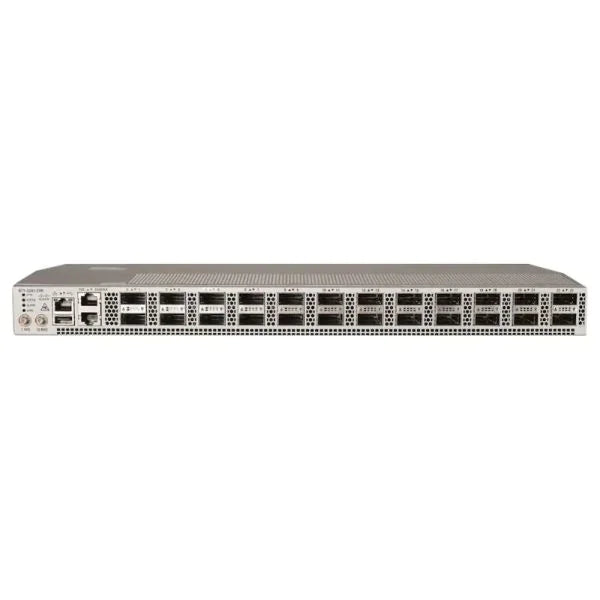

The Cisco NCS 55A1-24H-B Network Convergence System router is a high-density, fixed-chassis platform designed for modern service provider, cloud, and large-scale data center networks. Built to support spine, leaf, and Top-of-Rack (ToR) architectures, it delivers exceptional throughput, scalability, and operational efficiency in a compact 1RU form factor.
Featuring 24 x 100 Gigabit Ethernet QSFP+ ports, the NCS 55A1-24H-B supports advanced routing and transport technologies including MPLS, Segment Routing, and L3VPN. With up to 1.8 Tbps of system throughput and support for up to 2 million FIB entries, it is optimized for high-performance IP and converged networks.
Powered by Cisco IOS XR, the platform provides carrier-class reliability, programmable telemetry, zero-touch provisioning, and robust security features such as MACsec, ACLs, and AAA. Dual redundant power supplies and hot-swappable fan trays ensure high availability for mission-critical deployments.
| Category | Specification |
|---|---|
| Product Type | Network Convergence Router |
| Model | NCS-55A1-24H-B |
| Form Factor | Rack-mountable |
| Rack Units | 1RU |
| Ports | 24 x 100GbE QSFP+ |
| Breakout Support | 25GbE / 10GbE (with supported transceivers) |
| Console Port | 1 x RJ-45 |
| Management Port | 1 x RJ-45 |
| USB Port | 1 x USB |
| Processor | 8-core x86 CPU @ 1.6 GHz |
| System Memory | 32 GB |
| Storage | 128 GB SSD |
| Throughput | Up to 1.8 Tbps |
| Route Scale | Up to 2 million FIB entries |
| Jumbo Frames | Up to 9216 bytes |
| Routing Protocols | BGP, OSPFv2/v3, IS-IS, IS-ISv6, MPLS, ECMP, HSRP, Static |
| Network Features | MPLS, L3VPN, Segment Routing, SR-TE, VRRP |
| Security | MACsec, AES Encryption, ACLs, TACACS+ |
| Management | SNMPv3, SSH, Telemetry |
| Automation | Zero-Touch Provisioning (ZTP), iPXE |
| Operating System | Cisco IOS XR |
| Power Supplies | Dual hot-swappable, redundant |
| Power Consumption | Up to 800 W (maximum) |
| Cooling | 3 hot-swappable fan trays |
| Operating Temperature | 32°F to 104°F |
| Operating Humidity | 5%–95% non-condensing |
| Width | 17.3 in |
| Depth | 21.7 in |
| Height | 1.7 in |
| Color | Gray |
| Warranty | 1-Year Limited Warranty |
