Description

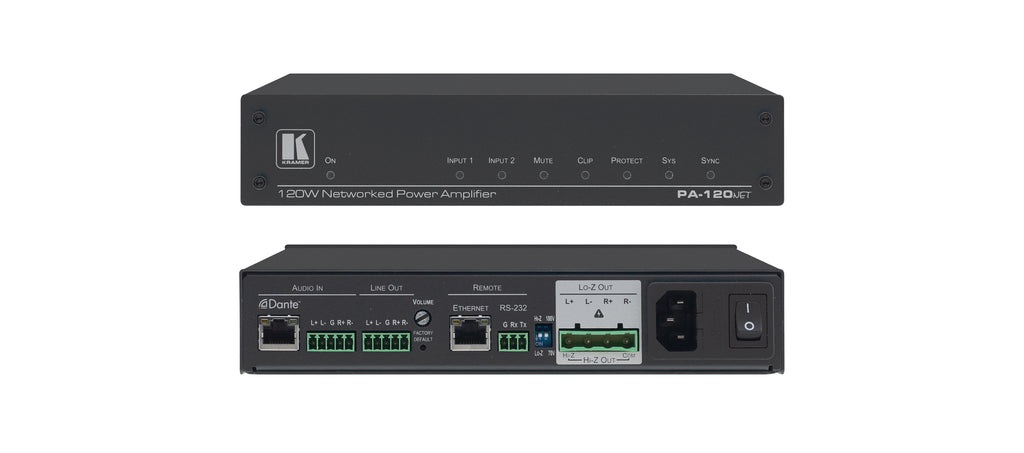

The Kramer PA-120Net is a high-performance 120W networked power amplifier engineered for modern AV installations requiring flexibility, reliability, and pristine audio quality. Designed with selectable Hi-Z (70V/100V) and Lo-Z (4Ω/8Ω) operation, it delivers either a single 120W channel for distributed audio or dual 60W channels for low-impedance loudspeakers—making it ideal for corporate, education, hospitality, and commercial sound environments.
Built-in DSP, Dante™ audio networking, and AES67 support allow seamless integration into IP-based audio infrastructures, while advanced 32-bit digital-analog conversion ensures studio-grade sonic performance. Each output features independent mixing, 3-band EQ, and high-pass filtering to fine-tune audio for any venue.
Engineered for long-term reliability, PA-120Net includes multi-layer protection, intelligent thermal management, and highly efficient Class-D amplification with auto-standby for reduced power consumption. Control is simple and flexible via RS-232 or embedded web interface over Ethernet. Its compact half-19" form factor allows easy installation and cost-effective system expansion.
| Category | Details |
|---|---|
| Amplifier Power | 2 × 60W @ 4Ω/8Ω, or 1 × 120W @ 70V/100V |
| Amplifier Class | Class D |
| Frequency Response | 20Hz–20kHz @ ±1dB |
| Dynamic Range | 119dB |
| S/N Ratio | 80dB (20Hz–20kHz) |
| THD+N | 0.003% (1kHz @ 1W) |

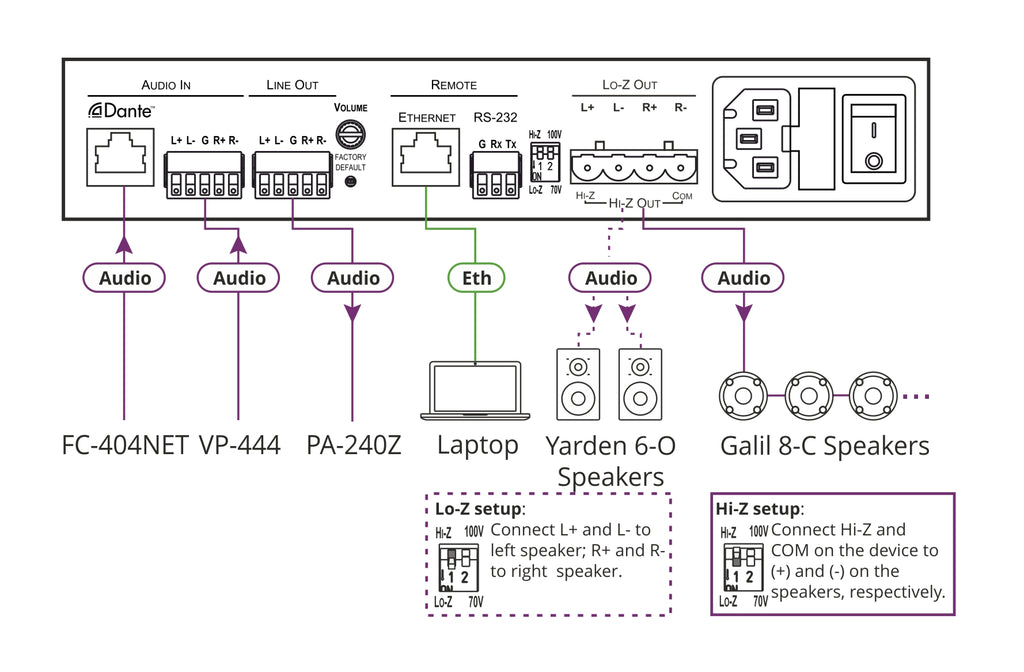

| Inputs | 2-channel Dante™ (RJ-45), 1 × balanced stereo (+4dBu/10kΩ, 5-pin terminal block) |
| Outputs | 1 × balanced stereo line-level (5-pin terminal block), 1 × speaker output (4-pin terminal block) |
| Control Ports | RS-232 (3-pin terminal), IP/Ethernet (RJ-45) |
| Max Voltage Gain | 26dB SE / 32dB BTL |
| Input Sensitivity | Full power @ 0.3V (-10dBV) |
| Digital Audio | Dante™, AES67 compatible; sampling rates up to 96 kHz |
| Cooling | Intelligent fan ventilation |
| Power Source | 85–265V AC universal mains |
| Power Consumption | 150VA |
| Total System Efficiency | 89% |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | −40°C to +70°C (−40°F to 158°F) |
| Humidity | 10%–90% non-condensing |
| Regulatory Compliance | CE, FCC, RoHS, WEEE |
| Enclosure | ½ 19" desktop, aluminum |
| Dimensions (W × D × H) | 21.46 × 16.30 × 4.36 cm (8.45" × 6.42" × 1.72") |
| Product Weight | 1.1 kg (2.3 lbs) |
| Included Accessories | Power cord |
