NEC LED-FA009I2-165IN | 165" FA Series UHD LED kit (includes installation) NEC

Roll over image to zoom in Click on image to zoom

NEC LED-FA009I2-165IN | 165" FA Series UHD LED kit (includes installation)

Name: NEC LED-FA009I2-165IN | 165" FA Series UHD LED kit (includes installation)
Brand: NEC
SKU: LED-FA009I2-165IN
Price: 244999.0 USD
Availability: InStock

NECSKU: LED-FA009I2-165IN

Price:

$244,999.00

For purchases above $5,000, please request a formal quote. Orders are payable via Wire Transfer only. Quotes include lead time and shipping. Leasing and financing available for qualified business customers.

Shipping calculated at checkout

Stock:

Only 0 units left

Quantity:

Free Standard Shipping

⚙️ Authorized Pro AV Dealer
All products are brand-new and factory-sealed with full manufacturer warranty.

💬 Need pricing or availability confirmation?
Chat with us using the button below — or call (800) 283-7181 to speak directly with an AV expert.

Share this product

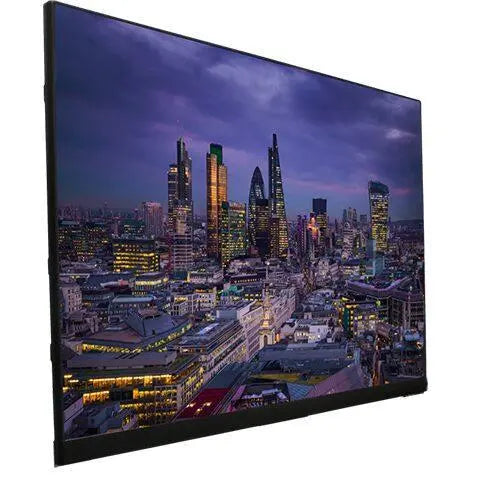

165” diagonal screen size
UHD (3840x2160) resolution with a refresh rate of >= 3840 Hz

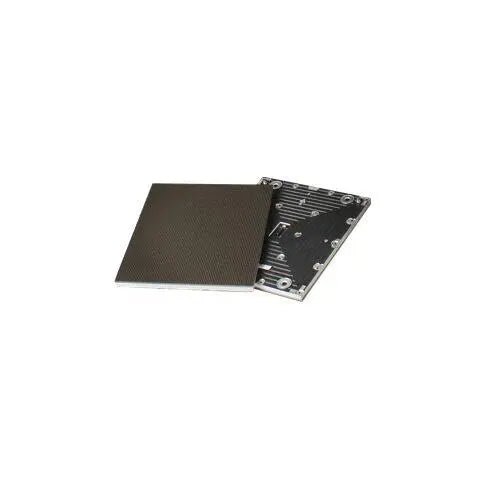

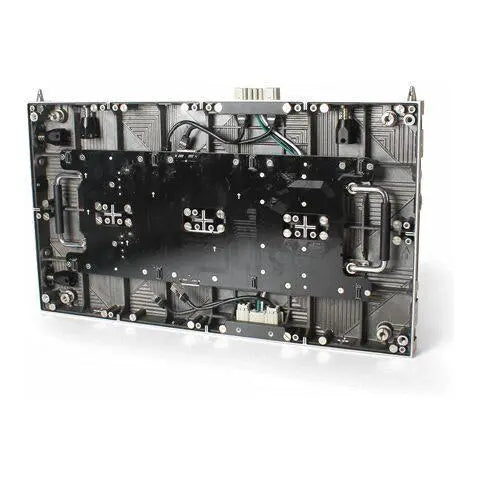

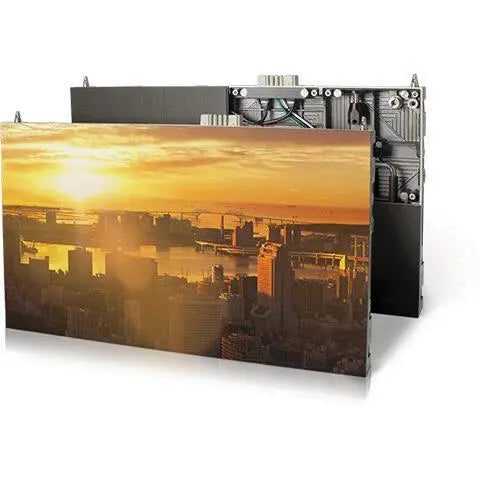

Kit includes everything needed for an LED installation including the LED modules, power bar, dual controllers, mounting structure, overframe kit as well as spare parts and a pixel card removal tool
Built in data and power redundancy ensuring the display remains operational in the event of a single controller of power supply failure

Product Specifications

Display

Panel Technology	Direct View LED	Aspect Ratio	16:9
Native Resolution	3840x2160	Module Resolution	640 x 360
Pixel Configuration	4-1 SMD (Black)	Pixel Pitch	0.95 mm
Brightness (typical)	600 cd/m²	Brightness (maximum)	660 cd/m²
Contrast Ratio (typical)	5000:1	Viewing Angle (typical)	70/70 horizontal / 70/70 vertical
Refresh Rate	Up to 3840 Hz	Active Screen Area	143.4 x 81 in. / 3648 x 2052 mm
Orientation	Landscape	Dimming Capability	256 levels
Color Processing	Up to 16 bit	Displayable Colors	281 Trillion
Color Temperature (Max) (°K)	3000	Color Temperature (Typical) (°K)	6500
Color Temperature (Min) (°K)	9500	Gamma (Max)	4.0
Gamma (Typical)	2.8	Gamma (Min)	1.0
Lifetime	100,000 hours

Signal Compatibility/Connectivity

External Control	1 x GenLock; 1 x LAN	Input Terminals Digital: 1 x 3G SDI; 1 x DVI-D; 1 x HDMI

Power Consumption (typical)

On	2700Watts	Power Consumption (max)	5040 Watts

Physical Specifications

Dimensions (WxHxD) Without stand: 143.4 x 85.5 x 3.2 in. / 3648 x 2172 x 81 mm		Weight Net Weight (without stand): 698.4 lbs. / 316.8 kg. Shipping: 974.5 lbs / 442 kg Servicability: Front Service IP Level: IP20 Certifications: CCC CE ETL FCC Class A RoHS

Environmental Conditions

Operating Temperature	-4° to 104°F / -20° to 40°C	Operating Humidity	10% to 80%
Storage Temperature	-4° to 113°F / -20° to 45°C	Storage Humidity	10% to 85%
Environment	Indoor

Limited Warranty (parts & labor)

3 years

Accessories

Included	Controller Mounting Frame Ambient Light Sensor	Optional	Power Box with remote On/Off Control Control PC 19" Rack See NEC Representative for additional accessories
