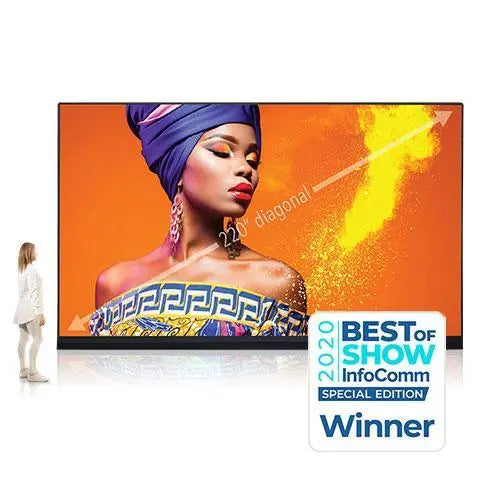

NEC LED-FA012I2-220| 220" FA-Series UHD LED Kit NEC

Roll over image to zoom in Click on image to zoom

NEC LED-FA012I2-220| 220" FA-Series UHD LED Kit

Name: NEC LED-FA012I2-220| 220" FA-Series UHD LED Kit
Brand: NEC
SKU: LED-FA012i2-220
Price: 250999.0 USD
Availability: InStock

NECSKU: LED-FA012i2-220

Price:

$250,999.00

For purchases above $5,000, please request a formal quote. Orders are payable via Wire Transfer only. Quotes include lead time and shipping. Leasing and financing available for qualified business customers.

Shipping calculated at checkout

Stock:

Only 0 units left

Quantity:

Free Standard Shipping

⚙️ Authorized Pro AV Dealer
All products are brand-new and factory-sealed with full manufacturer warranty.

💬 Need pricing or availability confirmation?
Chat with us using the button below — or call (800) 283-7181 to speak directly with an AV expert.

Share this product

220” diagonal screen size
UHD (3840x2160) resolution with a refresh rate of >= 3840 Hz
Kit includes everything needed for an LED installation including the LED modules, power bar, dual controllers, mounting structure, overframe kit as well as spare parts and a pixel card removal tool
Built in data and power redundancy ensuring the display remains operational in the event of a single controller of power supply failure

Product Specifications

Display

Panel Technology	Direct View LED	Viewable Image Size	220 in.
Aspect Ratio	16:9	Native Resolution	3840x2160
Module Resolution	480 x 270	Pixel Configuration	3-1 SMD (Black)
Pixel Pitch	1.26 mm	Brightness (typical)	700 cd/m2
Brightness (maximum)	770 cd/m2	Contrast Ratio (typical)	5000:1
Viewing Angle (typical)	80/80 horizontal / 80/80 vertical	Refresh Rate	Up to 3840 Hz
Active Screen Area	191.2 x 108 in. / 4864 x 2736 mm	Orientation	Landscape
Dimming Capability	256 levels	Color Processing	Up to 16 bit
Displayable Colors	281 Trillion	Color Temperature (Max) (°K)	9500
Color Temperature (Typical) (°K)	6500	Color Temperature (Min) (°K)	3000
Gamma (Max)	4.0	Gamma (Typical)	2.8
Gamma (Min)	1.0	Lifetime	100,000 hours

Signal Compatibility/Connectivity

External Control	1 x GenLock; 1 x LAN	Input Terminals Digital: 1 x 3G SDI; 1 x DVI-D; 1 x HDMI External Control: RS232 / USB

Power Consumption (typical)

On	3648Watts	Power Consumption (max)	8000 Watts

Physical Specifications

Dimensions (WxHxD) Without stand: 193.1 x 112.4 x 3.2 in. / 4904 x 2856 x 81 mm		Weight Net Weight (without stand): 1053.8 lbs. / 478 kg. Shipping: 1453.3 lbs / 659.2 kg Servicability: Front Service IP Level: IP20 Certifications: CCC CE ETL FCC Class A RoHS

Environmental Conditions

Operating Temperature	-4° to 104°F / -20° to 40°C	Operating Humidity	10% to 80%
Storage Temperature	-4° to 113°F / -20° to 45°C	Storage Humidity	10% to 85%
Environment	Indoor

Limited Warranty (parts & labor)

3 years

Accessories

Included	Controller Mounting Frame Ambient Light Sensor	Optional	Power Box with remote On/Off Control Control PC 19" Rack See NEC Representative for additional accessories
