Description

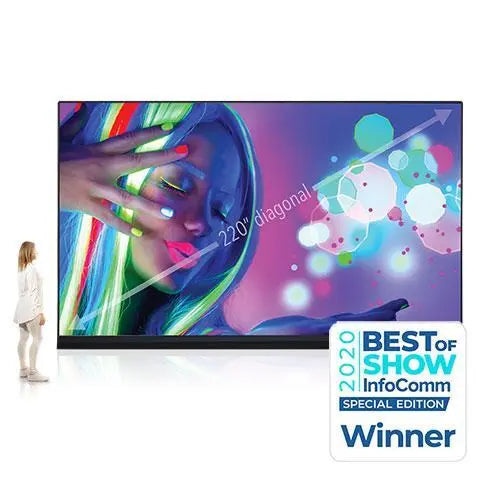

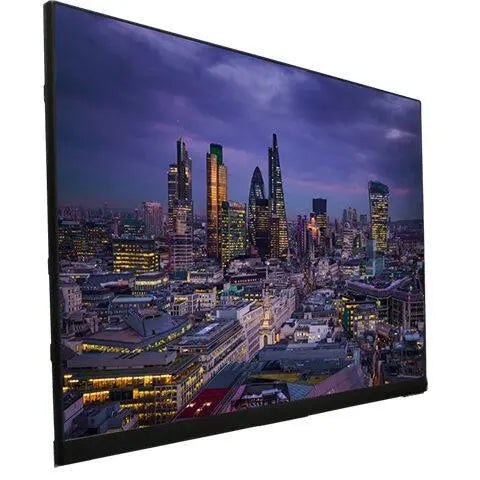

- 220” diagonal screen size
- FHD (1920x1080) resolution with a refresh rate of >= 3840 Hz
- Kit includes everything needed for an LED installation including the LED modules, power bar, dual controllers, mounting structure, overframe kit as well as spare parts and a pixel card removal tool
- Built in data and power redundancy ensuring the display remains operational in the event of a single controller of power supply failure
- Pixel Pitch 2.5 mm
- 2x LED Controller

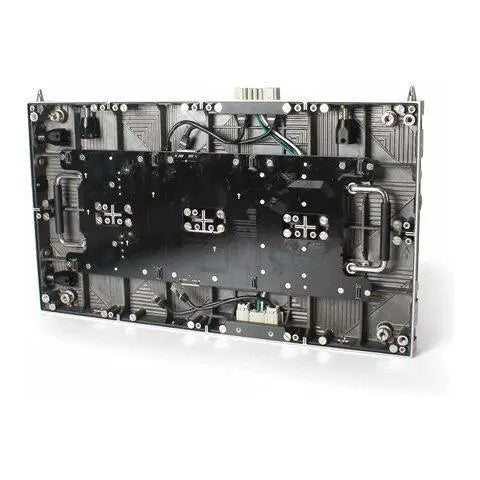

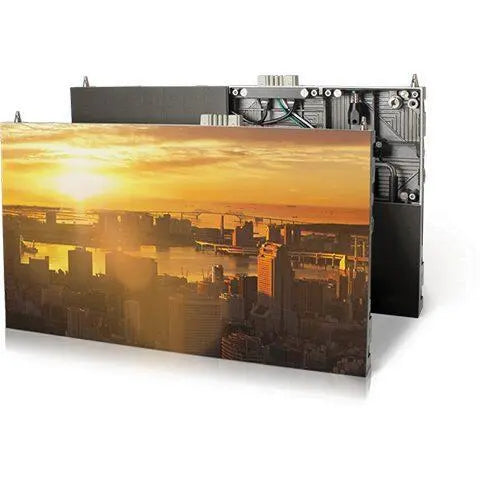

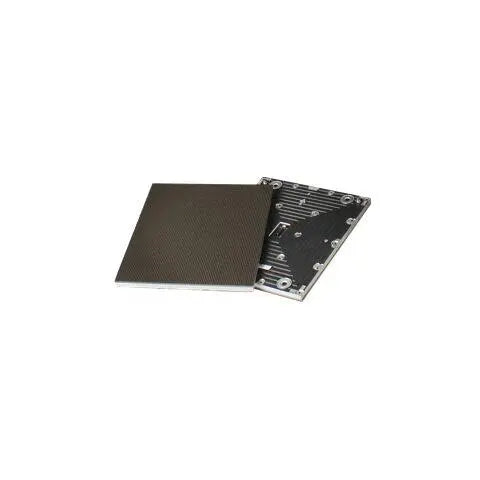

- LED Modules (64 Cabinets, 256 Pixel Cards)
- Overframe Kit (8x8)
- Pixel Card Removal Tool
- Power Bar; Spare Parts Kit
- Wall mount (8x8)
- Control PC
- Monitor
- Keyboard
- Mouse
Display
| Panel Technology | Direct View LED | Aspect Ratio | 16:9 |
| Native Resolution | 1920x1080 | Module Resolution | 240 x 135 |
| Pixel Configuration | 3-1 SMD (Black) | Pixel Pitch | 2.5 mm |
| Brightness (maximum) | 1200 cd/m2 | Contrast Ratio (typical) | 7000:1 |
| Viewing Angle (typical) | 80/80 horizontal / 70/70 vertical | Refresh Rate | Up to 3840 Hz |
| Active Screen Area | 191.2 x 108 in. / 4864 x 2736 mm | Orientation | Landscape |
| Dimming Capability | 256 levels | Color Processing | Up to 16 bit |
| Displayable Colors | 281 Trillion | Color Temperature (Max) (°K) | 9500 |
| Color Temperature (Typical) (°K) | 6500 | Color Temperature (Min) (°K) | 3000 |
| Gamma (Max) | 4.0 | Gamma (Typical) | 2.8 |
| Gamma (Min) | 1.0 | Lifetime | 100,000 hours |
