Description

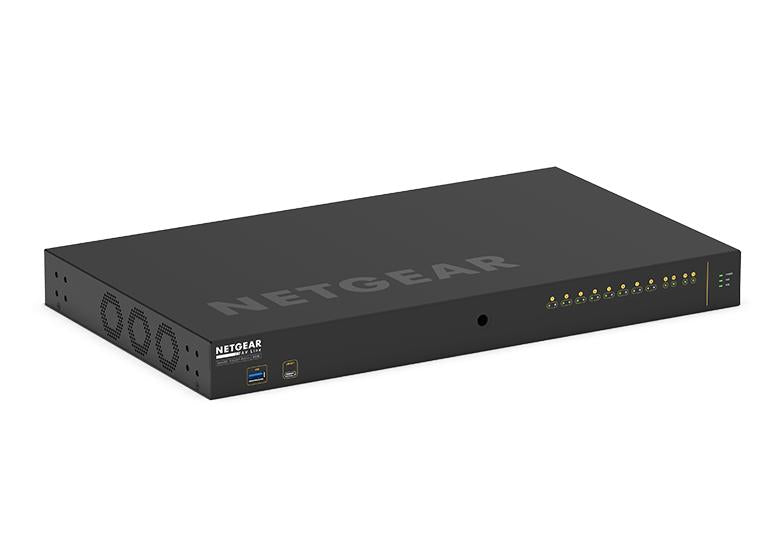

The NETGEAR M4250 AV Line GSM4212UX-100NAS is purpose-built for professional AV over IP deployments, delivering high-performance switching with advanced PoE++ capabilities. Designed with input from AV integrators, this managed switch simplifies installation and operation with pre-configured AV profiles, enabling seamless connectivity for encoders, decoders, and control systems with minimal setup.
Equipped with Ultra90 PoE++ support, the switch delivers up to 720W total power budget, making it ideal for powering high-demand AV endpoints such as PTZ cameras, displays, and audio systems. With multi-gig uplink flexibility including 10G SFP+ ports, it ensures reliable bandwidth for high-resolution video distribution and large-scale AV networks.
Its intuitive AV-focused web interface allows for easy configuration and monitoring, while advanced Layer 2 and Layer 3 features provide enterprise-grade security, traffic management, and scalability. Built for quiet operation and flexible rack integration, the M4250 series ensures dependable performance in both studio and enterprise environments.
| Specification | Details |
|---|---|
| Switch Series | NETGEAR M4250 AV Line |
| Form Factor | 1U Rackmount |
| Switching Capacity | 60 Gbps |
| Throughput | 44.64 Mpps |
| Ports | 8 x 10/100/1000BASE-T RJ45 |
| Uplink Ports | 2 x 1G RJ45, 2 x 1G/10G SFP+ |
| PoE Capability | Ultra90 PoE++ (802.3bt) |
| Total PoE Budget | Up to 720W |
| Supported PoE Levels | 15.4W, 30W, 60W, 75W, 90W per port |
| AV Optimization | Pre-configured AV profiles for audio and video over IP |
| AV Protocol Support | Dante, Q-SYS, AES67, AVB (license required), NVX, SVSI, NDI, SDVoE, and more |
| Management Interface | AV web GUI and standard IT web GUI |
| Network Management | SNMP, RMON, sFlow, CLI, Web UI |
| Layer Support | Advanced Layer 2 and Layer 3 switching |
| Routing Features | Static routing, RIP, multicast routing (PIM-SM, DM, SSM) |
| Security Features | DHCP Snooping, IP Source Guard, DoS protection |
| VLAN Support | Static, dynamic, voice VLANs |
| Link Aggregation | LACP (802.3ad / 802.1AX) |
| QoS Features | Advanced traffic prioritization and classification |
| Cooling | Software-controlled fans with quiet operation modes |
| Mounting Options | Rackmount with reversible orientation |
| Power Supply | Internal fixed PSU |
| Warranty | Limited Lifetime Hardware Warranty |
| Technical Support | Lifetime online support with next business day replacement |
