Description

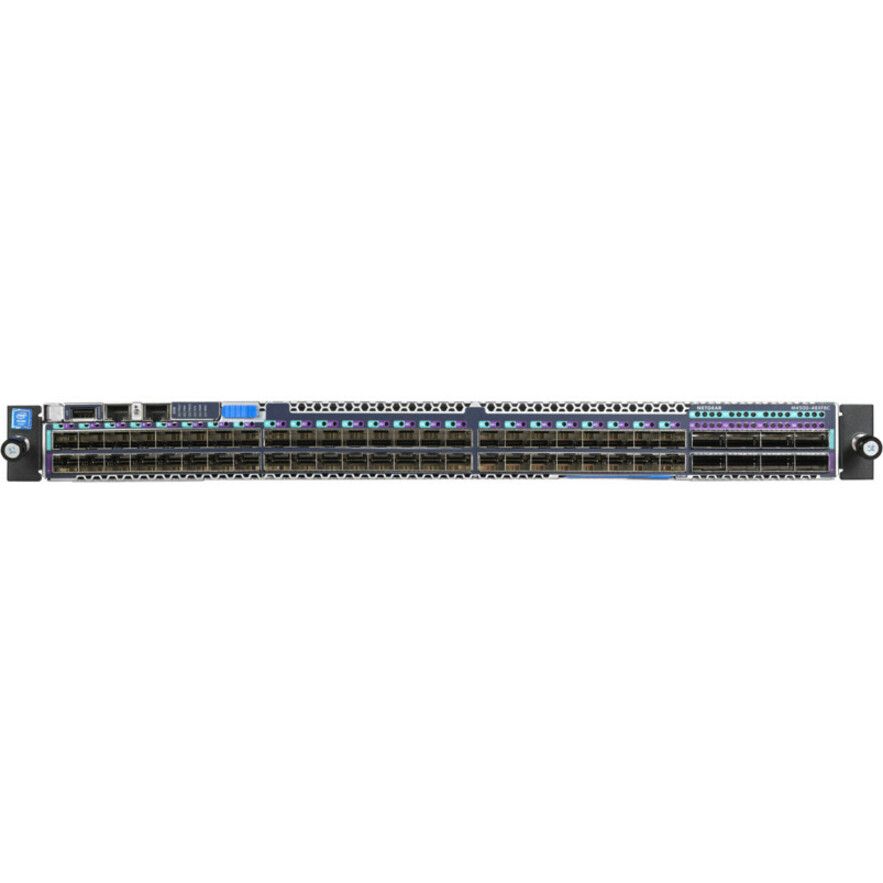

The NETGEAR M4500-48XF8C (XSM4556-100NAS) is a high-performance, 100G-enabled managed switch engineered for modern AV-over-IP and enterprise network infrastructures. Designed to deliver seamless scalability and ultra-low latency, this switch combines 48 SFP28 fiber ports supporting 1G, 10G, and 25G speeds with 8 QSFP28 uplinks capable of up to 100G connectivity.
Purpose-built for demanding environments such as Pro AV deployments, data centers, and large-scale enterprise networks, the M4500 series simplifies complex architectures with preconfigured multicast and Zero Touch AV-over-IP capabilities. Its intelligent IGMP Plus functionality enables efficient Layer 2 multicast without the need for complex Layer 3 routing, making it ideal for scalable and high-density network designs.
With advanced Layer 3 features, redundant power and cooling, and industry-standard management protocols, the M4500-48XF8C ensures continuous uptime, flexible deployment, and reliable performance across mission-critical applications.
| Specification | Details |
|---|---|
| Switch Type | Managed Layer 2/Layer 3 Switch |
| Series | NETGEAR M4500 |
| Port Configuration | 48 x SFP28 (1G/10G/25G), 8 x QSFP28 (40G/50G/100G) |
| Switching Capacity | 4 Tbps non-blocking fabric |
| Throughput | 2 Billion packets per second |
| Latency | As low as ~0.117µs (25G) |
| Multicast Support | IGMPv1/v2/v3, IGMP Plus, MLDv1/v2 |
| Routing Capabilities | Static, OSPFv3, BGP4, VRRP, PIM-SM/SSM, VRF-Lite |
| VLAN Support | Up to 4,093 VLANs (IEEE 802.1Q) |
| Link Aggregation | Up to 64 LAGs, MLAG support |
| Processor | Intel Atom C3558 |
| Memory | 8GB DDR3 ECC RAM |
| Storage | 128GB SSD |
| Packet Buffer | 256 MB shared |
| Redundancy | Dual hot-swappable power supplies (1+1), 6 fan trays (4+2) |
| Management Interfaces | CLI, SNMP, SSH, sFlow, RSPAN |
| Out-of-Band Management | 1 x Gigabit Ethernet port |
| Console Port | RJ45 RS232 |
| USB Port | Yes (front) |
| Security Features | DHCP Snooping, Dynamic ARP Inspection, IP Source Guard |
| QoS Features | 8 queues per port, DiffServ, CoS |
| Form Factor | 1U Rack Mount |
| Cooling | Front-to-back airflow |
| Power Consumption | Up to 394W |
| Operating Temperature | 0°C to 50°C |
| Warranty | Limited Lifetime Hardware Warranty |
