Description

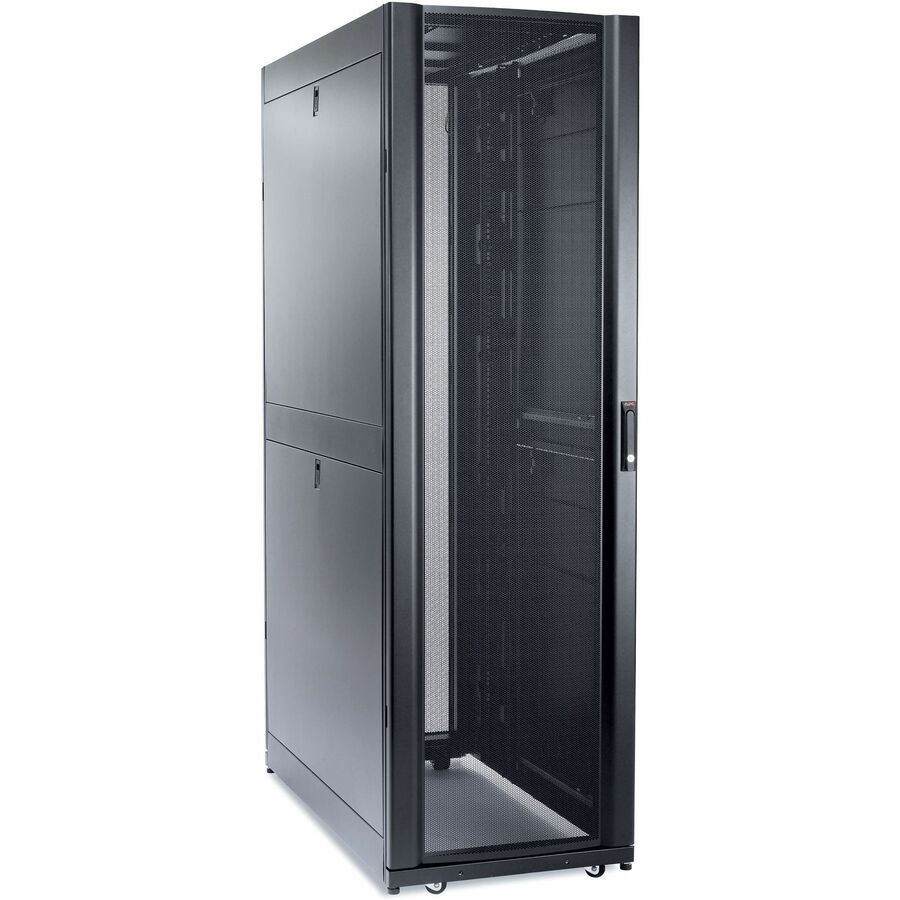

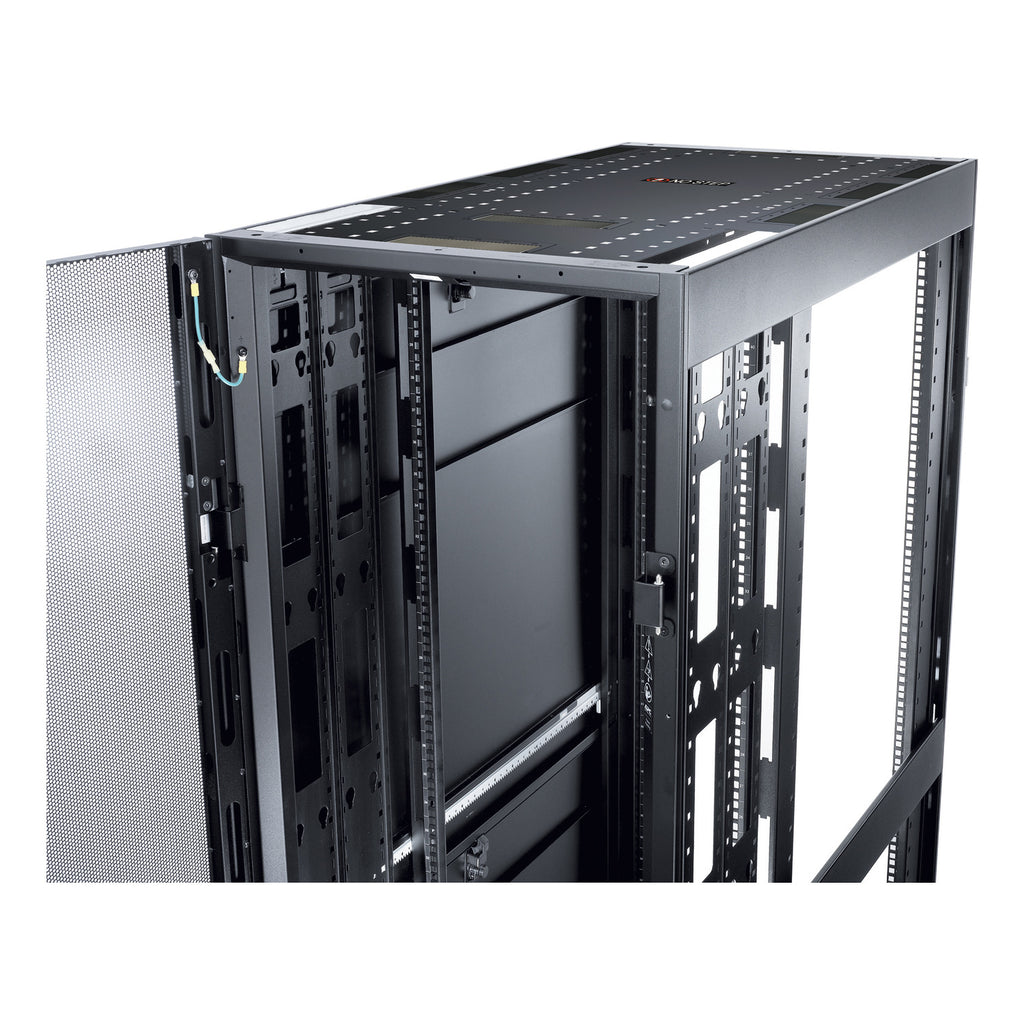

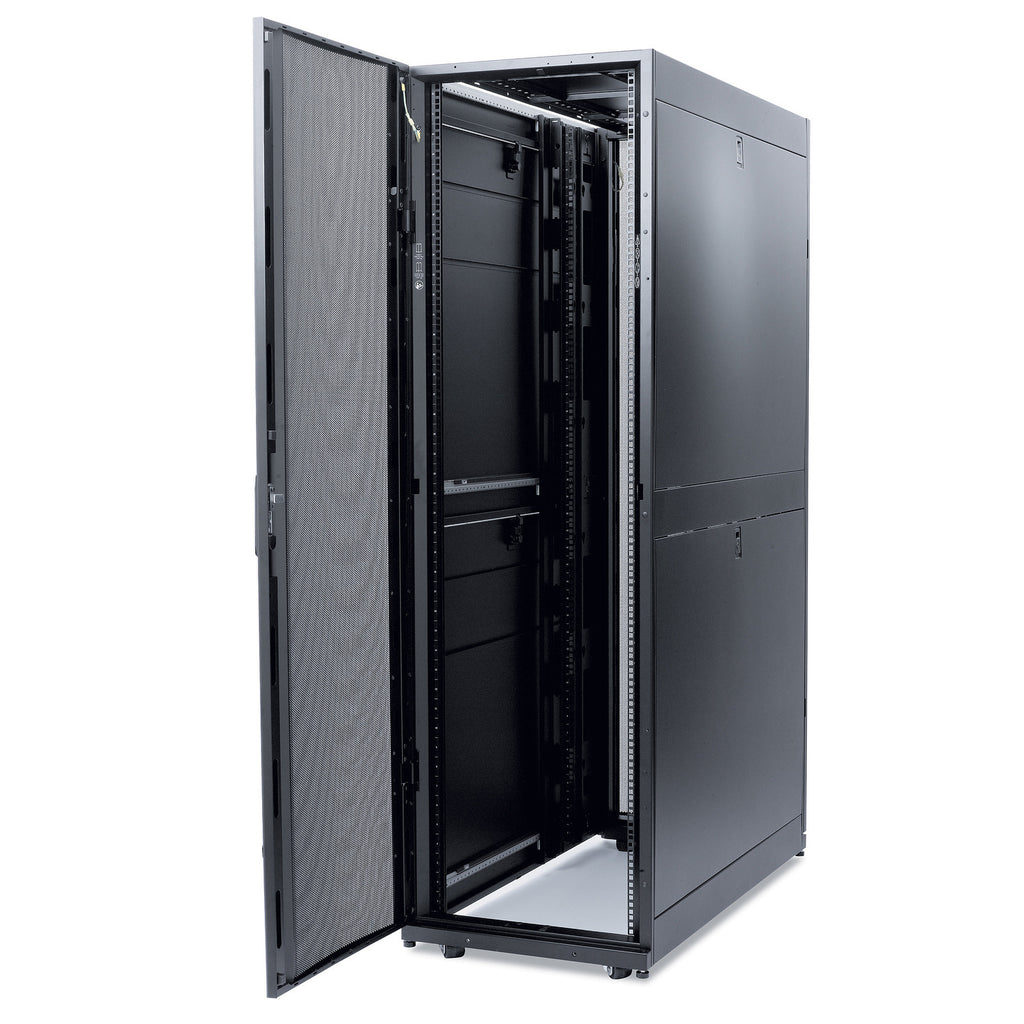

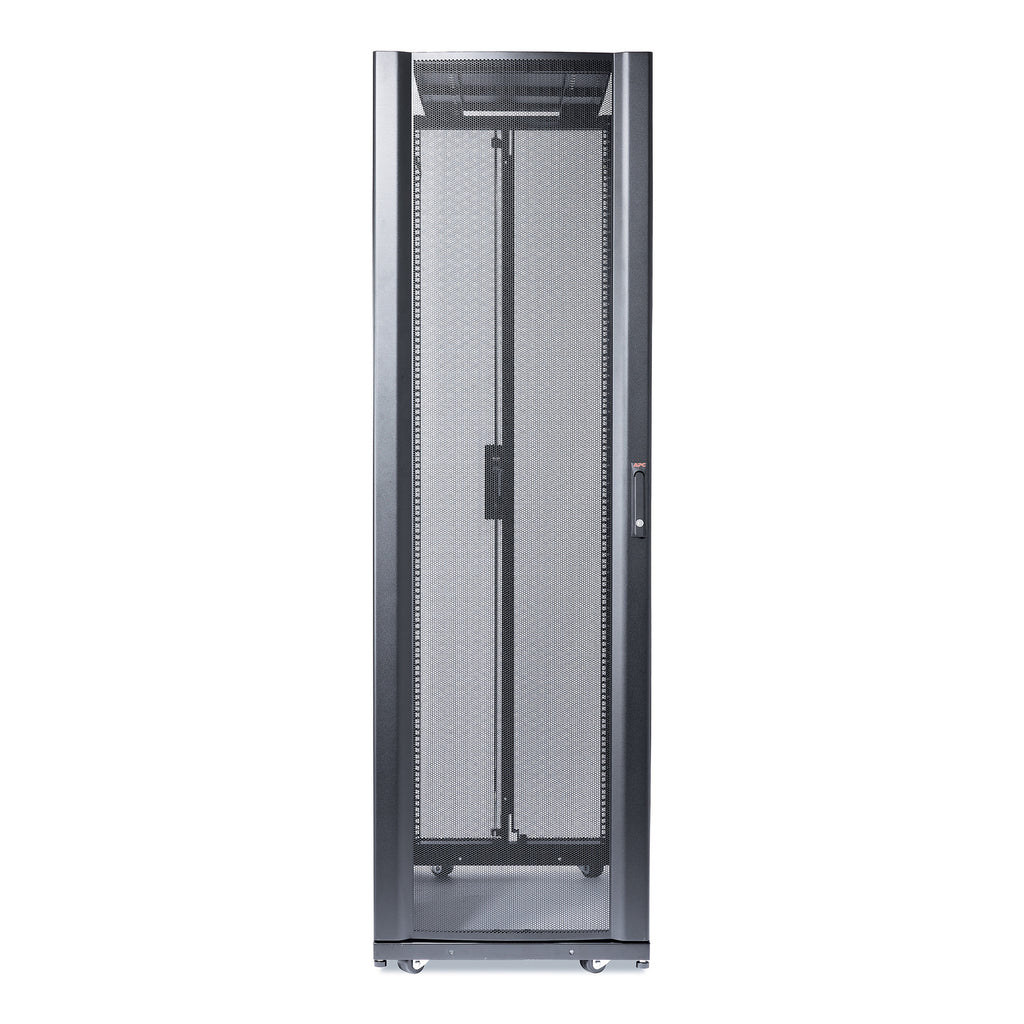

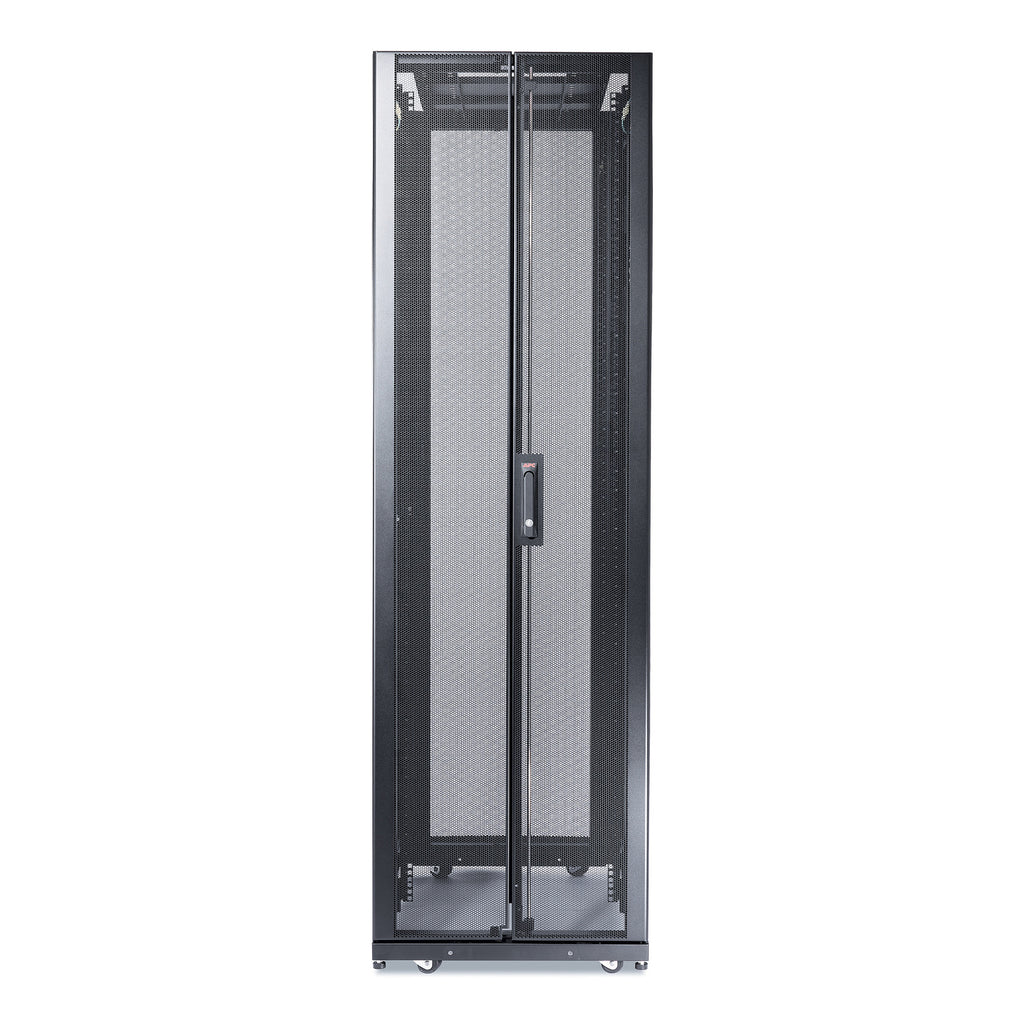

The APC NetShelter SX AR3300 is a deep universal IT enclosure designed for low to high-density server and networking applications. Its 42U height fits easily through standard doorways, making deployment simple. The compact 600mm width helps maximize data center floor space, while the 1200mm depth offers generous room for even the deepest equipment. Ideal for high-density environments, this enclosure supports vertical Rack PDUs and efficient cable management without interfering with hot-swappable IT components.
| Category | Details |
|---|---|
| Overview | |
| Lead Time | Usually in Stock |
| Main | |
| Product or Component Type | Rack Enclosure |
| Number of Rack Units | 42U |
| Provided Equipment | Baying hardware, Keyed-alike doors and side panels, Leveling feet, Mounting hardware, Pre-installed casters, Side panels |
| Physical | |
| Height | 78.39 in (199.1 cm) |
| Width | 23.62 in (60 cm) |
| Depth | 47.24 in (120 cm) |
| Product Weight | 295.62 lb (134.09 kg) |
| Color | Black |
| Mounting Preference | No preference |
| Mounting Mode | Not rack-mountable |
| Maximum Mounting Depth | 41.26 in (104.8 cm) |
| Minimum Mounting Depth | 7.50 in (19.05 cm) |
| Rack Width | 19" |
| Marking | 14-gauge EIA mounting rail, 16-gauge front door & post, 18-gauge rear door, roof, and side panels |
| Permissible Load | 2250 lb dynamic, 3750 lb static |
| Conformance | |
| Standards | UL 2416, UL 60950-1, EIA-310E |
| Ordering and Shipping | |
| GTIN | 731304256274 |
| Country of Origin | Thailand |
| Package 1 Type | PCE |
| Package 1 Dimensions (H x W x L) | 83.39 in x 29.61 in x 52.52 in |
| Package 1 Weight | 328.69 lb (149.09 kg) |
| Warranty | 5-year repair or replace |
