NETSHELTER SX 42U 750MM WIDE X 1070MM APC BY SCHNEIDER ELECTRIC
APC NetShelter SX 42U Networking Rack Enclosure, 1070mm Deep, Black [AR3140]
APC NetShelter SX 42U Networking Rack Enclosure, 1070mm Deep, Black [AR3140]
APC NetShelter SX 42U Networking Rack Enclosure, 1070mm Deep, Black [AR3140]
APC NetShelter SX 42U Networking Rack Enclosure, 1070mm Deep, Black [AR3140]
Roll over image to zoom in Click on image to zoom
NETSHELTER SX 42U 750MM WIDE X 1070MM APC BY SCHNEIDER ELECTRIC
APC NetShelter SX 42U Networking Rack Enclosure, 1070mm Deep, Black [AR3140]
APC NetShelter SX 42U Networking Rack Enclosure, 1070mm Deep, Black [AR3140]
APC NetShelter SX 42U Networking Rack Enclosure, 1070mm Deep, Black [AR3140]
APC NetShelter SX 42U Networking Rack Enclosure, 1070mm Deep, Black [AR3140]

APC NetShelter SX 42U Networking Rack Enclosure, 1070mm Deep, Black [AR3140]

Save $6,054.01
APCSKU: AR3140
QUANTUM Authorized
Google Top Quality Store
Price:
$0.99 $6,055.00

Shipping calculated at checkout

Stock:
In stock (22 units), ready to be shipped

Need this as part of a larger AV project? AVENDOR can help with sourcing, installation, support, and monthly payment options

Description

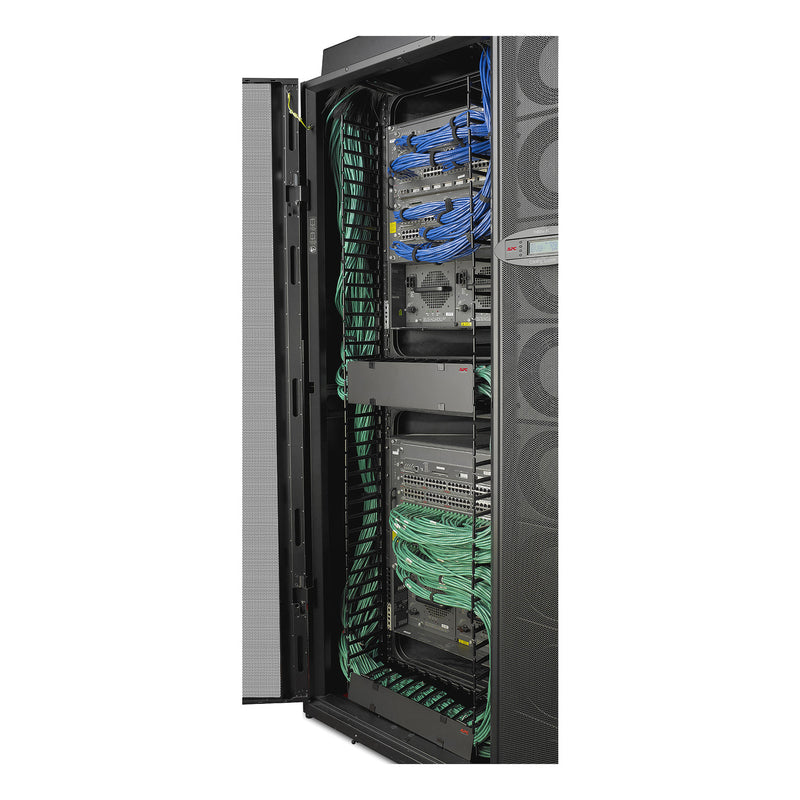

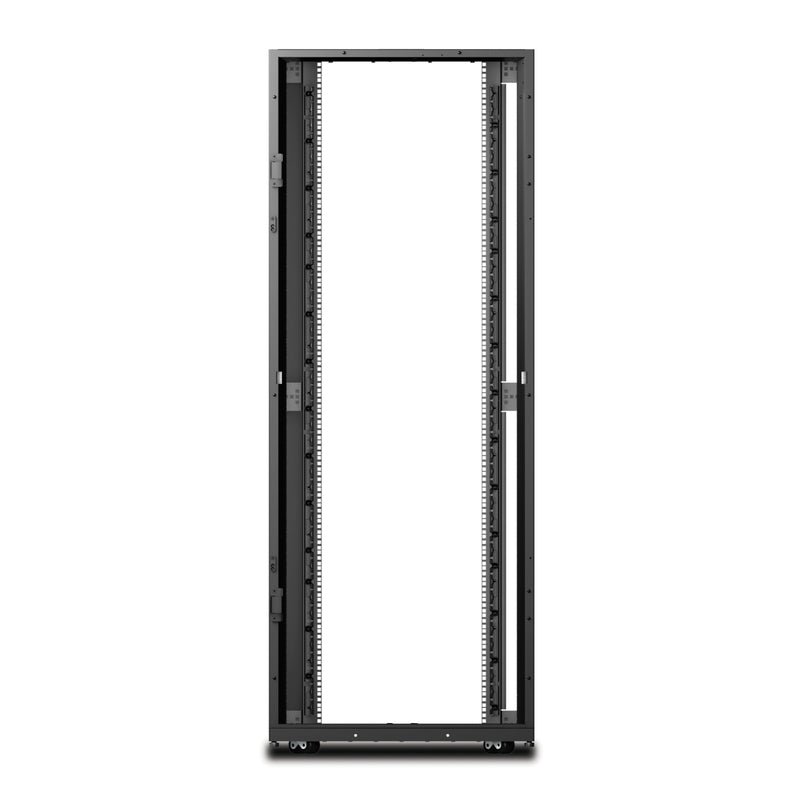

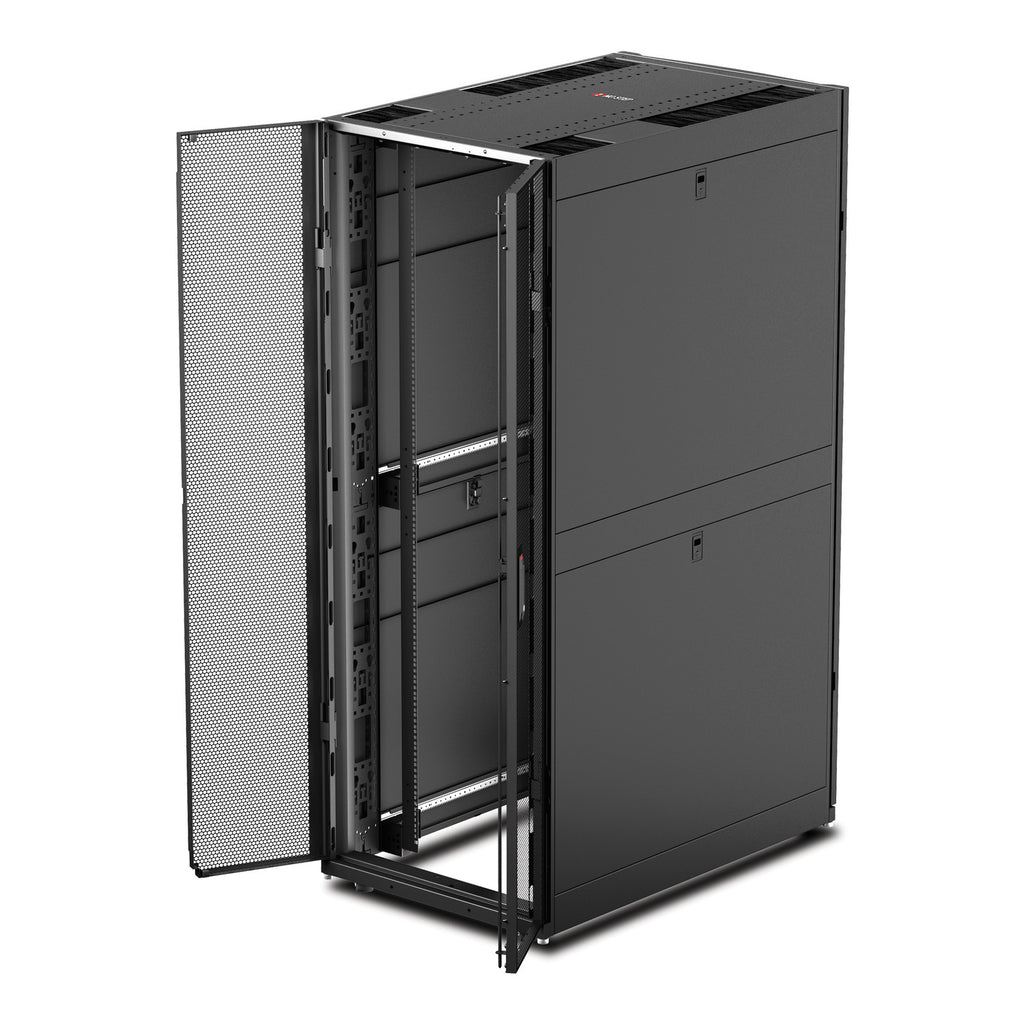

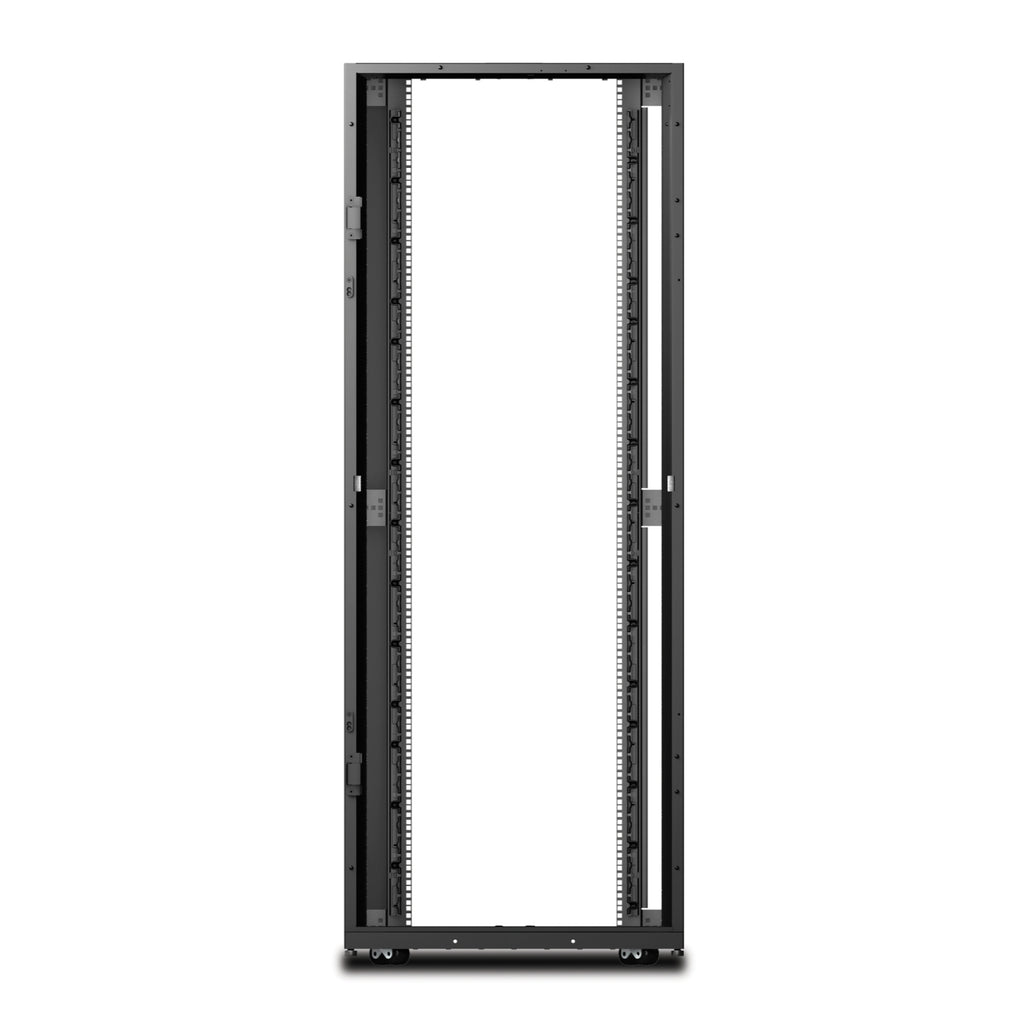

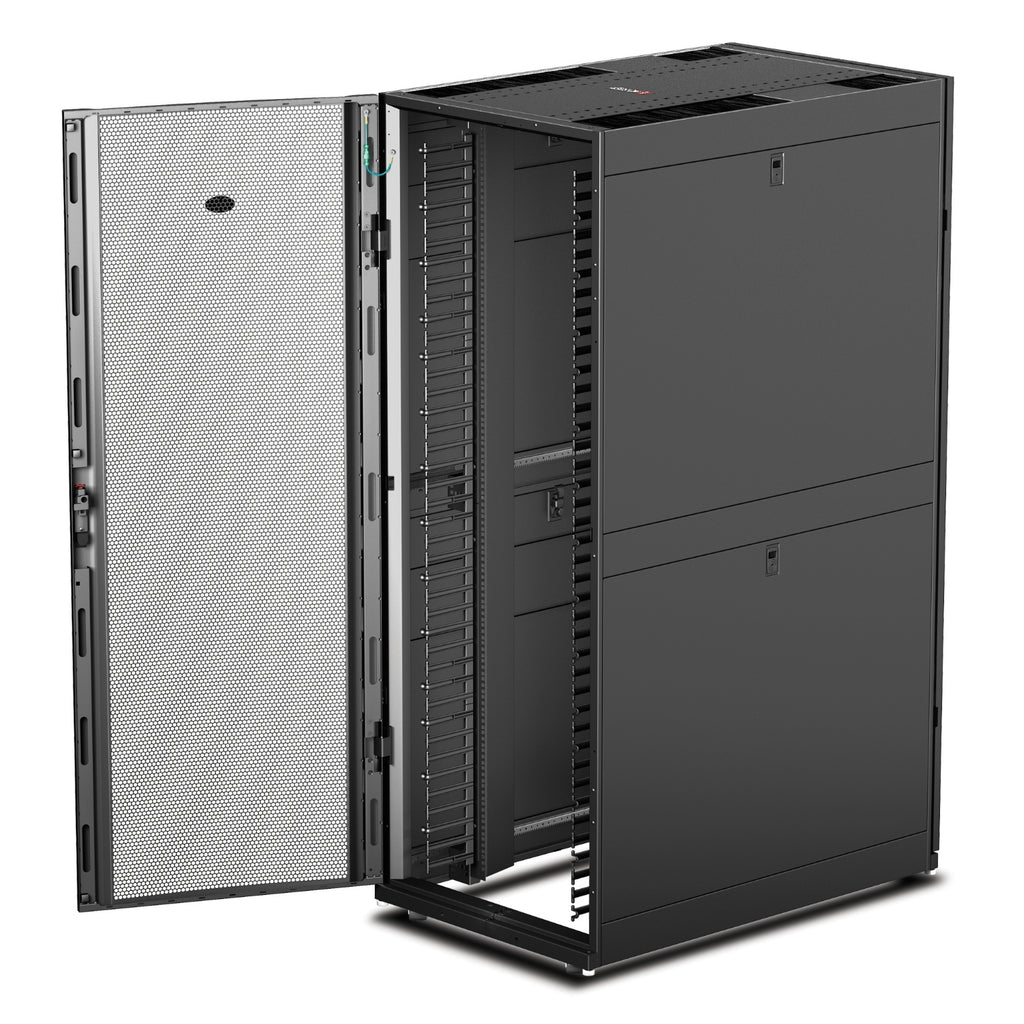

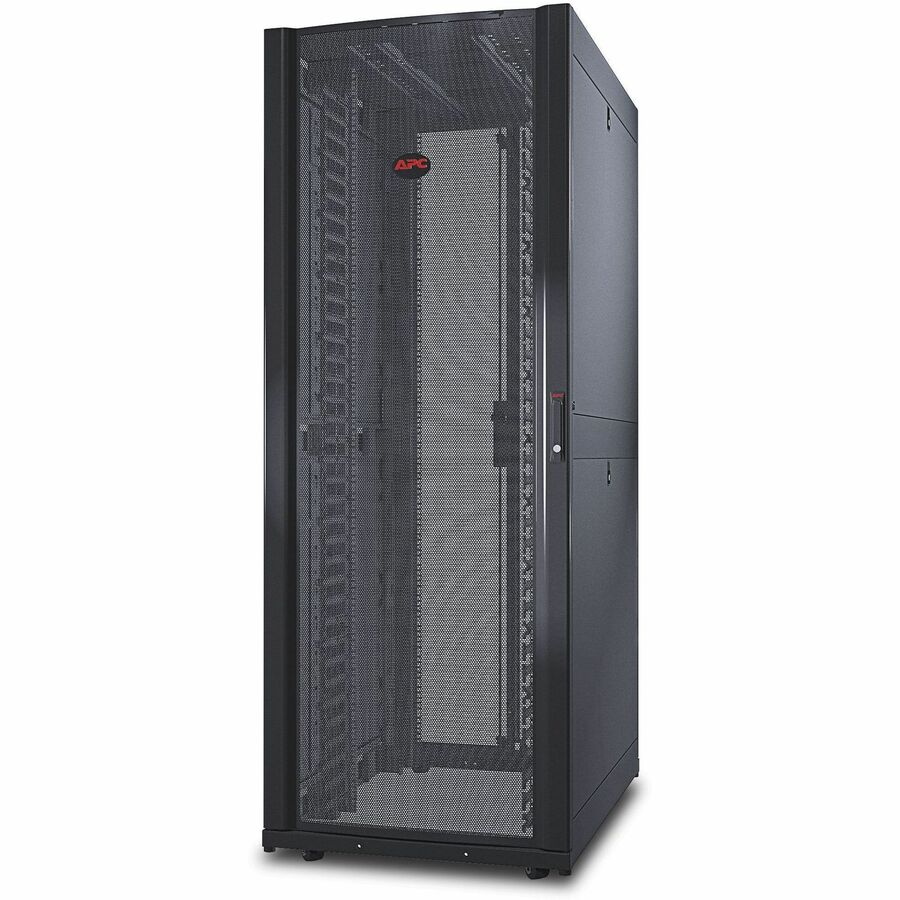

The APC NetShelter SX AR3140 is a 42U black networking rack enclosure designed to simplify high-density switch deployments in enterprise and data center environments. Engineered with large cable access openings, vertical cable managers, and support for front-to-rear or side airflow, this enclosure ensures optimal airflow management and fast, tool-less IT equipment integration. Its slim 750mm width and 1070mm depth allow it to pass through standard doorways and accommodate deep networking gear. Includes side panels, baying hardware, leveling feet, and pre-installed casters for easy setup and relocation. TAA compliant and backed by a 5-year warranty.

Category Details
Product Type Networking Rack Enclosure
Model AR3140
Rack Units (U) 42U
Color Black
Dimensions (HxWxD) 1991 x 750 x 1070 mm (78.39 x 29.53 x 42.13 in)
Weight 155.95 kg (343.81 lb)
Load Capacity 1701 kg static / 1020.6 kg dynamic
Rack Width 19" EIA standard
Mounting Depth Min: 279.4 mm (11 in), Max: 819.2 mm (32.25 in)
Included Accessories Baying hardware, leveling feet, mounting hardware, casters, side panels, keys, vertical cable managers
Airflow Design Supports front-to-rear or side-to-side airflow with optional duct kits
Material Construction Multiple gauge steel (14, 16, 18) for structure, doors, and panels
Compliance UL 2416, UL 60950-1, EIA-310E, TAA, BAA via COTS
Warranty 5-year repair or replace
Country of Origin Philippines
GTIN 731304275572
