Description

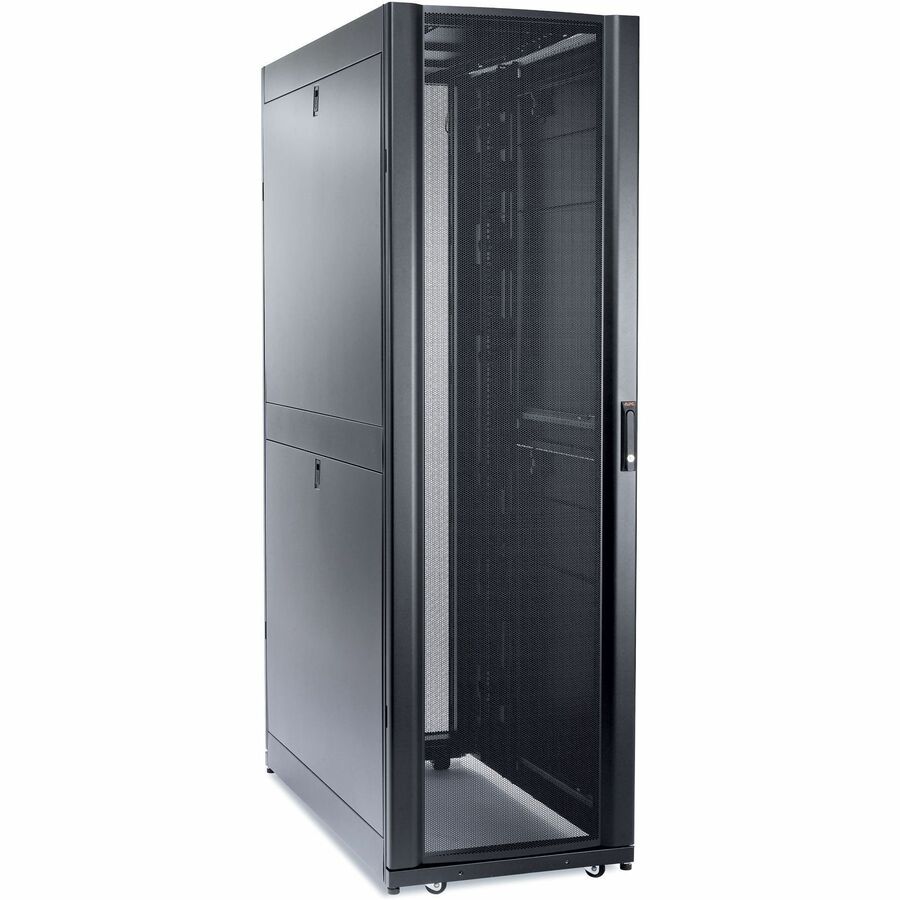

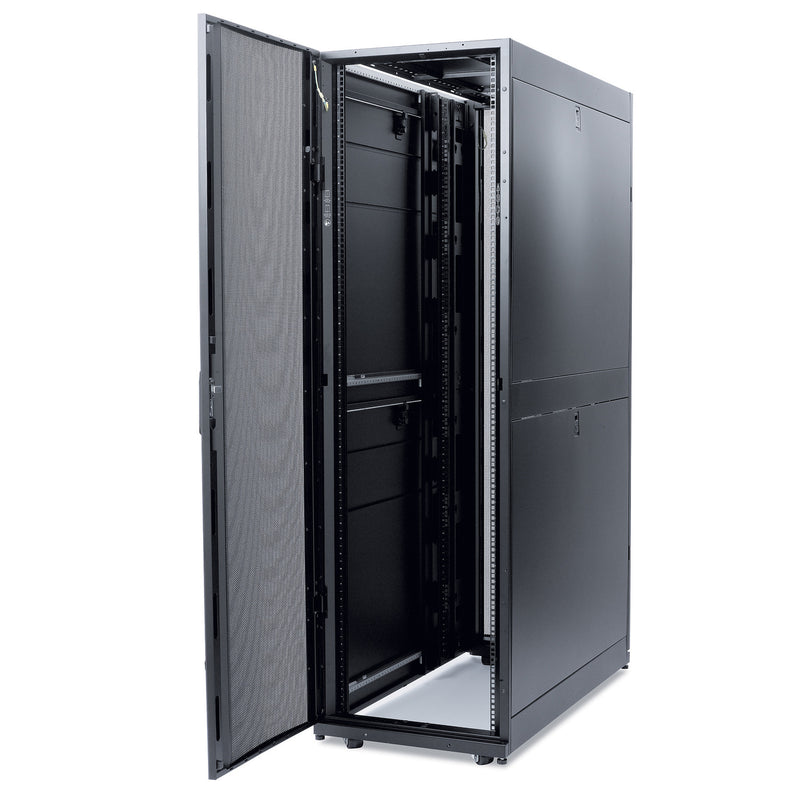

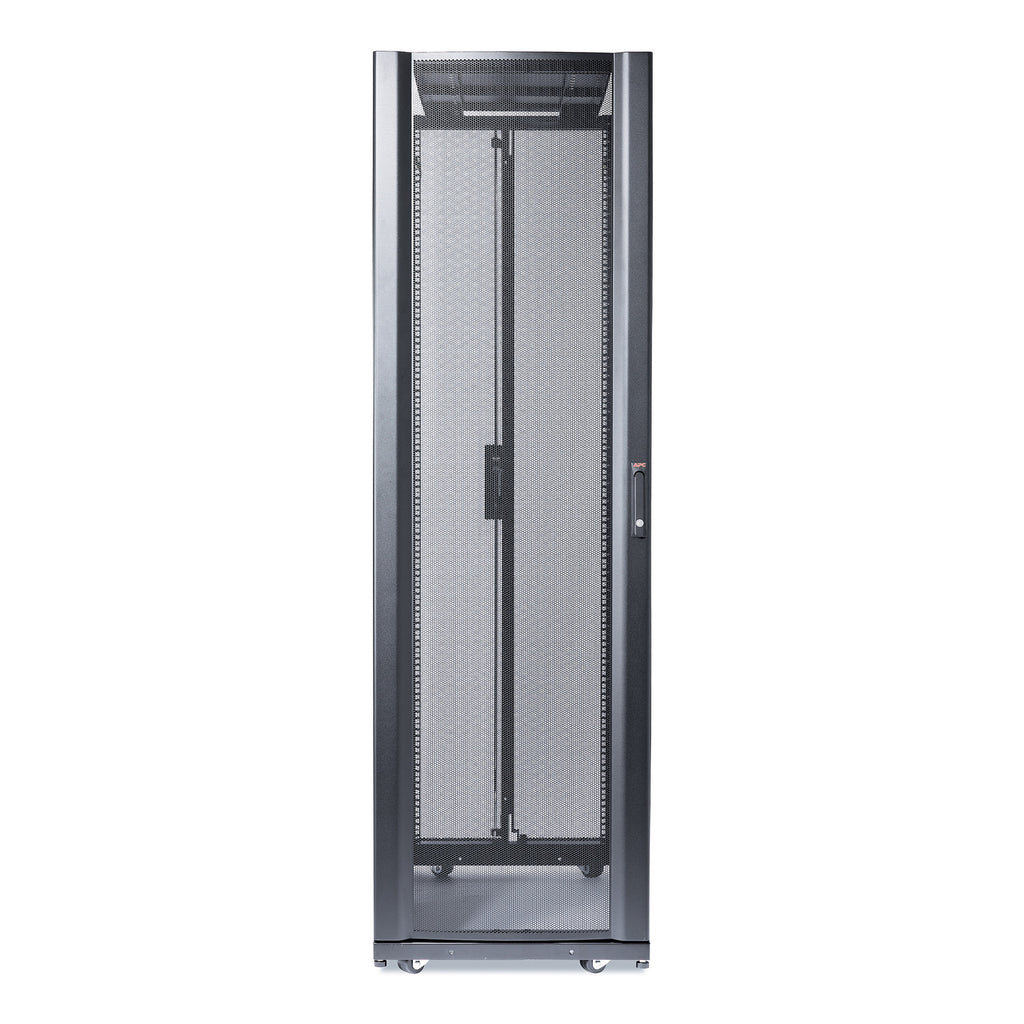

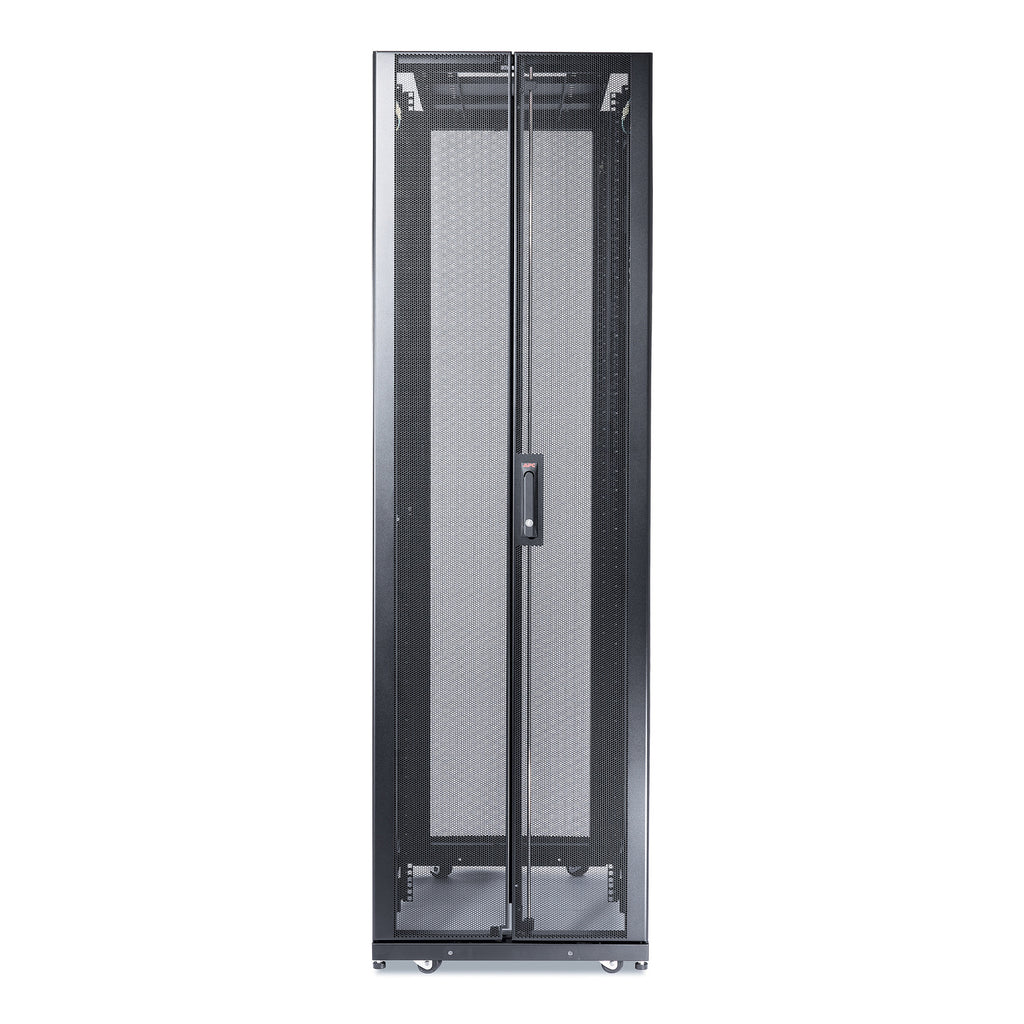

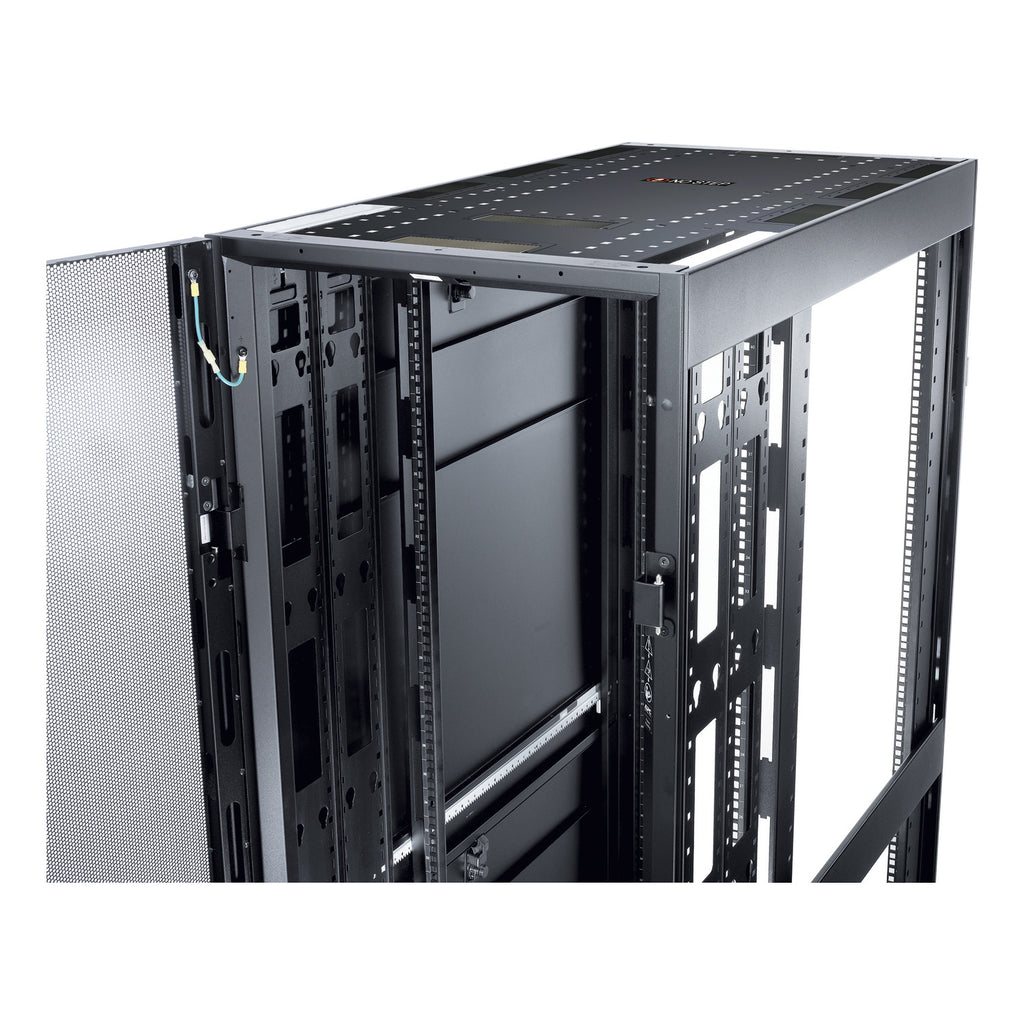

The APC NetShelter SX AR3305 is a 45U premium server rack enclosure designed for medium to high-density environments. Its 45U height offers an additional 3U of mounting space compared to standard 42U racks, maximizing usable space. With a 1200mm depth, it accommodates even the deepest IT equipment while providing ample room for vertical Rack PDUs and cable management. The wide design enables easier cabling from front to back, and its dimensions allow passage through standard doorways for simplified installation.
| Specification | Details |
|---|---|
| Model | AR3305 |
| Rack Units | 45U |
| Height | 2124 mm (83.62 in) |
| Width | 600 mm (23.62 in) |
| Depth | 1200 mm (47.24 in) |
| Color | Black |
| Mounting Depth (Max) | 1048 mm (41.26 in) |
| Mounting Depth (Min) | 190.5 mm (7.50 in) |
| Rack Width | 19" |
| Load Capacity (Static) | 1701 kg (3750 lb) |
| Load Capacity (Dynamic) | 1020.6 kg (2250 lb) |
| Material Gauges | 14 gauge rails, 16 gauge doors/posts, 18 gauge roof/sides |
| Included Accessories | Baying hardware, keys, casters, leveling feet, mounting hardware, side panels |
| Compliance | UL 2416, UL 60950-1, EIA-310E, TAA, BAA via COTS |
| Country of Origin | Thailand |
| GTIN | 731304290216 |
| Warranty | 5-year repair or replace |
