Description

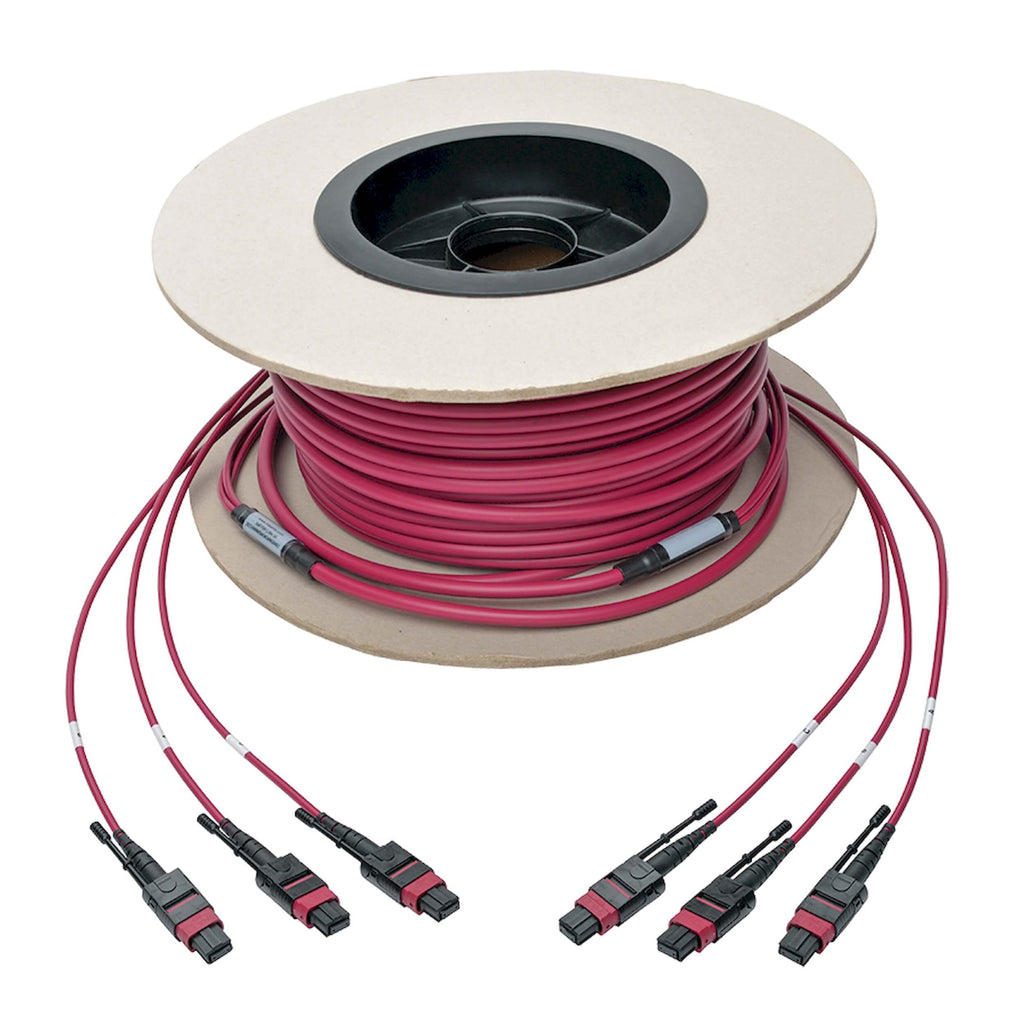

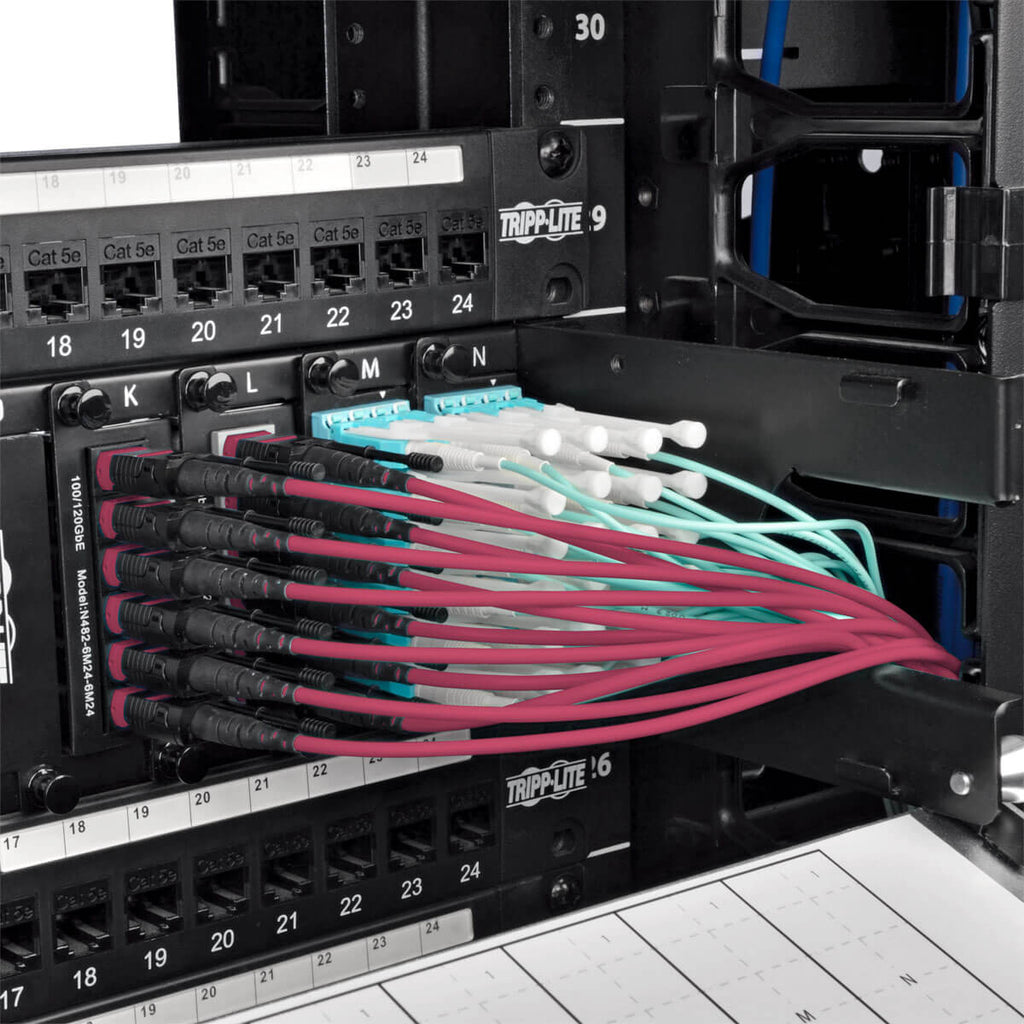

The Tripp Lite N858-61M-3X8-MG MTP/MPO multimode fiber trunk cable is engineered for high-density 40/100 Gb Ethernet deployments in modern data centers and telecom environments. Built with OM4-rated 50/125 multimode fiber, this 24-strand Base-8 trunk cable delivers reliable, high-speed connectivity between main distribution frames (MDFs) and intermediate distribution frames (IDFs).

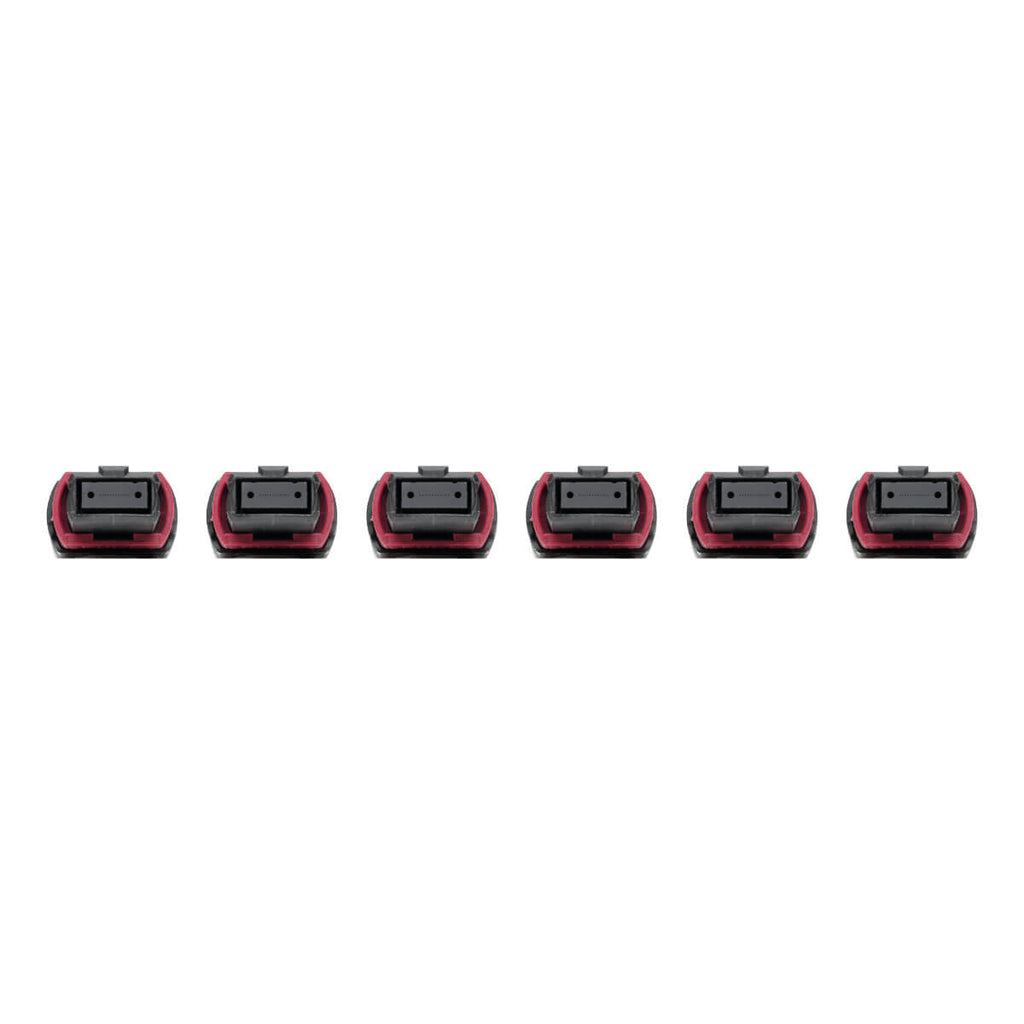

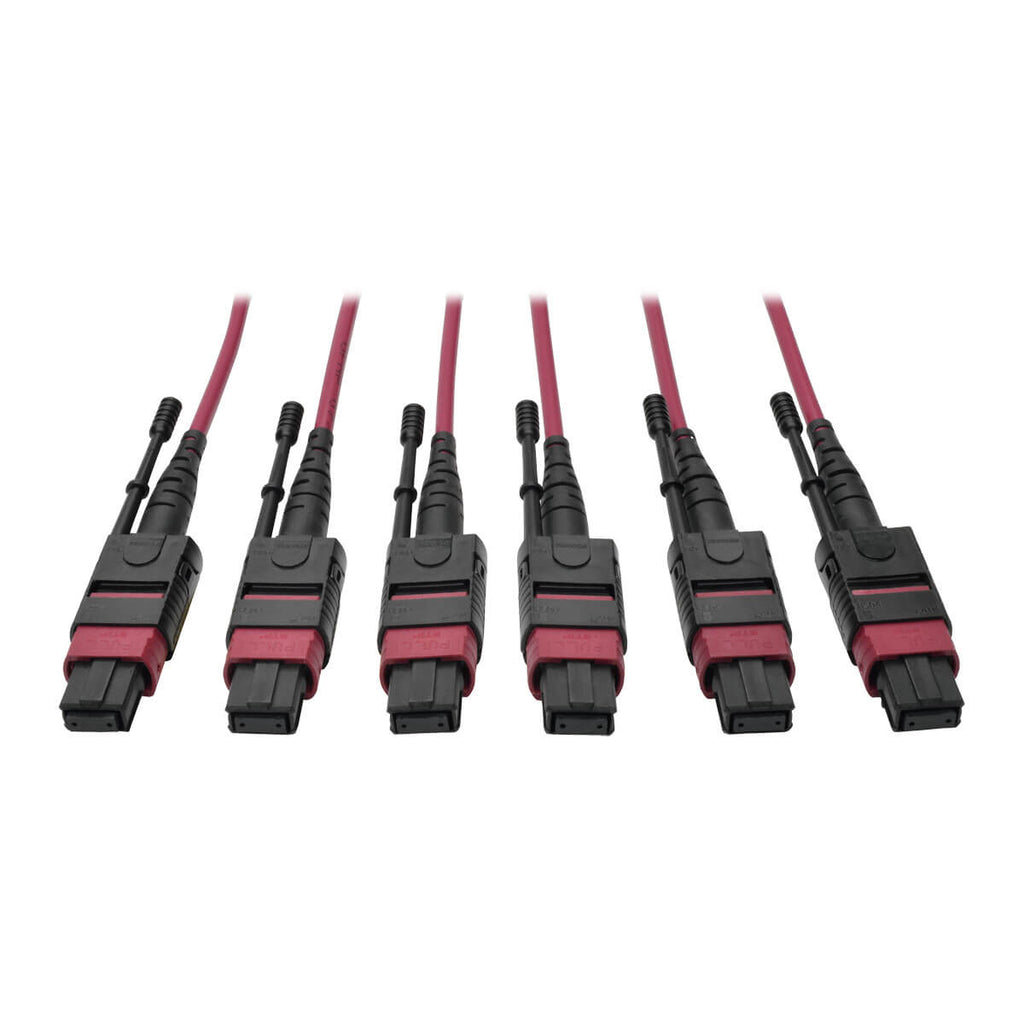

Featuring three female MTP/MPO connectors on each end, this cable maximizes port density while minimizing rack space usage. The push/pull tab design allows for effortless one-handed installation and removal, making it ideal for crowded, high-density patching environments. Each connector is factory-tested to ensure low insertion loss and minimal back reflection, supporting consistent signal integrity for mission-critical applications.
Optimized for QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 networks, this cable also supports up to 400G applications. The rugged plenum-rated (OFNP) jacket and bend-insensitive fiber construction ensure safe and flexible installation in ceilings, walls, and ducts. Its magenta color provides instant identification as OM4 fiber, simplifying cable management in complex infrastructures.
| Specification | Details |
|---|---|
| Brand | Tripp Lite |
| Model | N858-61M-3X8-MG |
| Cable Type | MTP/MPO Multimode Fiber Trunk Cable |
| Fiber Type | OM4 Multimode (50/125 µm) |
| Strand Count | 24 Fibers (Base-8) |
| Connectors (Side A) | 3 × MPO Female (8-Fiber) |
| Connectors (Side B) | 3 × MPO Female (8-Fiber) |

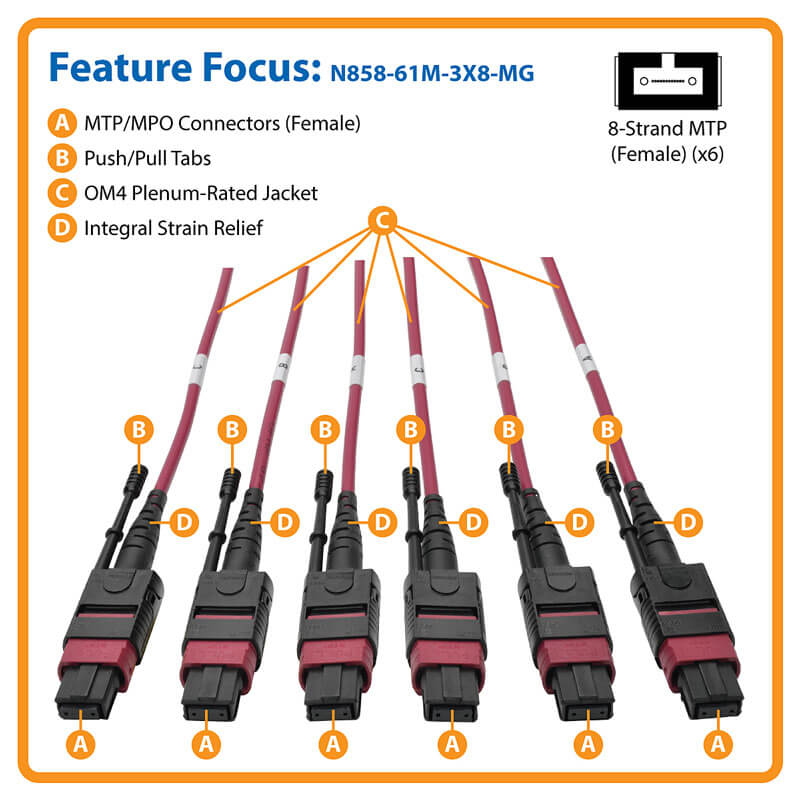

| Connector Type | MTP/MPO with Push/Pull Tab |
| Polarity | Type B (Cross) |
| Network Compatibility | 40Gb, 100Gb, 400Gb Ethernet |
| Supported Standards | 40GBASE-SR4, 100GBASE-SR4 |
| Cable Length | 61 m (200 ft) |
| Jacket Type | Plenum (OFNP), PVC |
| Cable Color | Magenta |
| Bend Radius | 10 mm (static), 20 mm (dynamic) |
| Insertion Loss | ≤ 0.35 dB |
| Attenuation @ 850nm | 3.0 dB/km |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity Range | 5%–85% RH (non-condensing) |
| Compliance | RoHS, REACH |
| Warranty | Lifetime Limited Warranty |
