Description

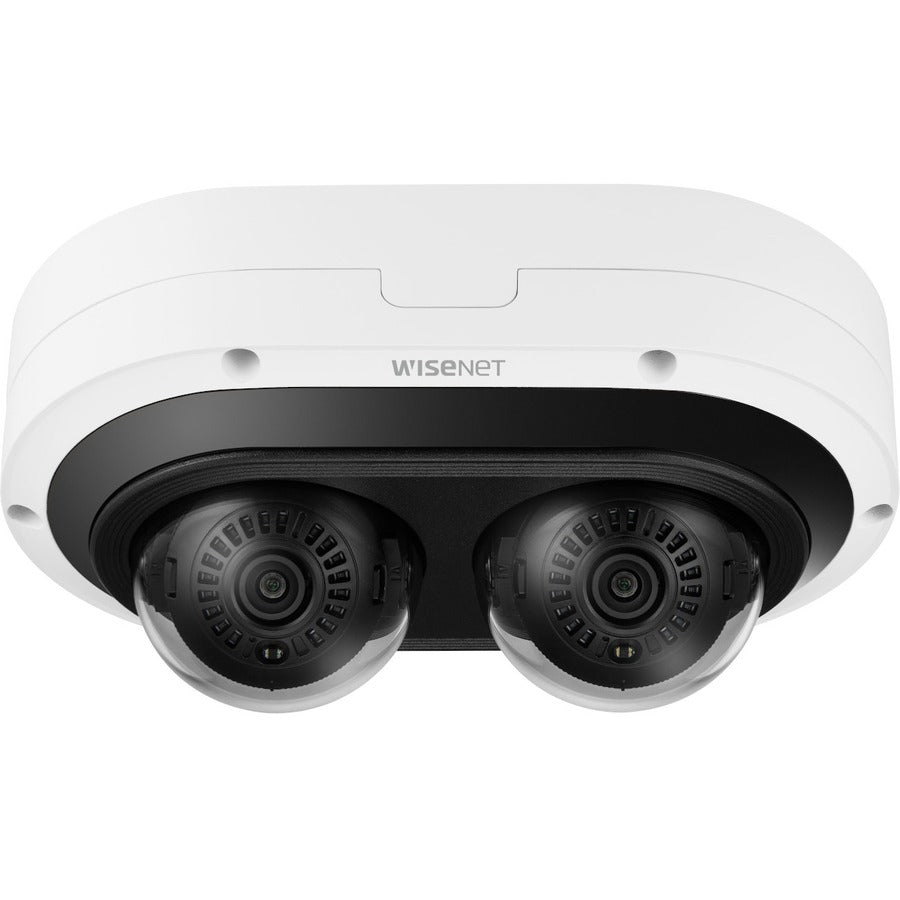

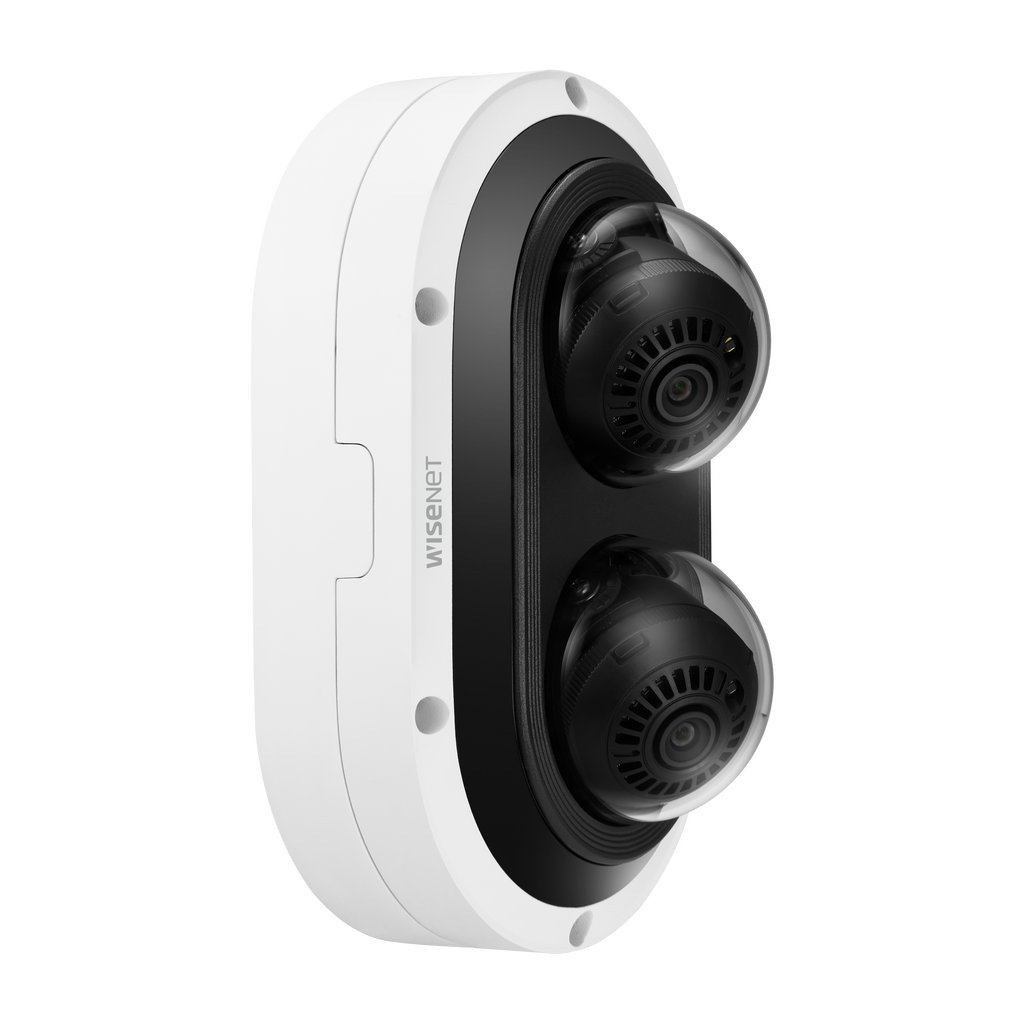

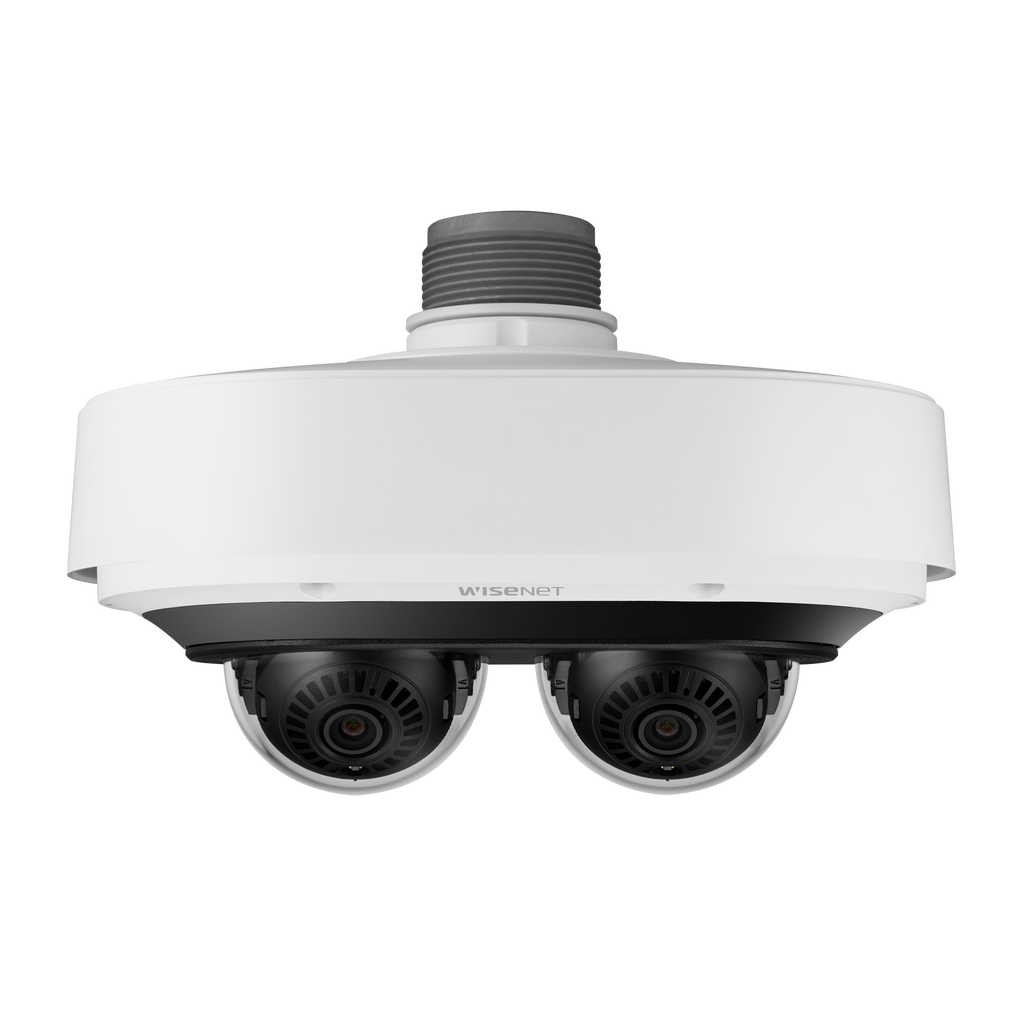

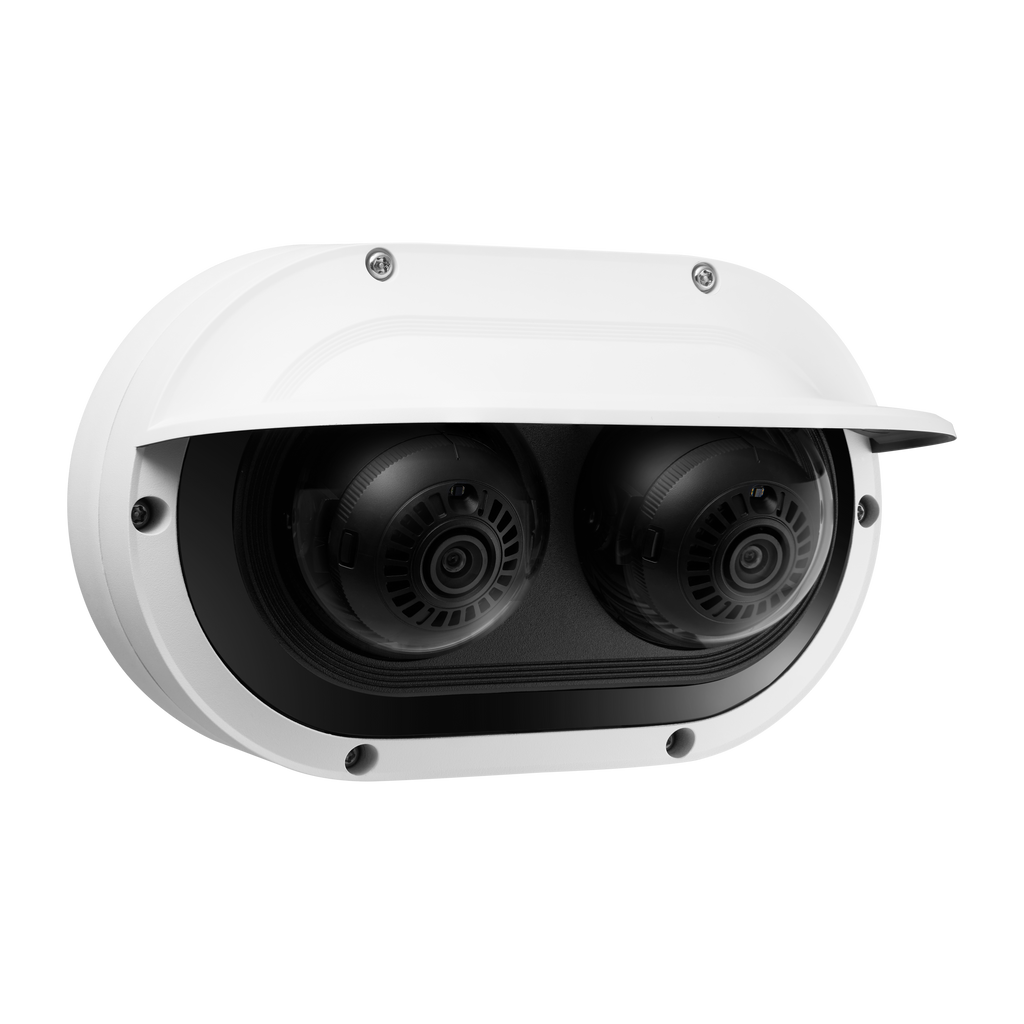

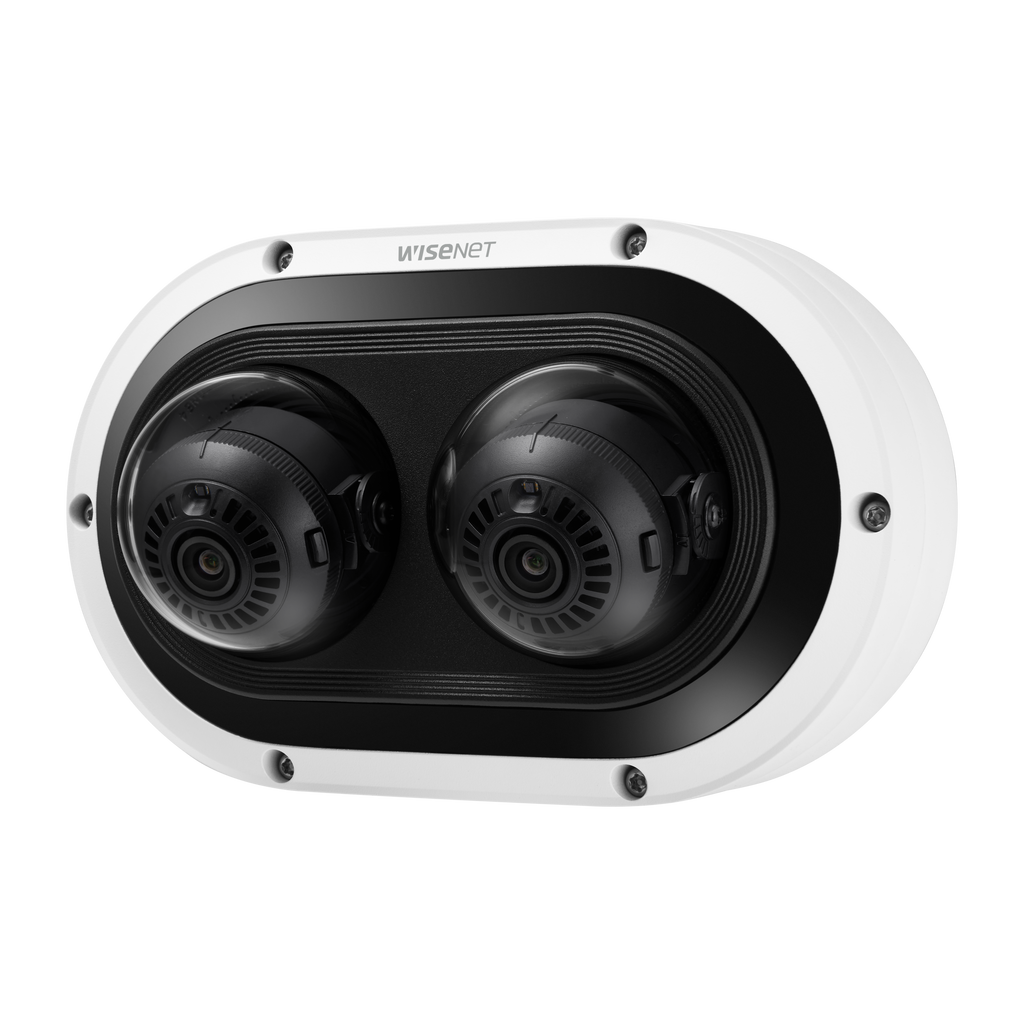

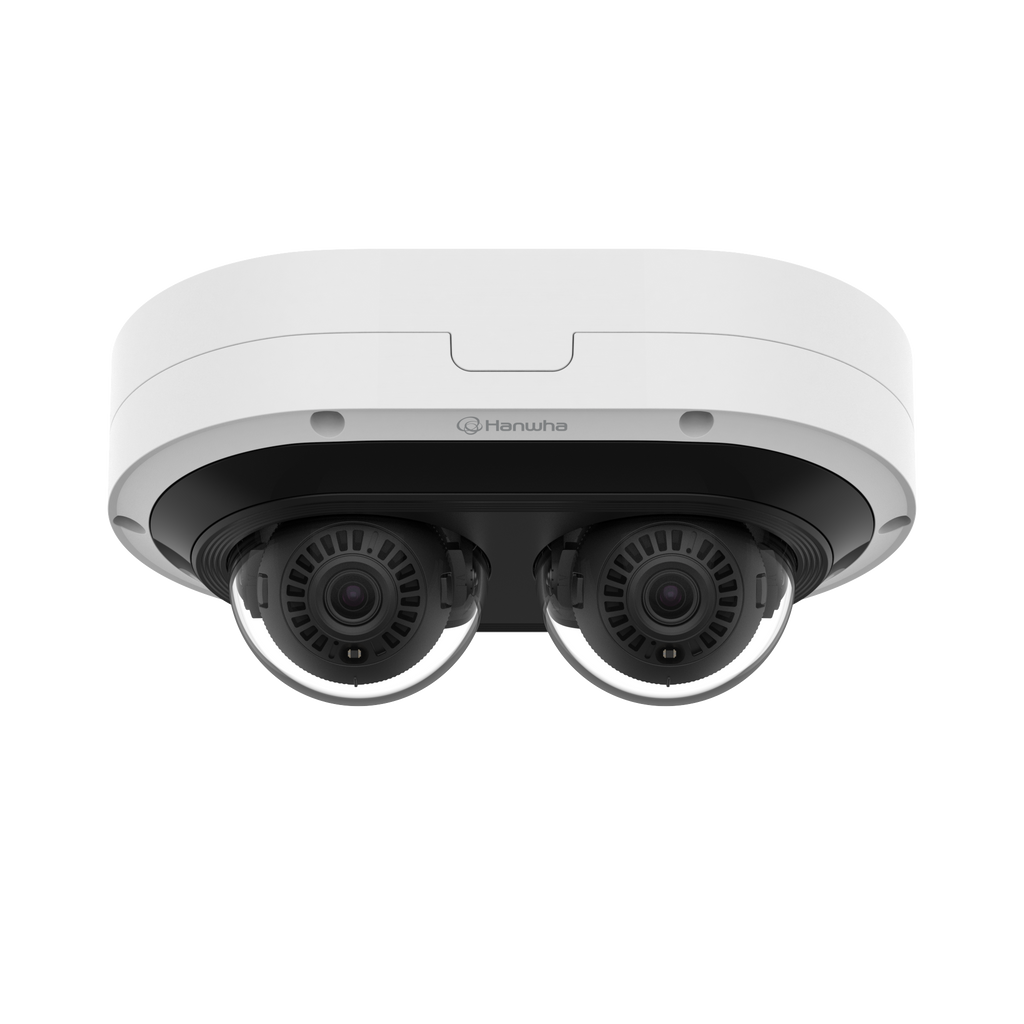

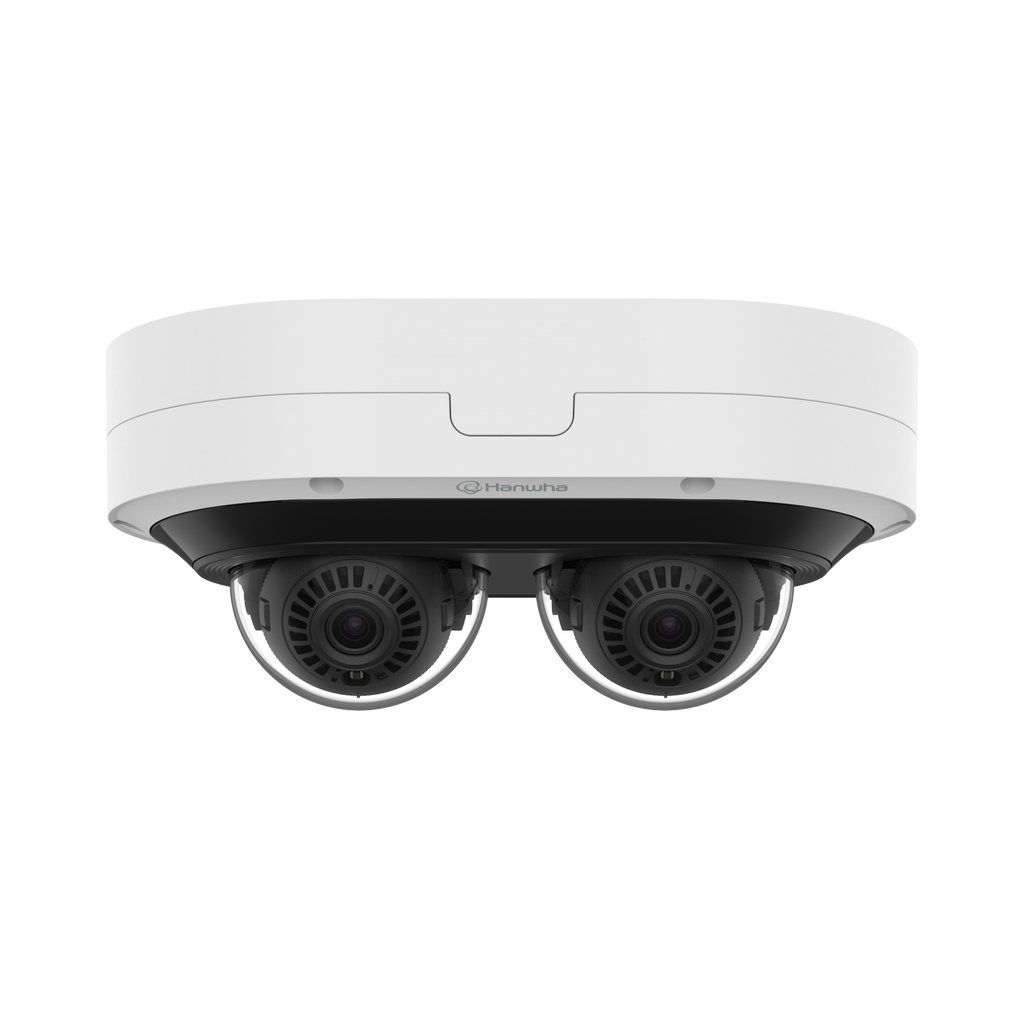

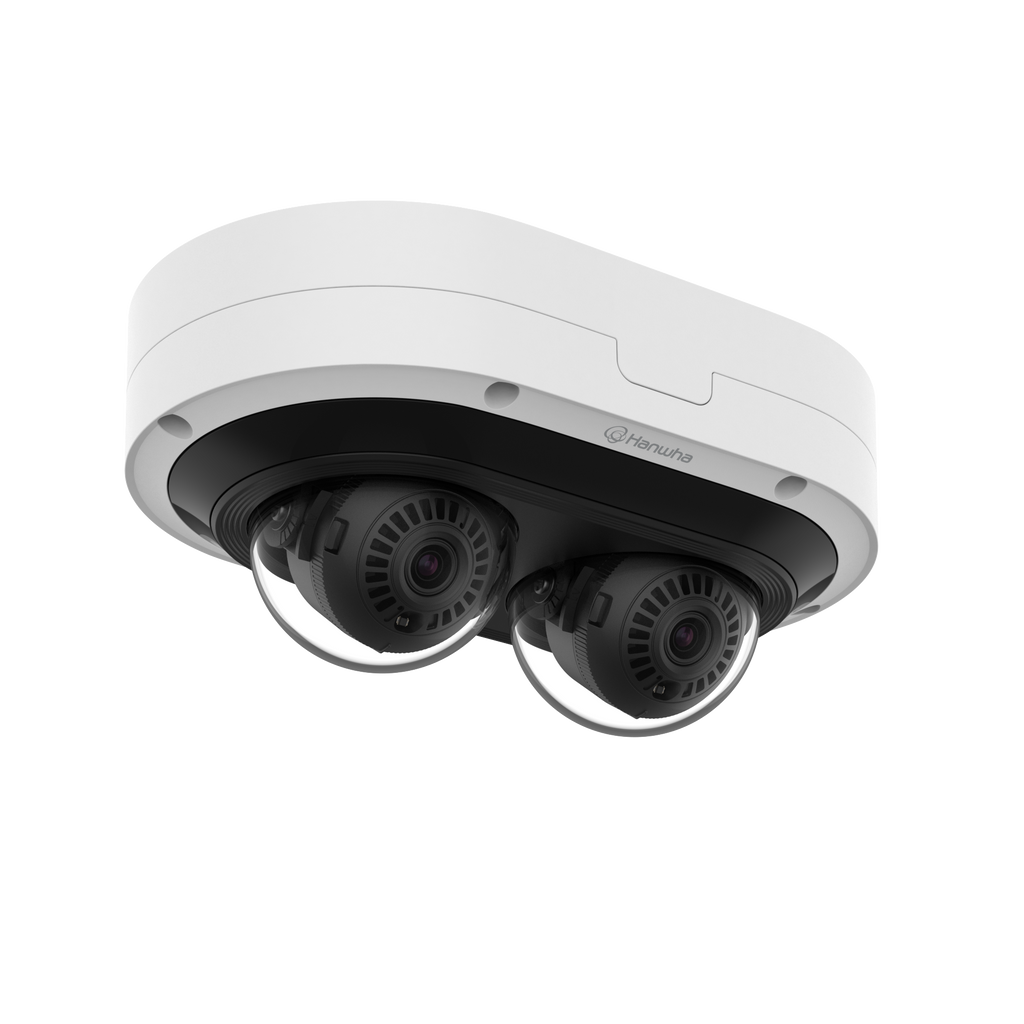

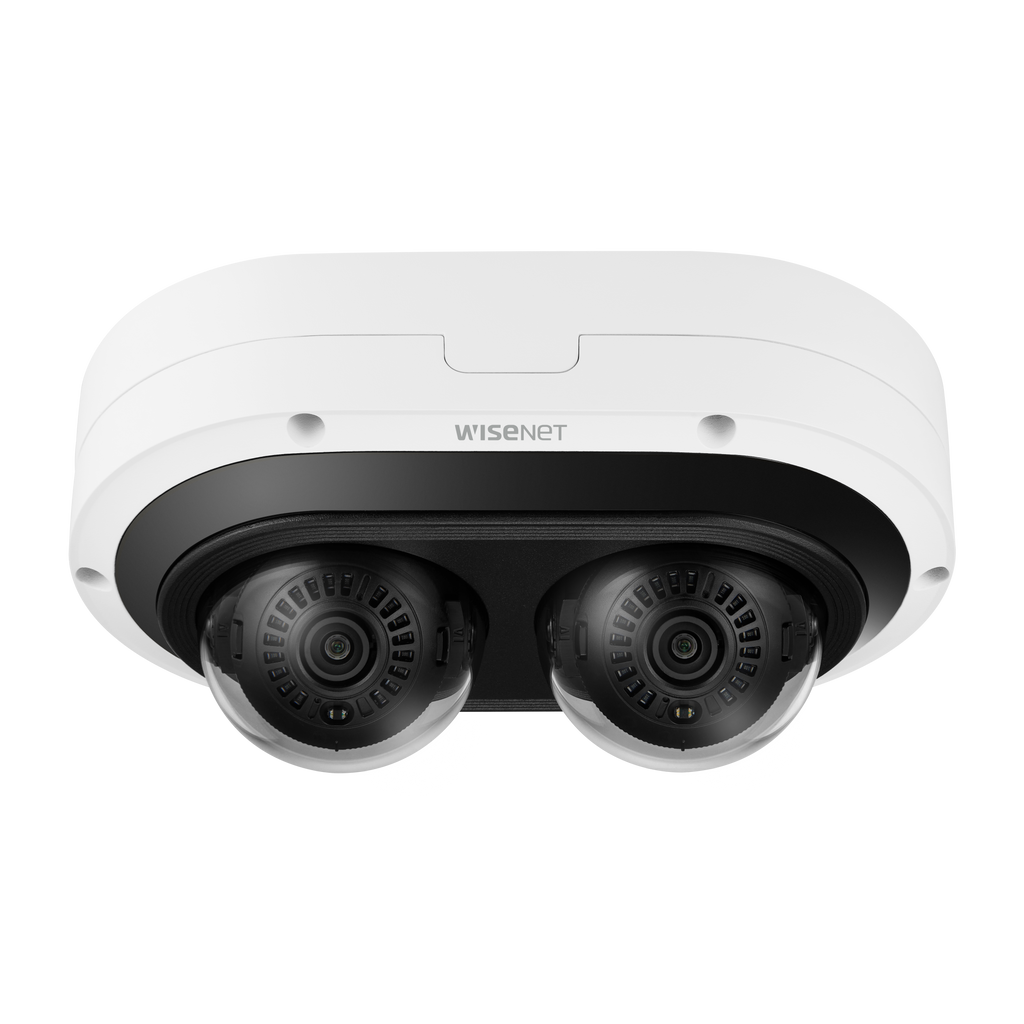

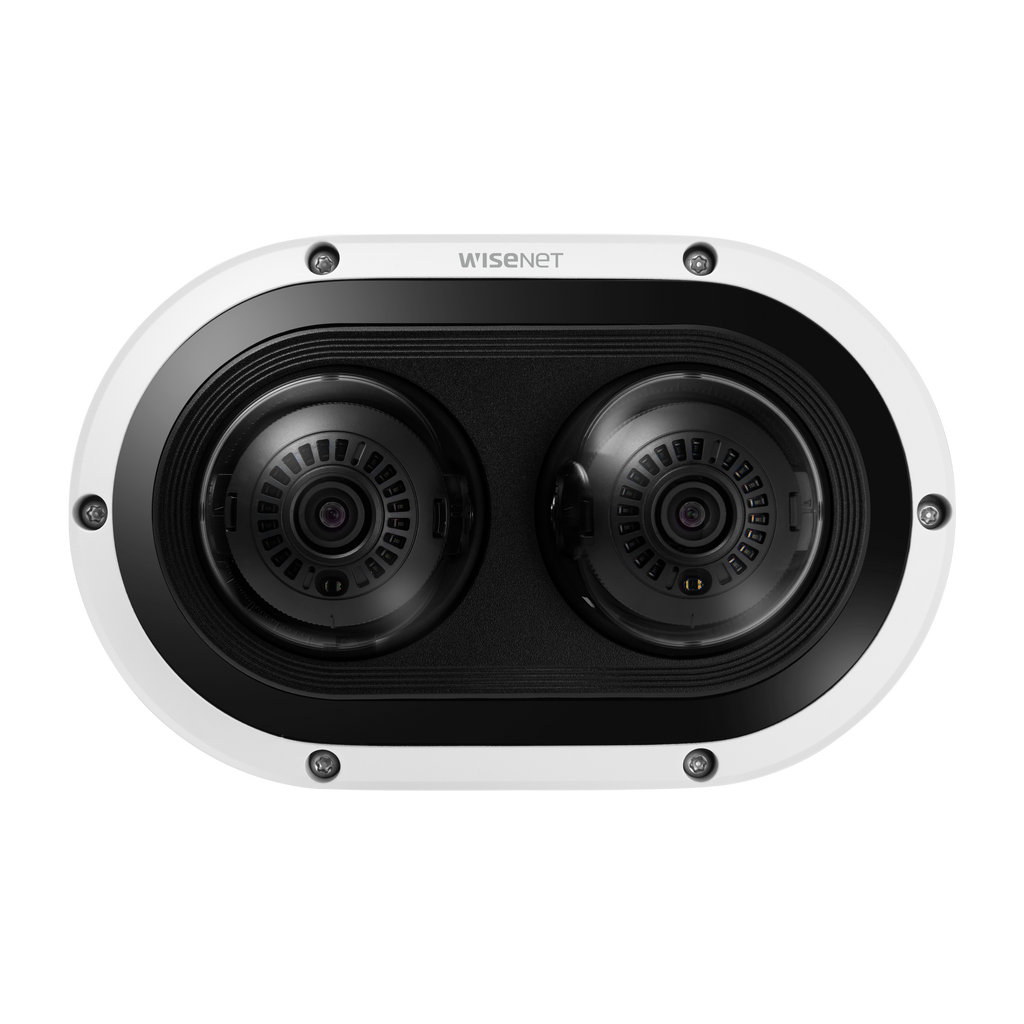

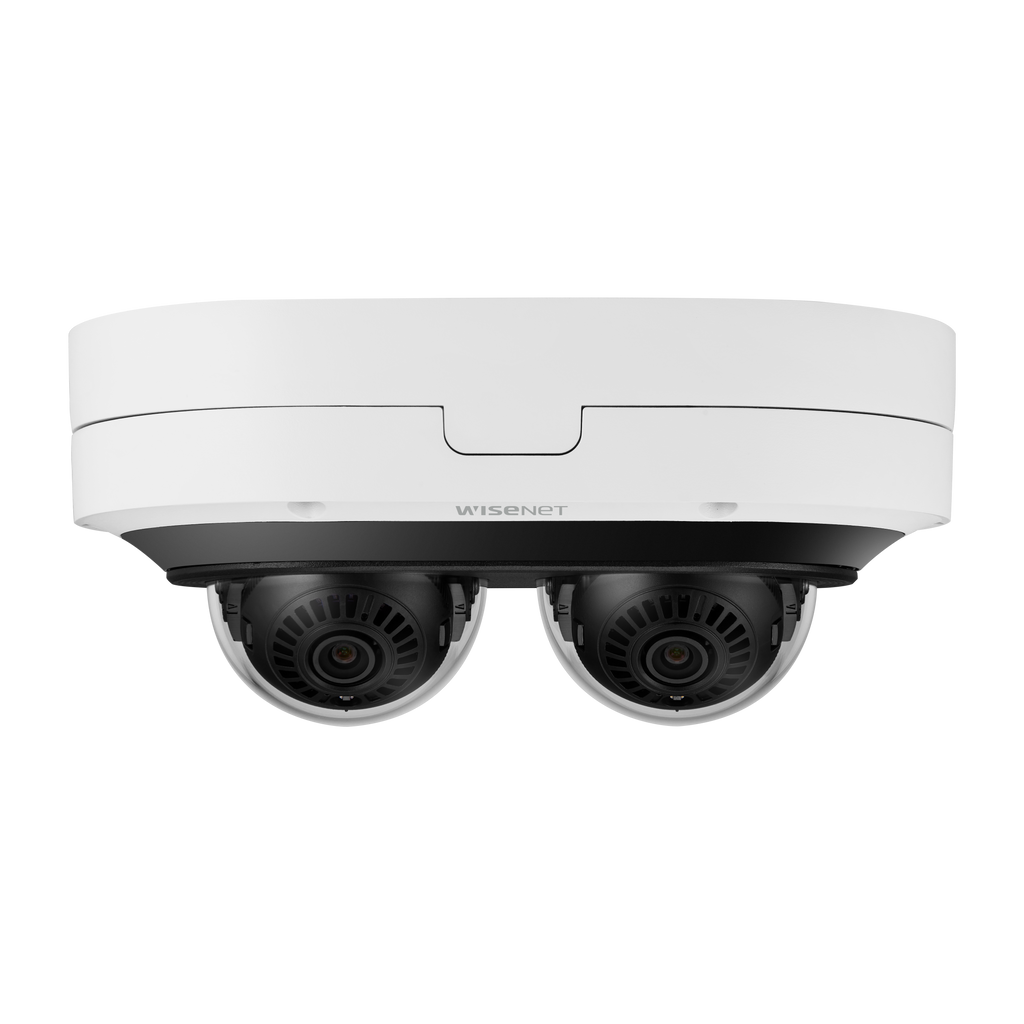

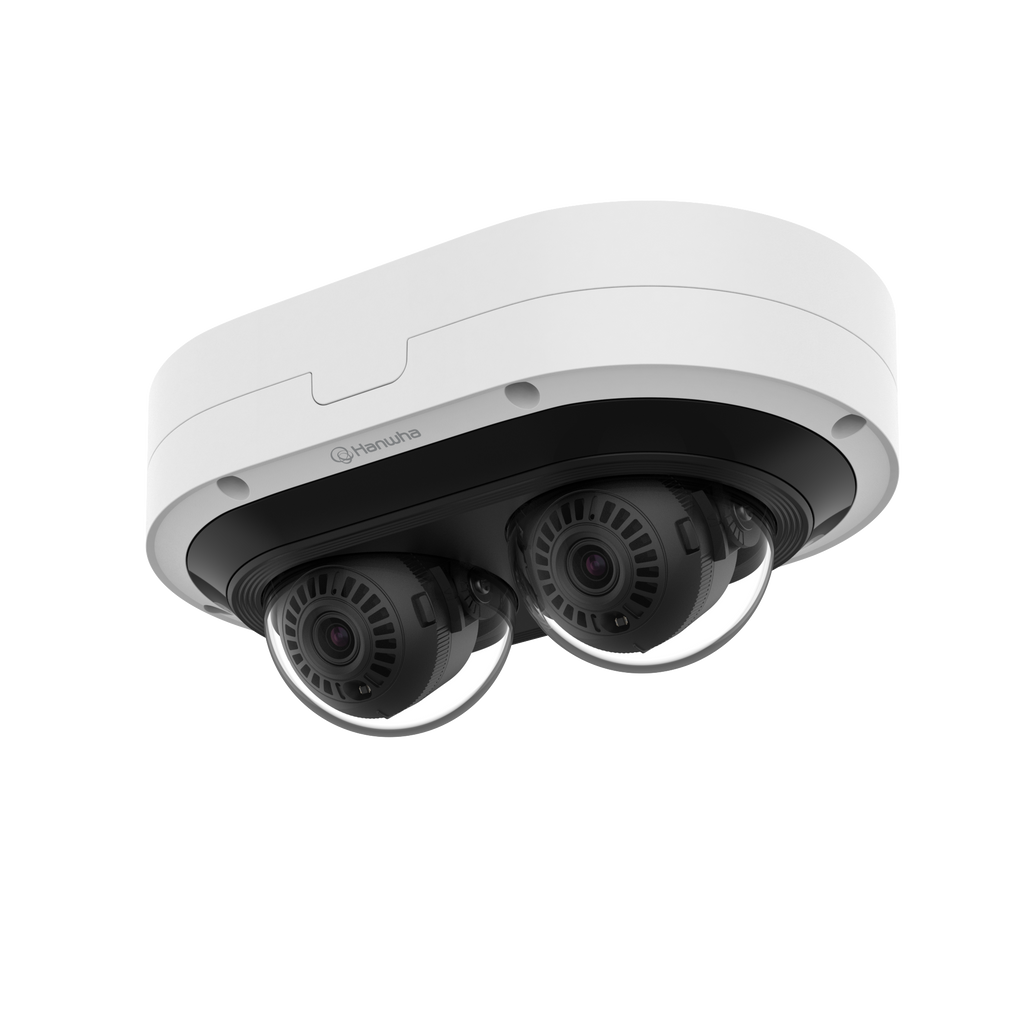

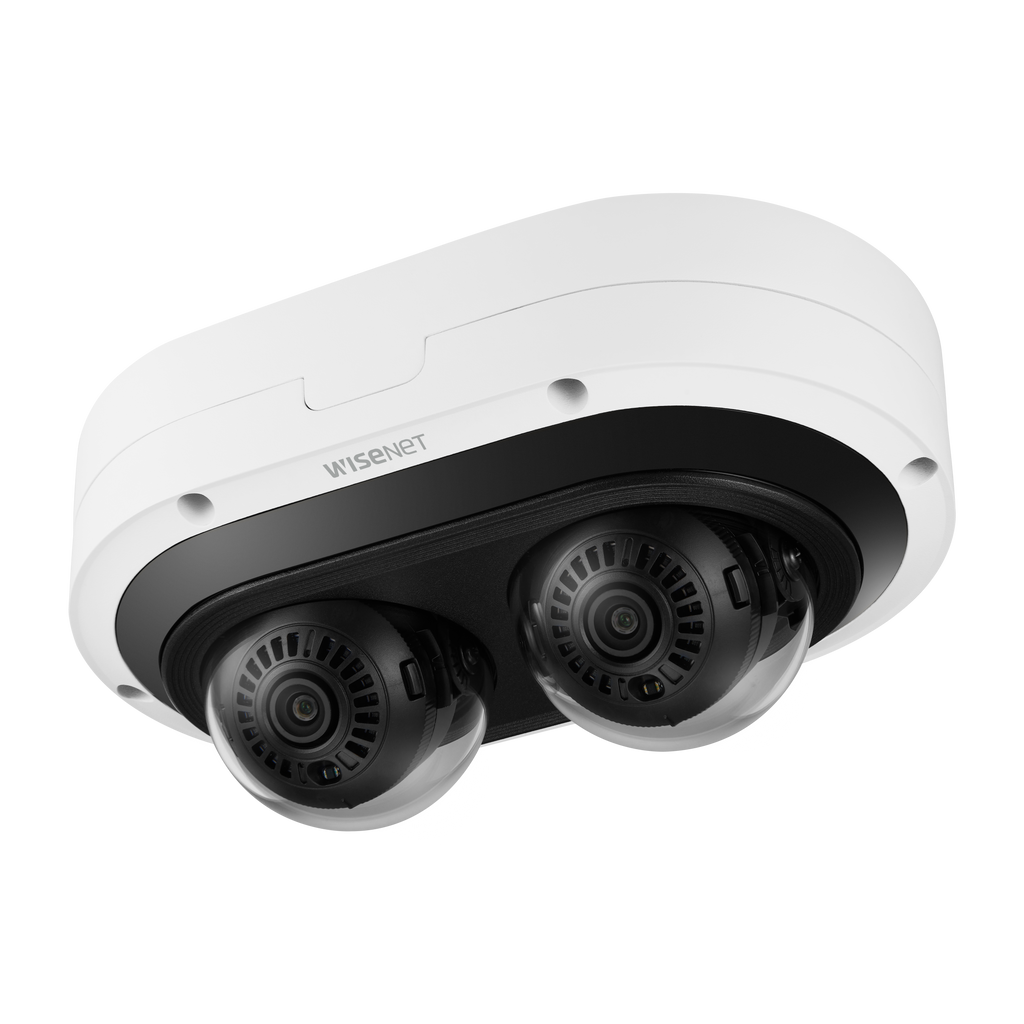

The Hanwha Vision PNM-C12083RVD is a high-performance 6MP × 2-channel AI multi-directional camera engineered for advanced surveillance applications. Each channel delivers detailed 6MP imagery, enhanced by AI-powered analytics that classify people, faces, vehicles, and license plates in real time. With BestShot support, operators can quickly review the most relevant scene snapshots for efficient monitoring and investigations.
Equipped with 3.54–6.69 mm motorized varifocal lenses and up to 25 m IR range, the camera ensures clear visibility day or night. Its robust feature set includes extremeWDR (120 dB), WiseNR II AI-based noise reduction, WiseStream III compression, and flexible video rotation modes for optimized deployment.
Built for demanding environments, the PNM-C12083RVD offers IP66/67 weatherproofing, IK10 vandal resistance, NEMA 4X protection, and TPM 2.0-based cybersecurity. With edge storage, PoE+ support, and ONVIF S/T compliance, it integrates seamlessly into modern surveillance systems.
| Category | Specification |
|---|---|
| Image & Video | |
| Imaging Device | 1/2.8" CMOS |
| Resolution | Up to 3328×1872 |
| Max Frame Rate | 15 fps (H.265/H.264/MJPEG) |
| Min. Illumination | Color: 0.16 lux (F1.67) / B&W: 0.016 lux |
| WDR | 120 dB extremeWDR |
| Noise Reduction | WiseNR II (AI-based), SSNR V |
| Lens | |
| Focal Length | 3.54–6.69 mm |
| Optical Zoom | 1.9× |
| Aperture | F1.67 (Wide), F2.64 (Tele) |
| Field of View | H: 96°–47° / V: 51°–26° / D: 113°–54° |
| Min. Object Distance | 1.5 m |
| IR & Illumination | |
| IR Type | IR LED |
| IR Distance | 15 m to 25 m (scene-dependent) |
| AI Analytics | |
| Object Types | Person, Face, Vehicle, License Plate |
| Vehicle Attributes | Car, Bus, Truck, Motorcycle, Bicycle |
| AI Events | Object detection, virtual line, intrusion, loitering, enter/exit |
| Normal Events | Motion, tampering, defocus, appear/disappear |
| BestShot | Supported |
| Network | |
| Ethernet | RJ-45 (10/100/1000BASE-T) |
| Video Compression | H.265 / H.264 (Main/Baseline/High), MJPEG |
| Smart Codec | WiseStream III |
| Streams | Up to 5 profiles |
| Protocols | IPv4/IPv6, TCP/IP, UDP, RTP, RTSP, HTTP/HTTPS, NTP, DNS, SNMP, QoS, SRTP & more |
| APIs | ONVIF S, T; SUNAPI; Open Platform |
| Security | |
| Secure Boot | Supported |
| Firmware Protection | Encrypted/signed |
| Secure Storage | TPM 2.0 (FIPS 140-2), SD partition encryption |
| Network Authentication | 802.1X |
| Encryption | HTTPS, SRTP |
| Storage | |
| Edge Storage | MicroSD/SDHC/SDXC up to 512GB |
| Cloud Edge Storage | Up to 1TB |
| Environmental / Electrical | |
| Operating Temperature | −40°C to +55°C |
| Ingress Protection | IP66, IP67, NEMA 4X |
| Impact Rating | IK10 |
| Humidity | 0–95% (non-condensing) |
| Power | PoE+ (IEEE 802.3at) |
| Power Consumption | Max 21W (typ. 16.5W) |
| Mechanical | |
| Construction | Aluminum, hard-coated dome |
| Color | White (RAL9003) |
| Dimensions | 215 × 135 × 93.2 mm |
| Weight | 1.33 kg |
| Compatible Mounts | Single/Double Gang, 4" Octagon, Square |
