Description

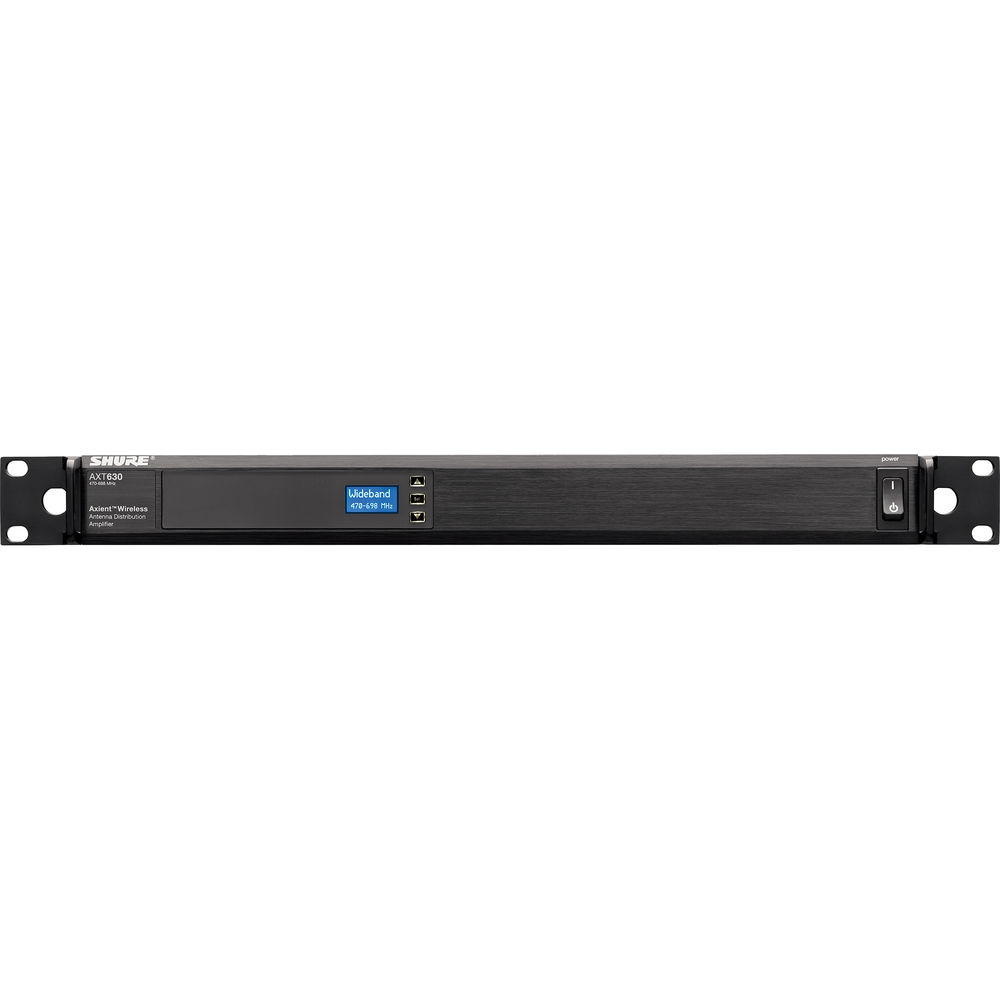

The Shure AXT630US Axient Digital Antenna Distribution System is engineered to deliver reliable, high-performance RF signal distribution for professional wireless audio environments. Designed for demanding live productions, broadcast, and large-scale installations, the AXT630US efficiently distributes RF signals from a single antenna pair to multiple receivers while maintaining exceptional signal integrity.
With ultra-linear amplification and selectable input filtering, the system protects against out-of-band interference and optimizes performance across challenging RF environments. Adjustable attenuation settings allow precise signal-to-noise optimization, ensuring consistent and clean wireless audio transmission. Integrated networking capabilities enable remote configuration and monitoring via Wireless Workbench, streamlining system control for engineers and technicians.
Built with a rugged, rack-mountable design and professional-grade components, the AXT630US is a critical solution for scalable, interference-resistant wireless systems that demand reliability and flexibility.
| Specification | Details |
|---|---|
| Frequency Range | 470–698 MHz |

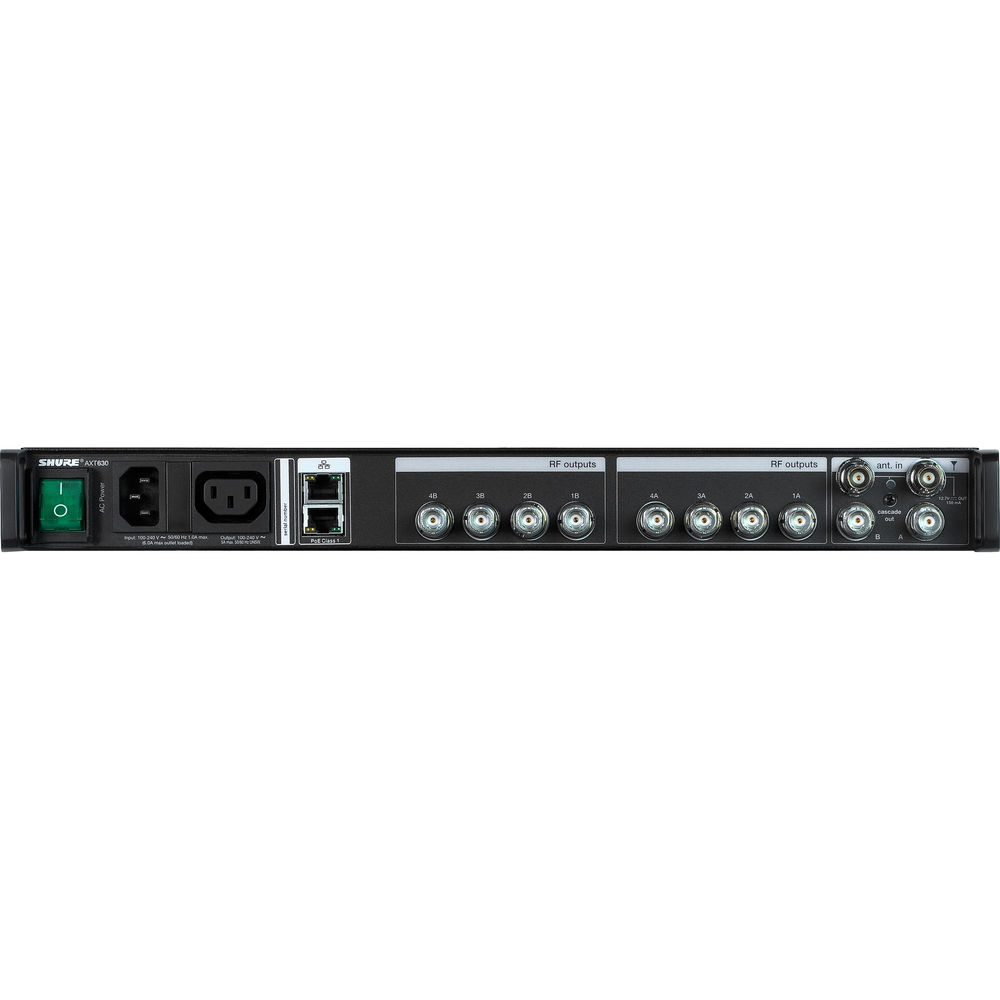

| Antenna Inputs | 2 x BNC (unbalanced, active) |
| Antenna Outputs | 4 pairs of BNC outputs |
| Cascade Output | 1 pair BNC (wideband) |
| Gain Adjustment Range | -15 to 0 dB (cascade enabled), -12 to +3 dB (cascade disabled) |
| RF Impedance | 50 Ω |
| Bias Voltage | 12 VDC, 150 mA (300 mA max) |
| Output Intercept Point | >25 dBm (typical) |
| Input Filtering | Selectable band filters and wideband mode |
| Networking | Dual Ethernet ports (10/100 Mbps), PoE supported |
| Control Software | Wireless Workbench compatible |
| Power Requirements | 100–240 VAC, 50–60 Hz |
| Current Draw | 1.0 A RMS |
| Dimensions (H x W x D) | 1.7 x 19.0 x 14.4 in |
| Weight | 10.1 lbs |
| Operating Temperature | -18°C to 63°C |
| Construction | Steel chassis with extruded aluminum |
