Description

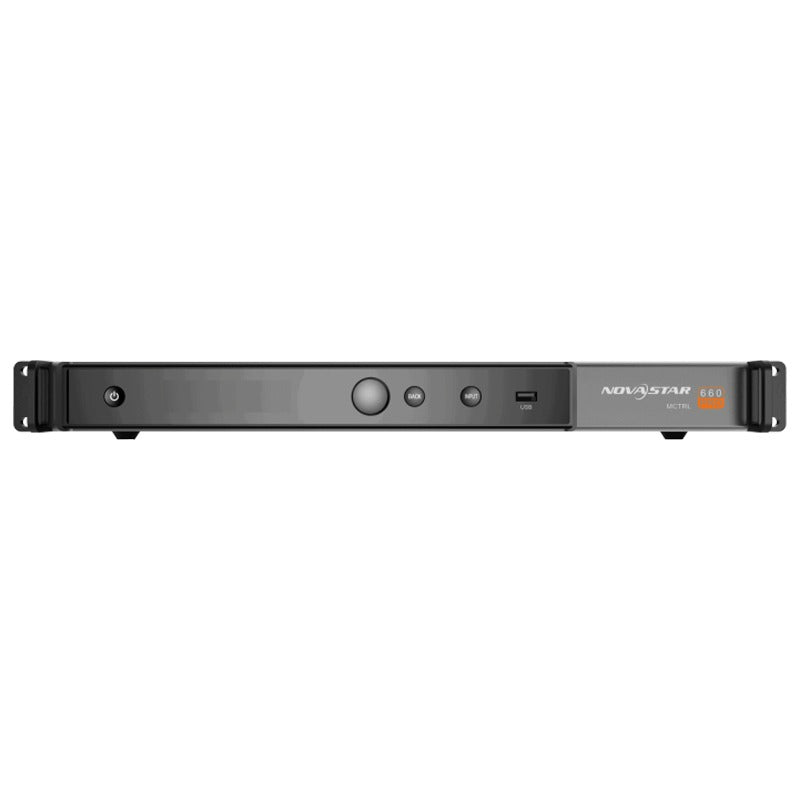

The NovaStar MCTRL660 PRO Independent LED Controller is a professional-grade video controller designed for high-performance LED display applications. Engineered for both rental and fixed installations, it delivers exceptional image quality, ultra-low latency, and flexible signal management for large-scale LED walls.
With support for ultra-high color depth input, custom resolutions, and advanced calibration features, the MCTRL660 PRO ensures smooth gradients, accurate color reproduction, and reliable operation in demanding environments. Its dual working modes allow it to function as both a sending controller and a fiber converter, providing maximum deployment flexibility for concerts, live events, control rooms, and broadcast-grade installations.
Built with multiple video inputs, redundant output options, and web-based control, the MCTRL660 PRO offers a powerful yet streamlined solution for professional LED display control.
| Specification | Details |
|---|---|
| Product Type | Independent LED Display Controller |
| Maximum Loading Capacity | Up to 1920 × 1200 @ 60Hz |
| Custom Resolution Support | Up to 3840 × 2560 pixels |
| Video Inputs | HDMI 1.4a, Single-Link DVI, 3G-SDI |
| Video Loop Outputs | HDMI LOOP, DVI LOOP, 3G-SDI LOOP |
| Ethernet Outputs | 6 × Gigabit Ethernet ports |
| Optical Outputs | 2 × 10G optical ports (OPT1 / OPT2) |
| Color Depth Support | 8-bit, 10-bit, 12-bit |
| Sampling Formats | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Gamma Adjustment | Individual RGB Gamma (10-bit / 12-bit input) |
| Latency | Less than 1 ms |
| Operating Modes | Sending Card Mode, Fiber Converter Mode |
| Screen Functions | Image mirroring, auto LED screen configuration |
| Calibration | Pixel-level brightness and chroma calibration |
| Monitoring Output | HDMI monitoring output (1920 × 1080 @ 60Hz) |
| Control Interfaces | Web control, Ethernet, USB |
| Cascading Support | Up to 8 units |
| Genlock | Blackburst Genlock input and loop output |
| Power Supply | 100–240 V AC |
| Power Consumption | 20 W |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -25°C to 125°C |
| Rack Space | 1U |
| Dimensions | 482.6 × 356.0 × 50.1 mm |
| Net Weight | 4.6 kg |
| Certifications | RoHS, EMC, FCC, IC, LVD |
