Description

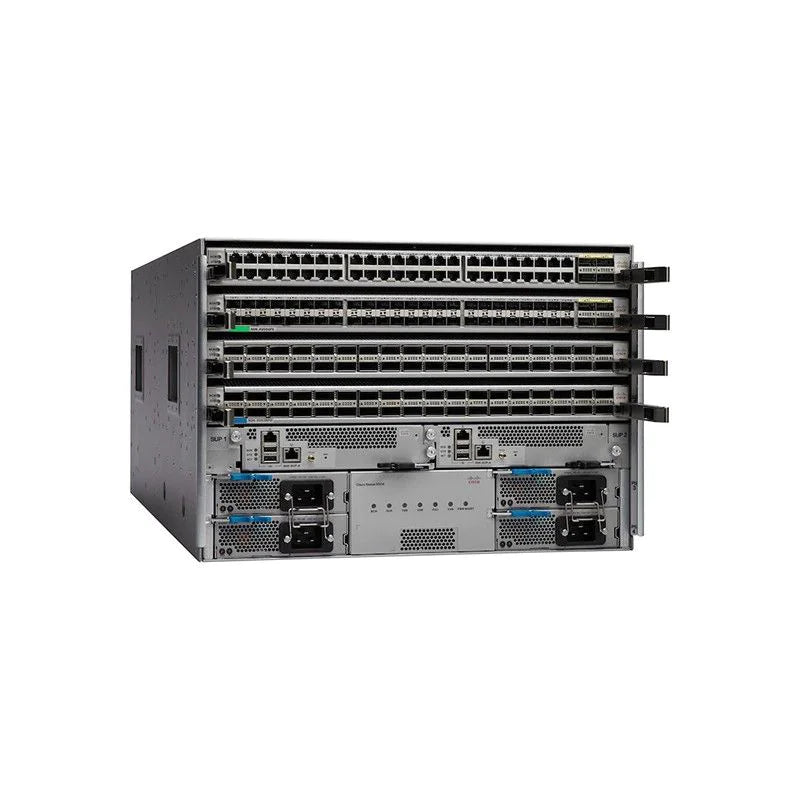

The Cisco Nexus N9K-C9504-B3-E is a high-performance modular switch chassis designed for modern data center core and spine architectures. Built on the Cisco Nexus 9500 platform, this 4-slot chassis bundle delivers exceptional scalability, reliability, and flexibility to support cloud-scale and enterprise networking environments.
This configuration includes one Supervisor Module, three power supplies, two system controllers, four enhanced fabric modules, and three fan trays, providing a resilient and energy-efficient foundation for mission-critical deployments. With support for advanced Cisco NX-OS software, the Nexus 9504 enables unified fabric management, intelligent traffic handling, and seamless scalability as network demands grow.
Ideal for data centers requiring high throughput, low latency, and modular expansion, the N9K-C9504-B3-E offers carrier-class performance with built-in redundancy to ensure continuous operation and simplified lifecycle management.
| Specification | Details |
|---|---|
| Brand | Cisco |
| Model | N9K-C9504-B3-E |
| Product Type | Modular Network Switch Chassis Bundle |
| Chassis | Cisco Nexus 9504 |
| Rack Height | 7U |
| Supervisor Modules | 1 Supervisor Module |
| Power Supplies | 3 Power Supplies |
| System Controllers | 2 System Controllers |
| Fabric Modules | 4 Enhanced Fabric Modules (FM-E) |
| Fan Trays | 3 Fan Trays |
| Switching Capacity | Up to 30.72 Tbps |
| Forwarding Rate | Up to 1.2 Bpps |
| Maximum Port Density | Up to 288 Ports |
| Supported Line Cards | N9K-X9700 Series, N9K-X9732C-EX |
| Management Ports | 1 x RJ-45 Console Port |
| Out-of-Band Management | 1 x RJ-45 10/100/1000 Port |
| Environmental Monitoring | Temperature, fan, and power supply monitoring |
| Redundancy Support | Yes (Supervisors, power supplies, fans) |
| Software Compatibility | Cisco NX-OS |
| Certifications | ISO 9001, ISO 14001, RoHS, REACH, CE, FCC |
| Warranty | Limited Lifetime Warranty |
