Description

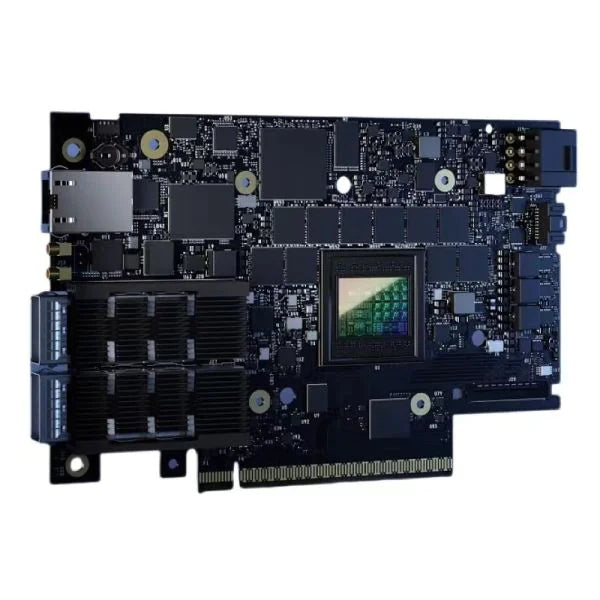

The NVIDIA 900-9D3B6-00CC-EA0 is a BlueField-3 B3210E E-Series DPU in a single-slot, full-height, half-length form factor. It has two QSFP112 ports supporting Ethernet at up to 100Gb/s (the default) and InfiniBand at up to HDR100. The BlueField-3 SoC has 16 Arm cores, 32GB of dual-channel DDR5 with ECC, 40GB of pSLC eMMC, and a 128GB SSD. It connects over PCIe Gen 5.0 x16, with an optional additional PCIe x16 connection through an auxiliary passive card. This version has crypto enabled and an integrated BMC. It requires a supplementary 8-pin ATX power connection.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | NVIDIA |
| MPN | 900-9D3B6-00CC-EA0 |
| Model | BlueField-3 B3210E E-Series DPU |
| SoC | BlueField-3 E-Series, 16 Arm cores, 505MHz/2000MHz |
| Form Factor | Single-slot FHHL, 111.15 x 167.65mm |
| Ports | 2 x QSFP112 (copper and optical) |
| Ethernet Rates (Default) | 100/50/25/10Gb/s |
| InfiniBand Rates | HDR100/EDR/FDR/SDR (IBTA v1.5) |
| Host Interface | PCIe Gen 5.0 @ 32GT/s, x16 (4.0/3.0/2.0/1.1 compatible) |
| PCIe Extension | Optional additional PCIe x16 Gen 4.0/5.0 via auxiliary card |
| Memory | 32GB DDR5 + ECC @ 5200MT/s (dual-channel) |
| Storage | 40GB pSLC eMMC + 128GB SSD |
| Crypto | Enabled |
| Management | Integrated BMC |
| Power | 12V; requires supplementary 8-pin ATX power |
| Bracket | Tall bracket (121.0 x 21.6mm) |
| Operating Temperature | 0Β°C to 55Β°C |
| Non-Operating Temperature | -40Β°C to 70Β°C |
| Humidity | 10%β85% operating |
| Altitude | 3050m |
| Safety / EMC | CB, cTUVus, CE / CE, FCC, VCCI, ICES, RCM |
| Regulatory Model | D3B6 |
| Compliance | RoHS |
