Description

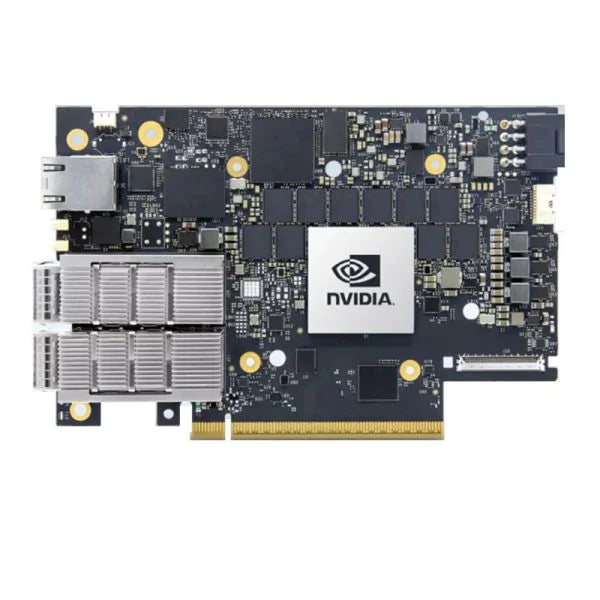

The NVIDIA 900-9D3B4-00CV-EA0 is a BlueField-3 B3220L E-Series SuperNIC in a single-slot, full-height, half-length form factor. It has two QSFP112 ports supporting Ethernet at up to 200Gb/s (the default) and InfiniBand at up to NDR200. It connects over PCIe Gen 5.0 x16. The BlueField-3 SoC has 8 Arm cores, 16GB of DDR5 with ECC, 40GB of pSLC eMMC, and a 128GB SSD. This version has crypto enabled and an integrated BMC. It needs a minimum of 75W of system power through the PCIe x16 slot.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | NVIDIA |
| MPN | 900-9D3B4-00CV-EA0 |
| Model | BlueField-3 B3220L E-Series SuperNIC |
| SoC | BlueField-3 E-Series, 8 Arm cores, 505MHz/2000MHz |
| Form Factor | Single-slot FHHL, 111.15 x 167.65mm |
| Ports | 2 x QSFP112 (copper and optical) |
| Ethernet Rates (Default) | 200/100/50/25/10Gb/s |
| InfiniBand Rates | NDR200/HDR/HDR100/EDR/FDR/SDR (IBTA v1.5) |
| Host Interface | PCIe Gen 5.0 @ 32GT/s, x16 (4.0/3.0/2.0/1.1 compatible) |
| Memory | 16GB DDR5 + ECC @ 5200MT/s |
| Storage | 40GB pSLC eMMC + 128GB SSD |
| Crypto | Enabled |
| Management | Integrated BMC |
| Bracket | Tall bracket |
| Power Requirement | Minimum 75W through PCIe x16; 12V |
| Operating Temperature | 0°C to 55°C |
| Non-Operating Temperature | -40°C to 70°C |
| Humidity | 10%–85% operating |
| Altitude | 3050m |
| Safety / EMC | CB, cTUVus, CE / CE, FCC, VCCI, ICES, RCM |
| Regulatory Model | D3B4 |
| Compliance | RoHS |
