Description

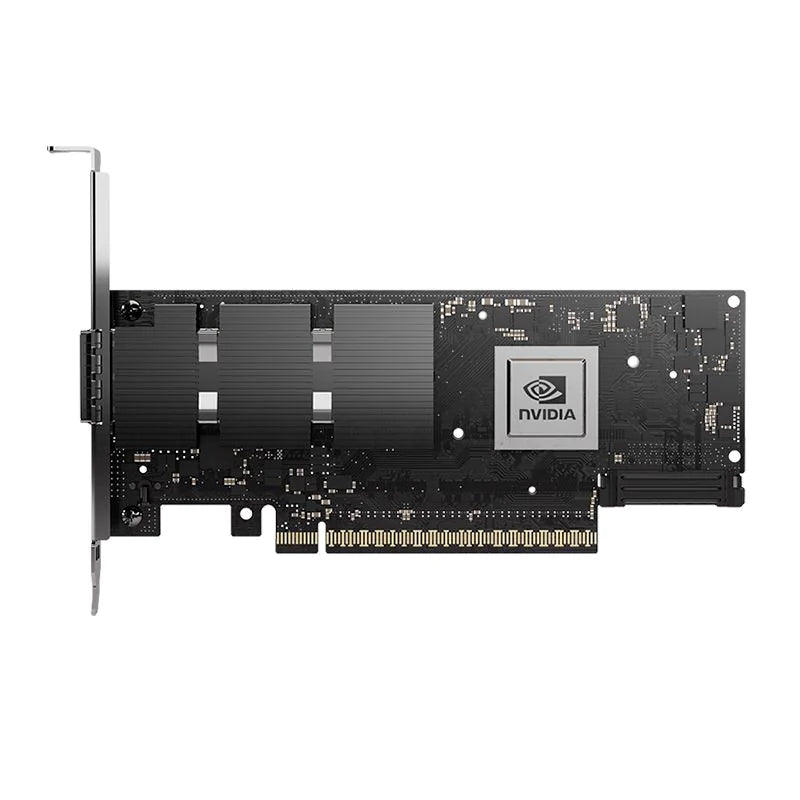

The NVIDIA MCX75310AAS-NEAT is a ConnectX-7 adapter card with a single OSFP port. It supports InfiniBand at NDR 400Gb/s (the default) and Ethernet at up to 400GbE. It connects over PCIe Gen 5.0 x16 at up to 32GT/s and is compatible with Gen 4.0 and Gen 3.0. Secure Boot is enabled and crypto is disabled on this model. It comes in a half-height, half-length form factor with a tall bracket.
The OSFP port supports riding heat sink (RHS) cages only. The card supports InfiniBand and Ethernet from hardware version AA and higher.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | NVIDIA |
| MPN | MCX75310AAS-NEAT |
| NVIDIA SKU | 900-9X766-003N-SQ0 |
| Product Type | InfiniBand / Ethernet Adapter Card |
| Controller | ConnectX-7 |
| Form Factor | PCIe HHHL, 2.71 x 6.6 in (68.90 x 167.65mm) |
| Ports | 1 x OSFP (RHS cage only) |
| InfiniBand Rates | NDR/NDR200/HDR/HDR100/EDR/FDR/SDR (IBTA v1.5a) |
| Ethernet Rates | 400/200/100/50/40/10/1Gb/s |
| Default Protocol | InfiniBand NDR |
| Host Interface | PCIe Gen 4.0/5.0, 16/32GT/s x16 (Gen 3.0 compatible) |
| Secure Boot | Enabled |
| Crypto | Disabled |
| Bracket | Tall bracket |
| Typical Power (passive cables, Gen 5.0 x16) | 24.9W |
| Voltage | 12V, 3.3VAUX |
| Operating Temperature | 0Β°C to 55Β°C |
| Non-Operating Temperature | -40Β°C to 70Β°C |
| Operating Humidity | 10% to 85% RH |
| Operating Altitude | 3050m |
| Safety / EMC | CB, cTUVus, CE / CE, FCC, VCCI, ICES, RCM, KC |
| Compliance | RoHS |
| Protocol Note | InfiniBand and Ethernet supported from hardware version AA and higher |
