Description

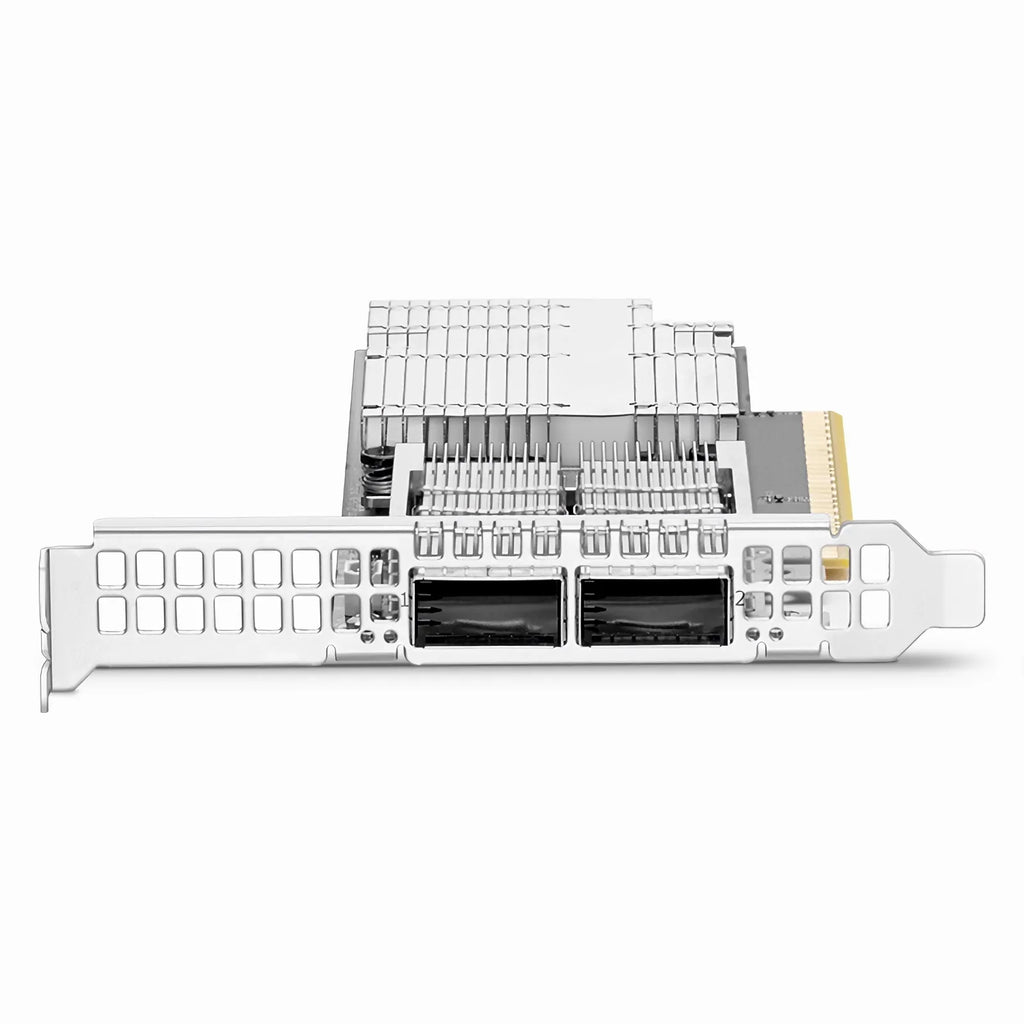

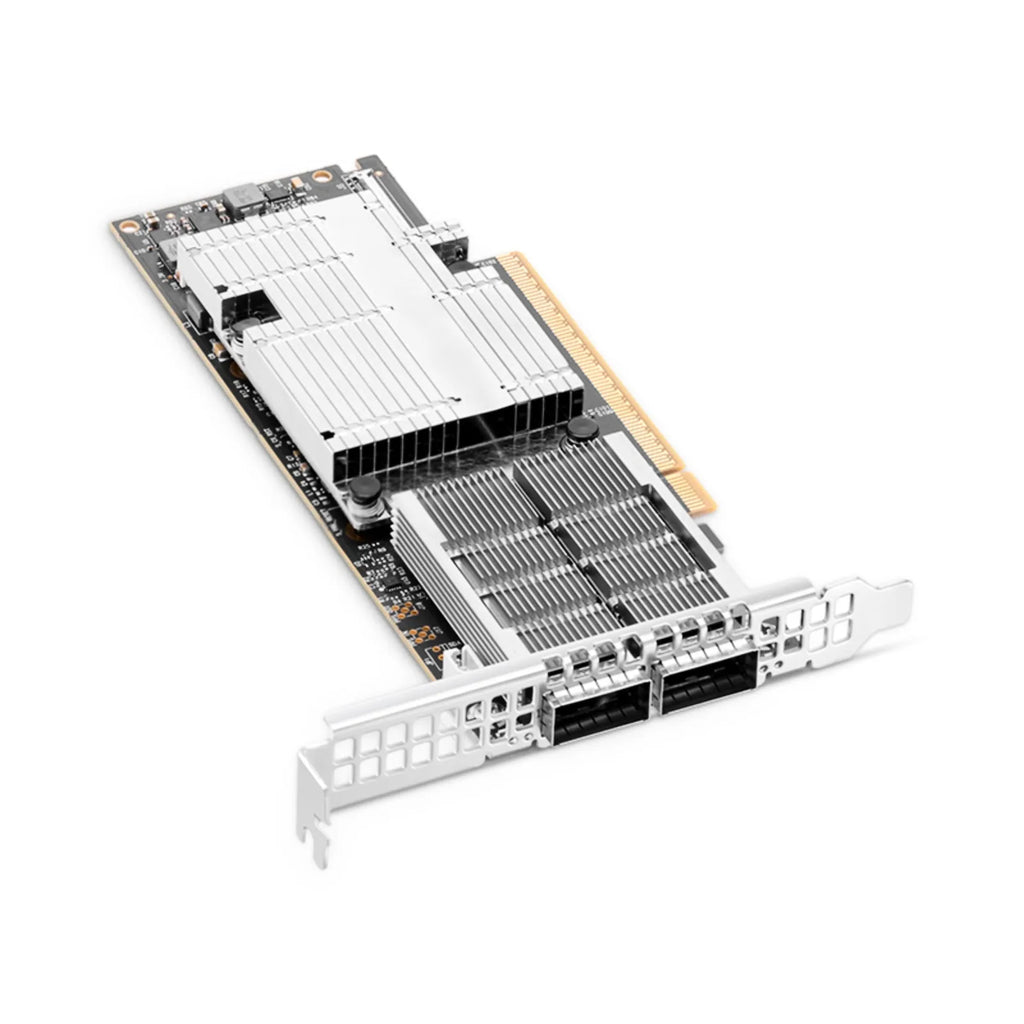

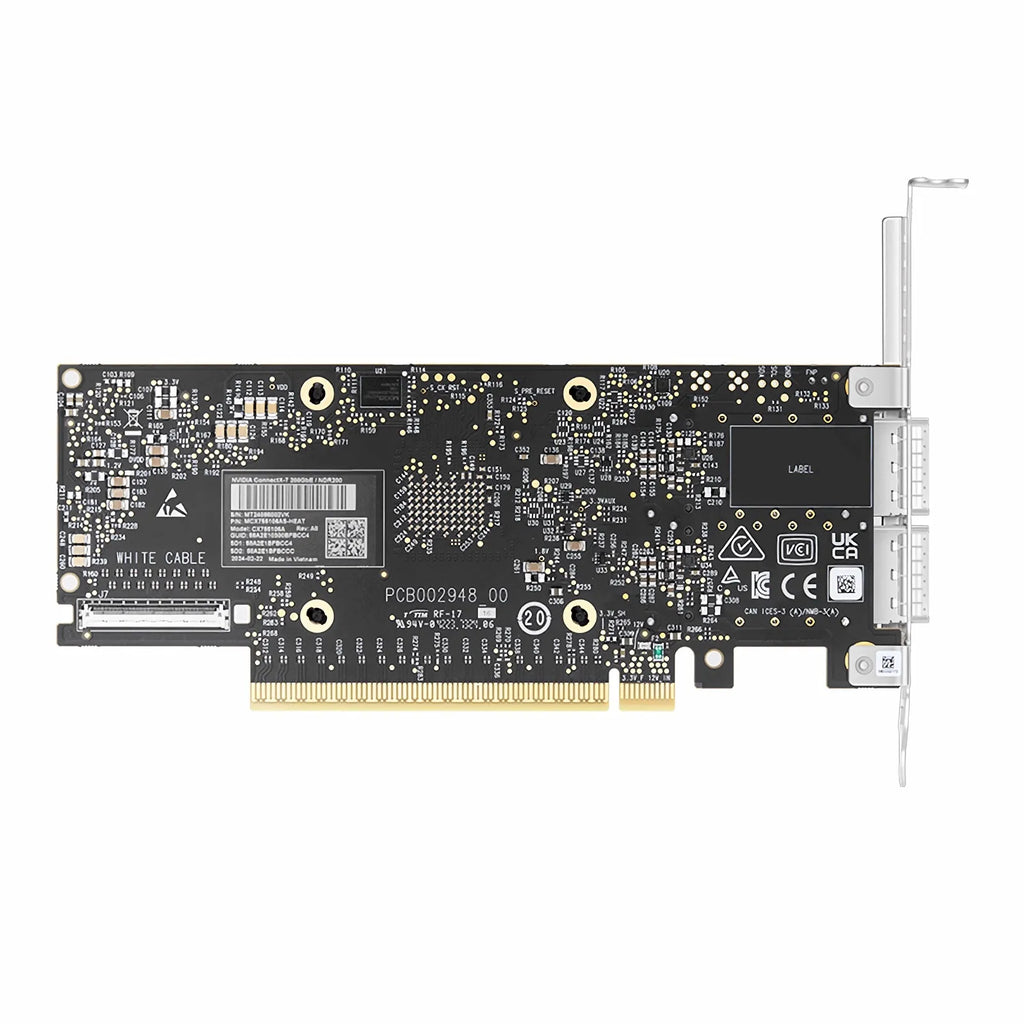

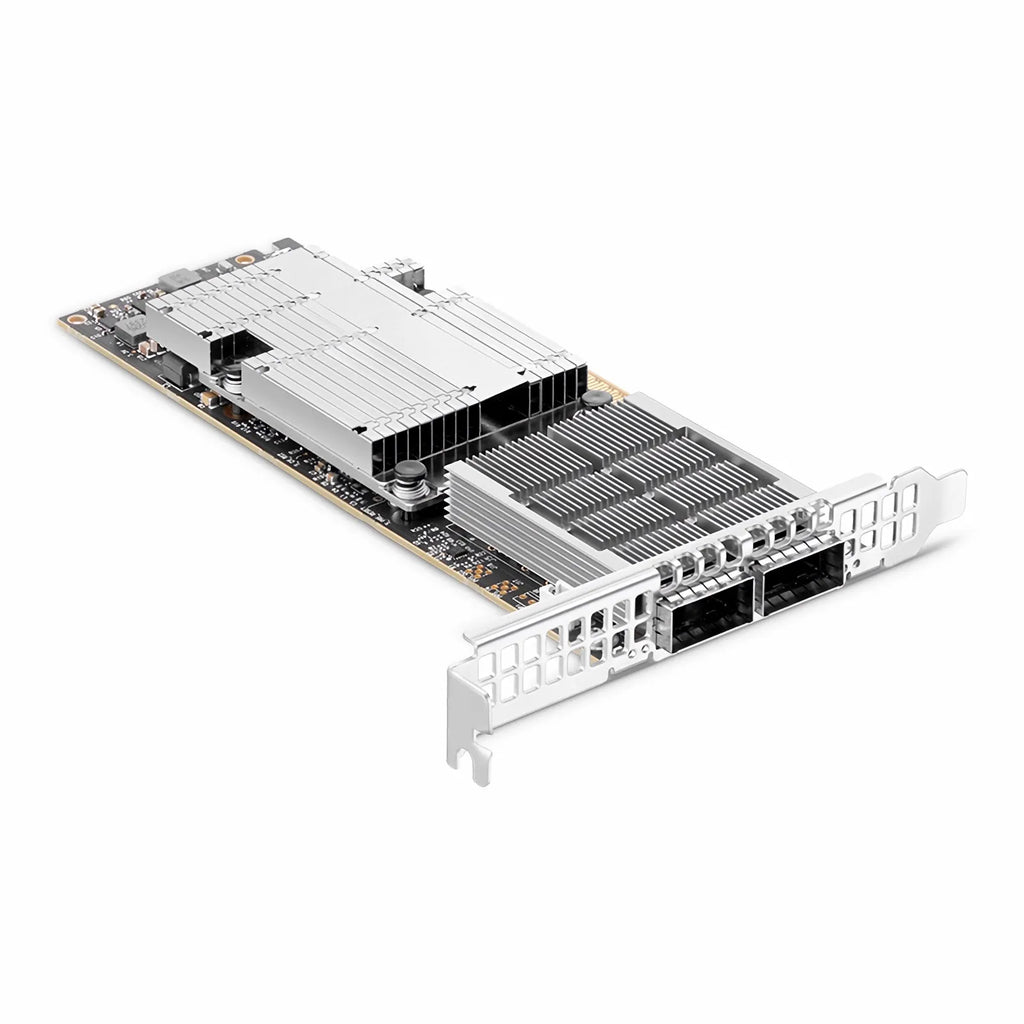

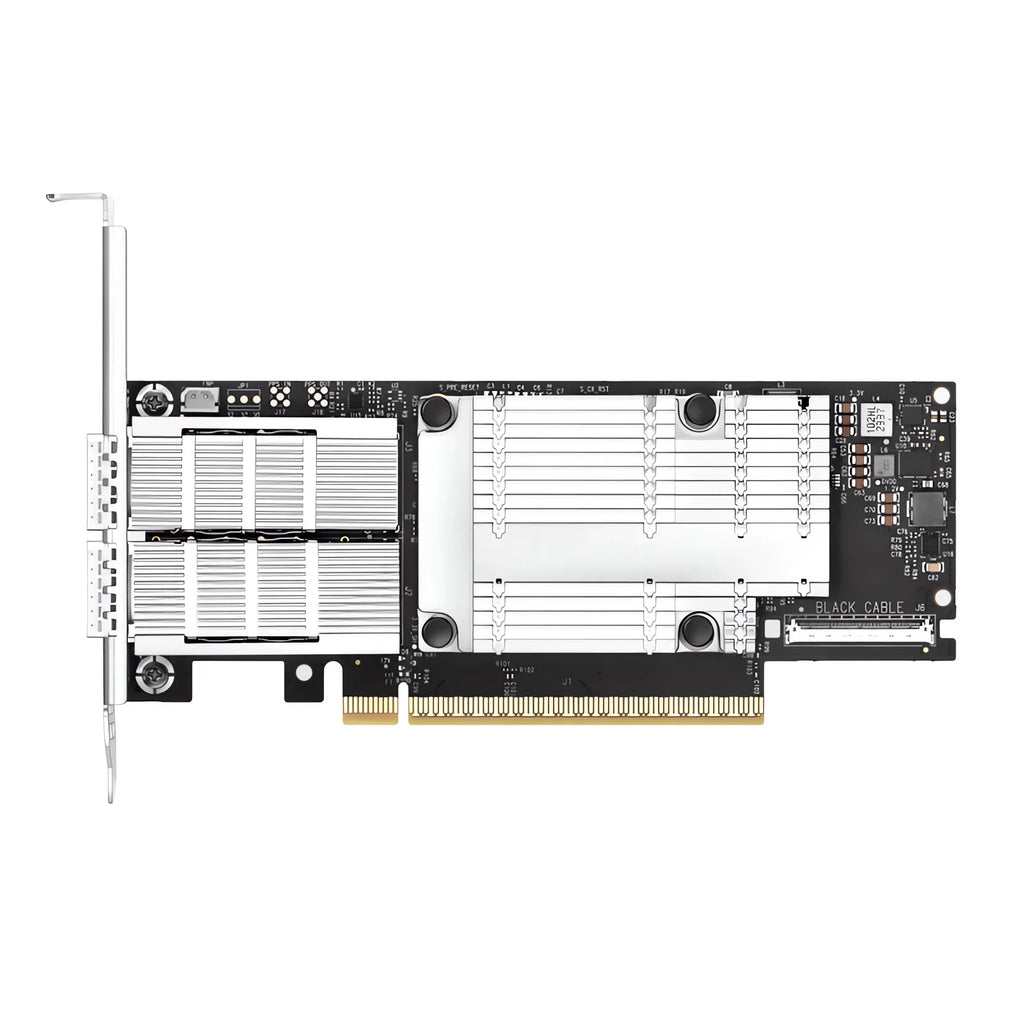

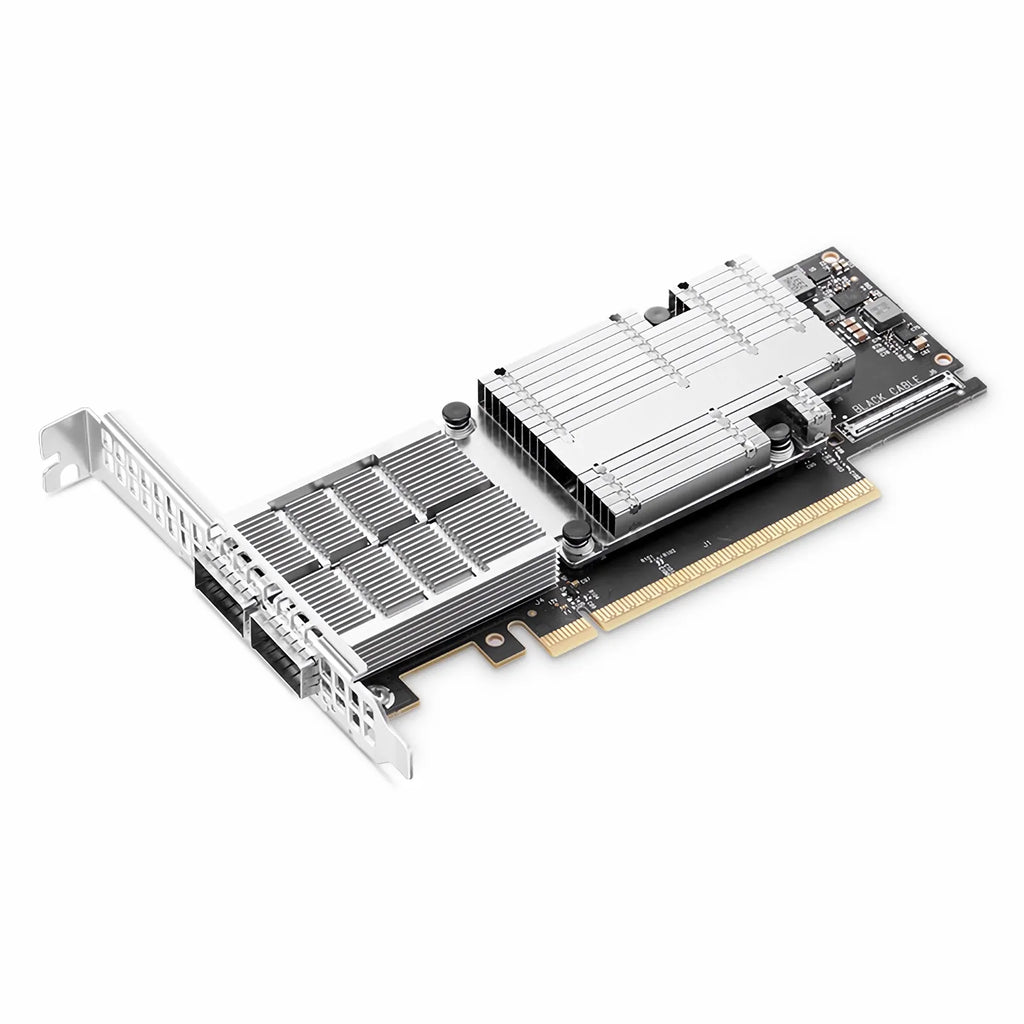

The NVIDIA MCX755106AC-HEAT is a ConnectX-7 VPI adapter card with two QSFP112 ports. It supports InfiniBand at up to NDR200 200Gb/s and Ethernet at up to 200GbE, with Ethernet as the default mode. It connects over PCIe Gen 5.0 x16 and is compatible with Gen 4.0 and Gen 3.0. Both crypto and Secure Boot are enabled. The card is Socket Direct ready, with an optional additional PCIe x16 Gen 4.0 connection through an auxiliary card that is sold separately. It comes in a half-height, half-length form factor with a tall bracket.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | NVIDIA |
| MPN | MCX755106AC-HEAT |
| NVIDIA SKU | 900-9X7AH-0079-DTZ |
| Product Type | InfiniBand / Ethernet Adapter Card, Socket Direct Ready |
| Controller | ConnectX-7 |
| Form Factor | PCIe HHHL, 2.71 x 6.6 in (68.90 x 167.65mm) |
| Ports | 2 x QSFP112 |
| InfiniBand Rates | NDR200/HDR/HDR100/EDR/FDR/SDR |
| Ethernet Rates | Up to 200GbE (default) |
| Host Interface | PCIe Gen 4.0/5.0 @ 16/32GT/s x16 |
| Socket Direct | Optional PCIe x16 Gen 4.0 via auxiliary card (sold separately) |
| Secure Boot | Enabled |
| Crypto | Enabled |
| Bracket | Tall bracket |
| Typical Power (passive cables, Gen 5.0 x16) | 25.9W |
| Operating Temperature | 0Β°C to 55Β°C |
| Non-Operating Temperature | -40Β°C to 70Β°C |
| Humidity | 10%β85% operating |
| Altitude | 3050m |
| Safety / EMC | CB, cTUVus, CE / CE, FCC, VCCI, ICES, RCM, KC |
| Compliance | RoHS |
| Lifecycle | Mass production |
