Description

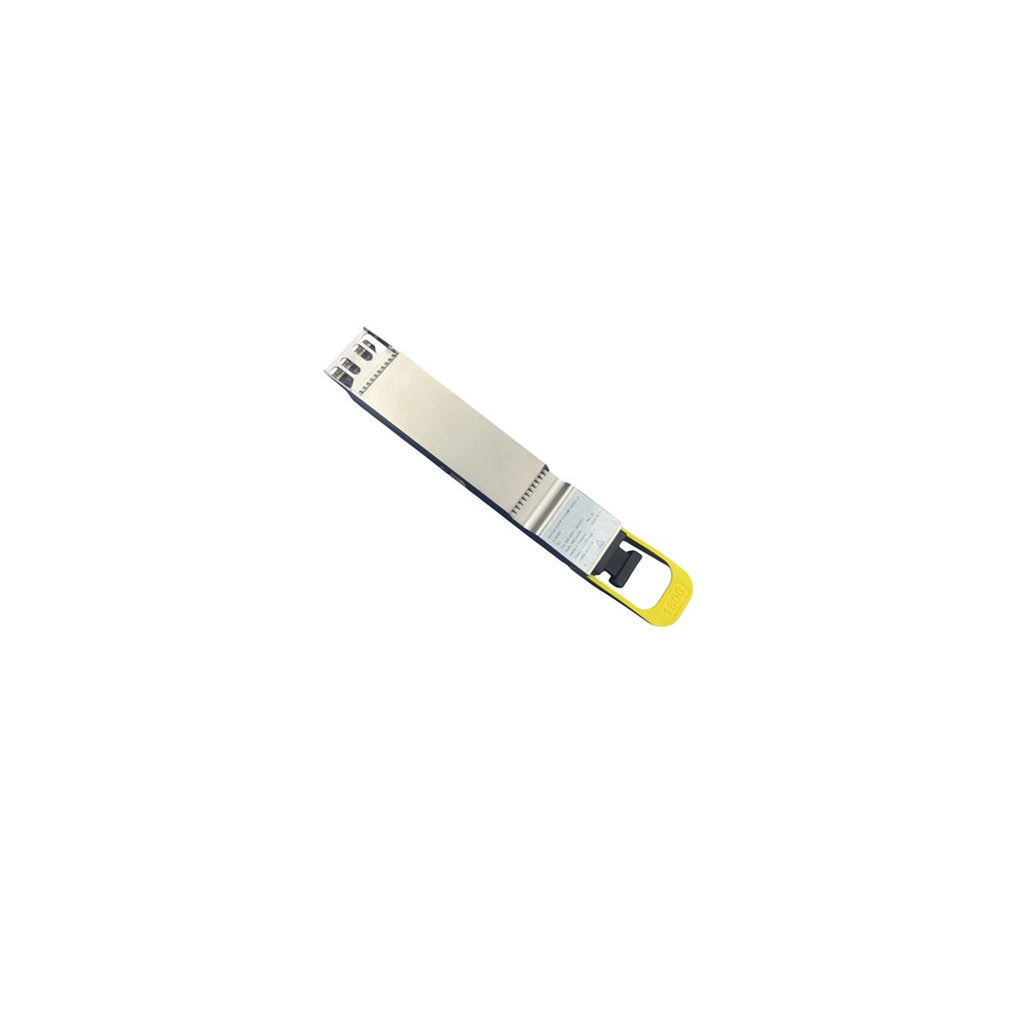

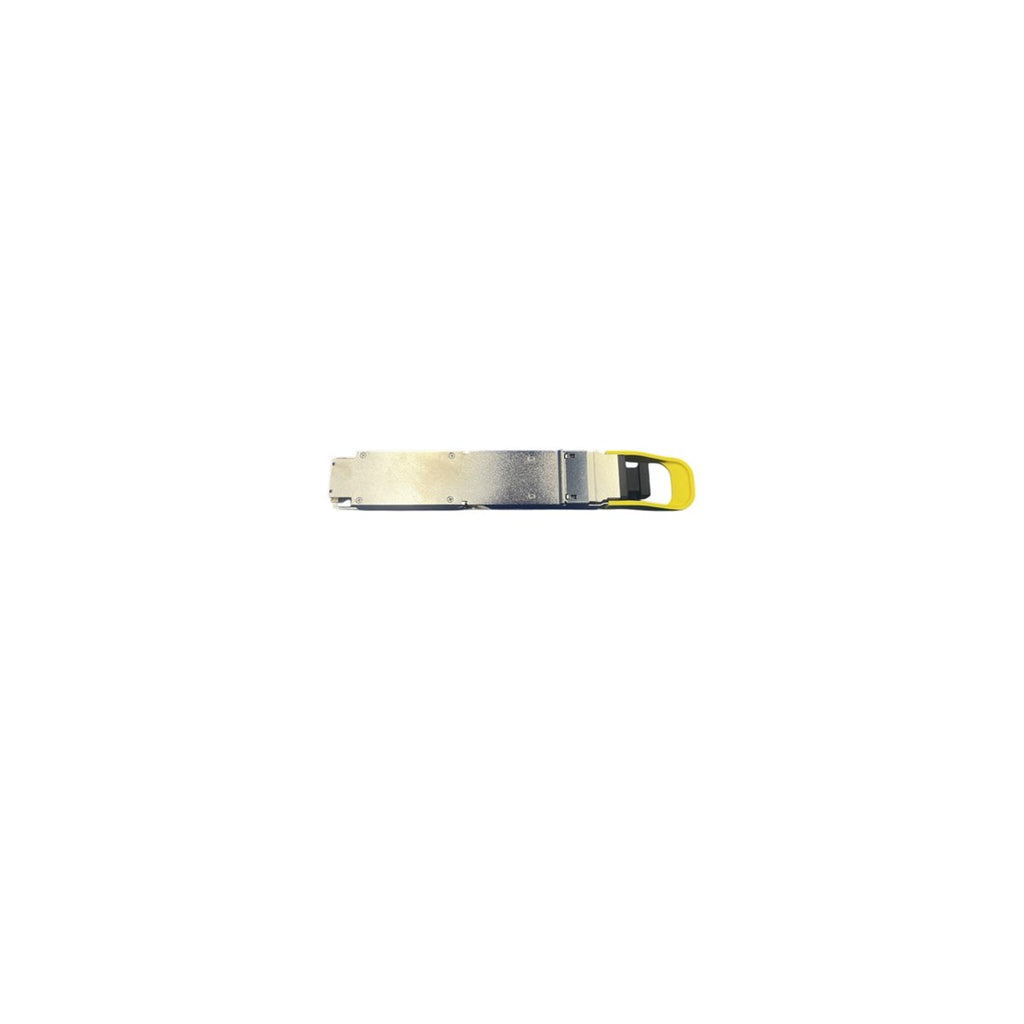

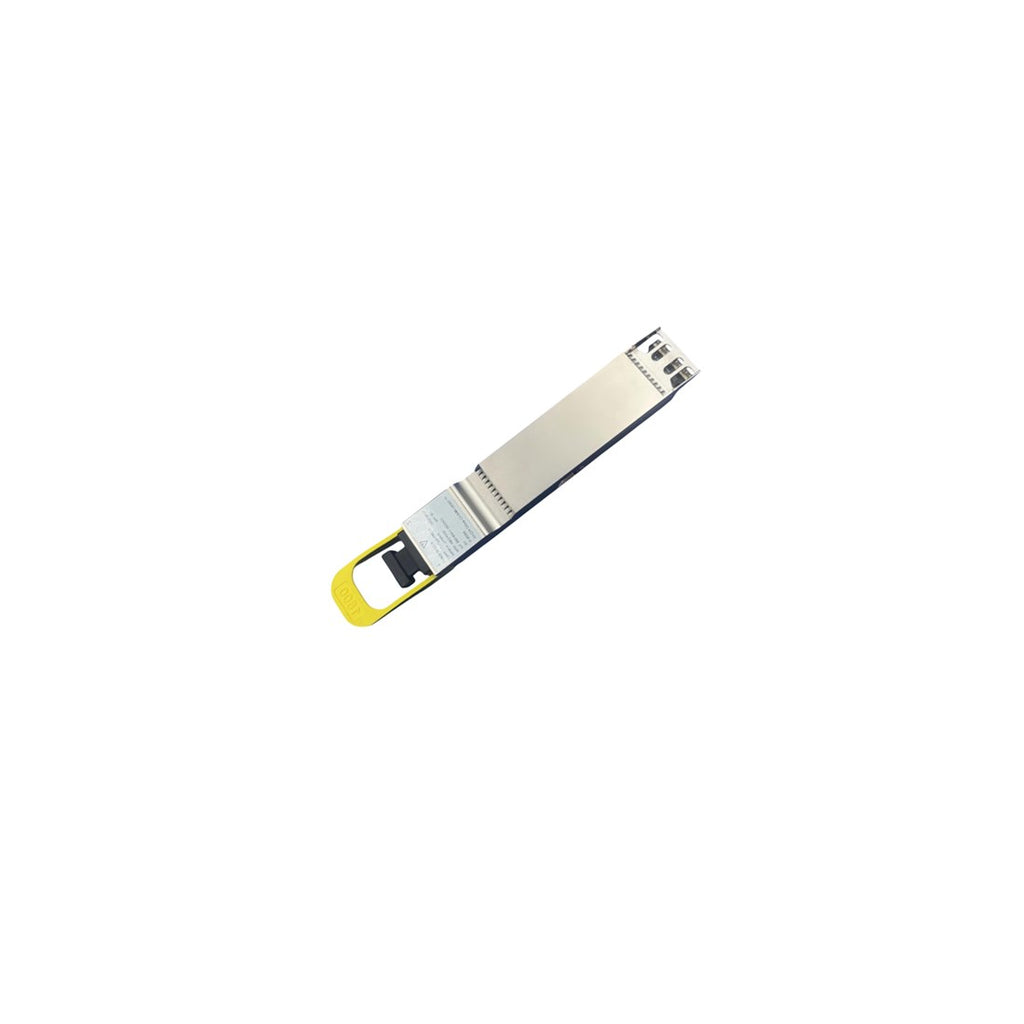

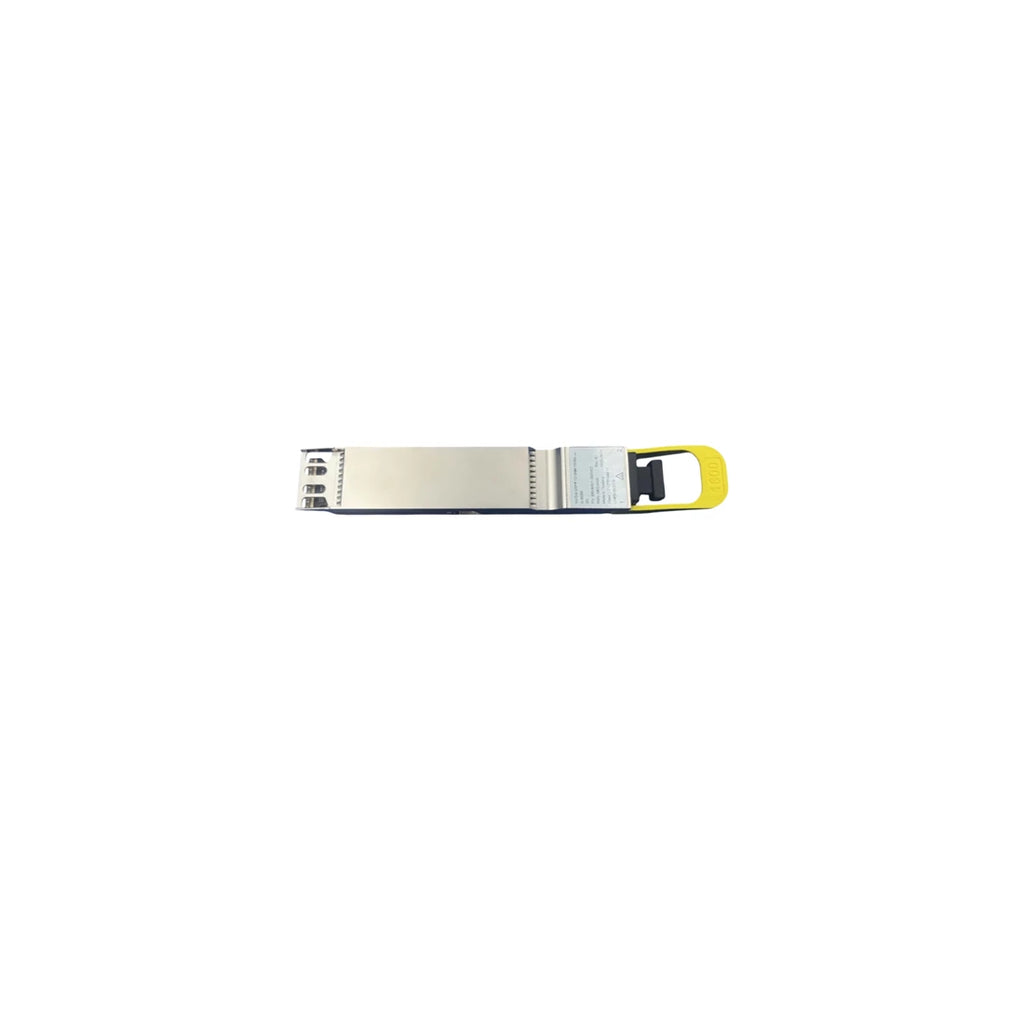

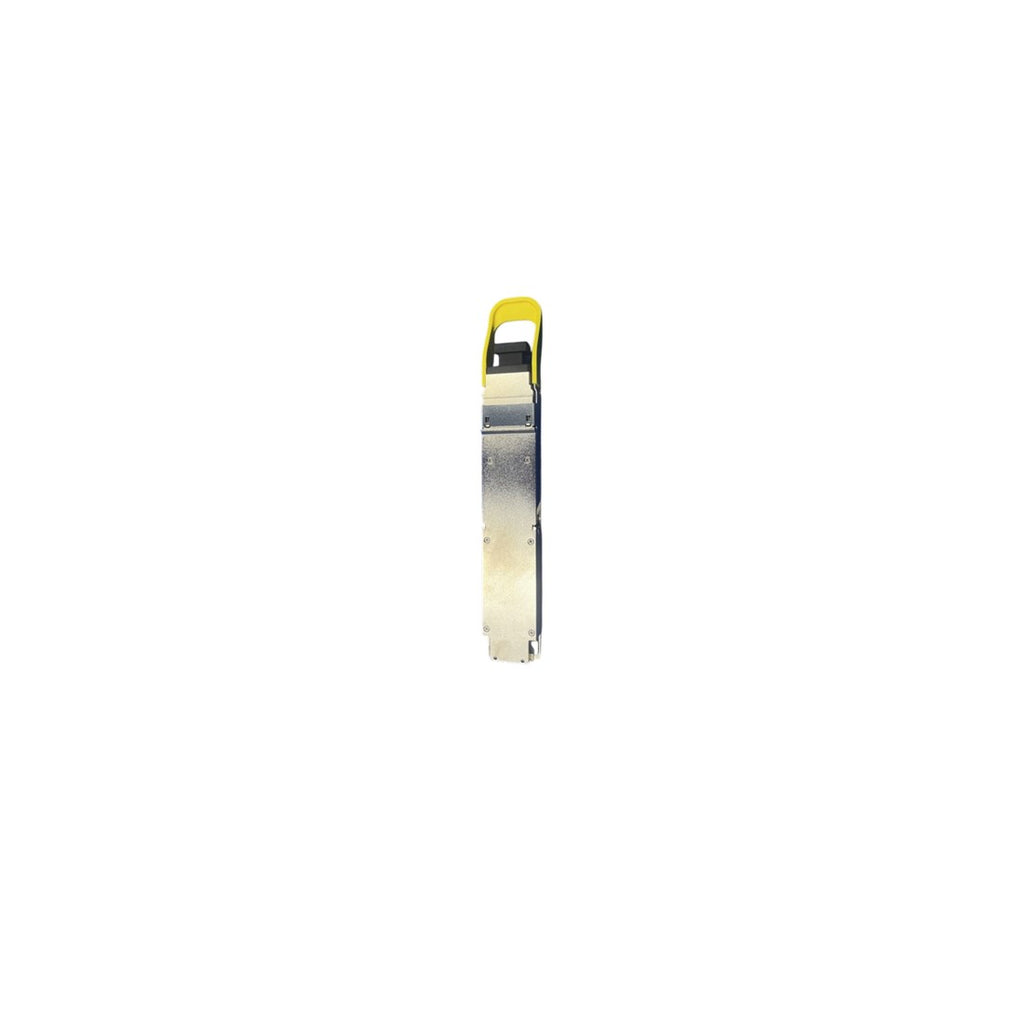

The NVIDIA 980-9IAH1-00XM00 (MMS4A00) is a 1600Gb/s twin-port OSFP 2xDR4 single-mode transceiver supporting XDR 800Gb/s InfiniBand. It uses 8 channels of 200G-PAM4 electrical signaling and two 4-channel 200G-PAM4 optical ports over dual MPO-12/APC connectors at 1310nm. It reaches up to 500m, a figure that assumes two optical patch panels in the link. This finned-top (integrated heat sink) version lets the Quantum-X800 QM3400 switch support 144 ports of 800Gb/s. It is used in Quantum-3 air-cooled and liquid-cooled switches.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | NVIDIA |
| MPN | 980-9IAH1-00XM00 |
| Legacy OPN | MMS4A00 |
| Product Type | Twin-Port OSFP Optical Transceiver, Single-Mode |
| Data Rate | 1600Gb/s (2x 800Gb/s XDR) |
| Electrical Interface | 8 x 200G-PAM4 |
| Optical Interface | 2x DR4, 200G-PAM4 |
| Signaling Rate per Lane | 106.25 GBd |
| Wavelength | 1311nm nominal (1304.5–1317.5nm) |
| Optical Connectors | 2 x MPO-12/APC |
| Reach | Up to 500m |
| Form Factor | OSFP, finned top (IHS) |
| Max Power | 33.5W (2W low-power mode) |
| Supply Voltage | 3.135–3.465V (3.3V typical) |
| Operating Case Temperature | 20°C to 64°C |
| Storage Temperature | -40°C to 85°C |
| Management | CMIS 4.0; secure firmware boot and update |
| Laser Safety | Class 1 |
| Hot Pluggable | Yes |
| Compliance | RoHS |
