Description

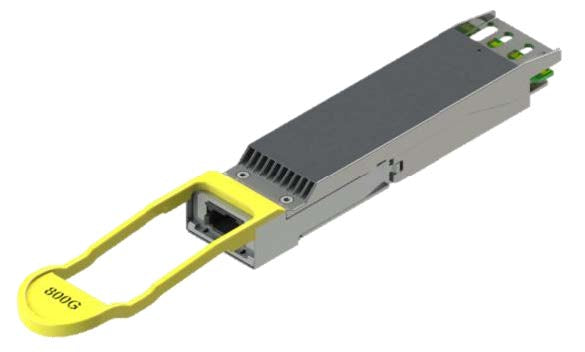

The NVIDIA MMS4X00-NM16 is an 800Gb/s Ethernet twin-port OSFP DR8 single-mode transceiver. It uses eight 100G-PAM4 channels over a single MPO-16/APC connector and 8 single-mode fibers. It reaches up to 500m, a figure that assumes two optical patch panels in the link. Its twin internal transceiver engines enable 64 ports of 800Gb/s in a 64-cage Spectrum-4 switch, and the finned-top shell provides the extra cooling these air-cooled switches require. Its main use is linking Spectrum-4 switches together.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | NVIDIA |
| MPN | MMS4X00-NM16 |
| NVIDIA SKU | 980-9I30J-F4NM00 |
| Product Type | Twin-Port OSFP Optical Transceiver, Single-Mode |
| Protocol | Ethernet |
| Data Rate | 800Gb/s |
| Optical Interface | DR8, 8 x 100G-PAM4 |
| Signaling Rate per Lane | 53.125 GBd |
| Laser | 1310nm EML |
| Optical Connector | Single MPO-16/APC |
| Reach | Up to 500m |
| Form Factor | OSFP, finned top (OSFP MSA Rev 1.12) |
| Max Power | 17W (1.5W low-power sleep mode) |
| Supply Voltage | 3.3V |
| Operating Case Temperature | 0Β°C to 70Β°C |
| Storage Temperature | -40Β°C to 85Β°C |
| Management | CMIS |
| Laser Safety | Class 1 |
| Hot Pluggable | Yes |
| Compliance | RoHS |
| Typical Use | Linking air-cooled Spectrum-4 switches |
