Description
The Fluke Networks OFP2-200-S1490 OptiFiber Pro HDR OTDR is engineered for outside plant, FTTx, and PON applications, offering exceptional dynamic range and multi-wavelength capability for precise fiber certification and troubleshooting. Featuring wavelengths of 1310 nm, 1490 nm, and 1550 nm, this model meets demanding HDR requirements while ensuring compliance with industry standards.
With the intuitive Taptive™ touchscreen interface, even novice technicians can perform expert-level testing using Auto OTDR mode, while advanced users benefit from Expert Manual Mode for fine-tuned analysis. SmartLoop™ technology enables automated bi-directional testing of two fibers in a single run, cutting test time in half and delivering averaged results instantly.
The OFP2-200-S1490 is part of the Versiv™ family, ensuring compatibility with copper, Tier 1 fiber certification, and inspection modules. LinkWare™ Live integration allows for real-time job tracking, result sharing, and centralized report management—streamlining workflows and reducing downtime.
| Feature | Specification |
|---|---|
| Fiber Type | Singlemode |
| Wavelengths | 1310 nm, 1490 nm, 1550 nm |
| Dynamic Range (Typical) | 1310 nm: 42 dB, 1490 nm: 41 dB, 1550 nm: 41 dB |
| Event Dead Zone | 0.7 m (typical) |
| Attenuation Dead Zone | 4 m (typical) |
| PON Dead Zone | 30 m (typical) |
| Reflectance Range | -14 dB to -70 dB (typical) |
| Sampling Resolution | 3 cm to 2 m |
| Sampling Points | Up to 129,000 |
| OTDR Modes | Auto, Auto PON, Manual, Manual PON |
| SmartLoop™ Support | Yes, with on-board bi-directional averaging |
| Macrobend Detection | Yes |
| Visual Fault Locator (VFL) | Yes |
| Interface | Taptive™ touchscreen |
| Connectivity | Integrated Wi-Fi |

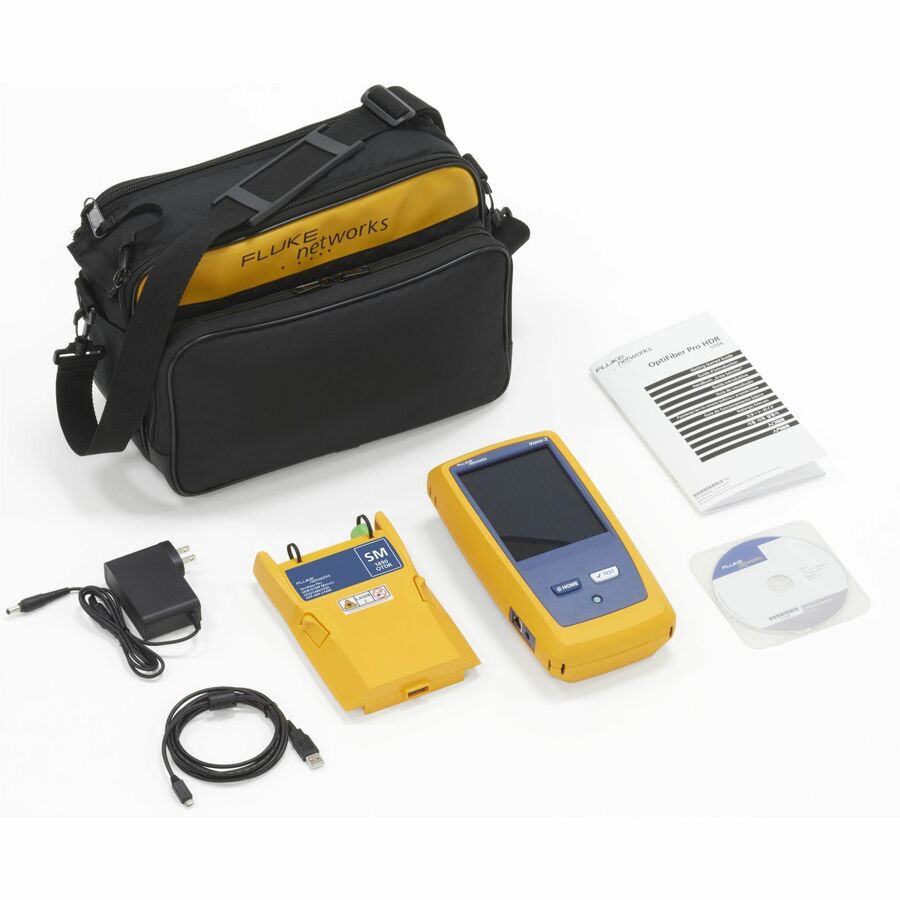

| In the Box | Versiv 2 mainframe, OFP2-200-S1490 module, shoulder strap, USB cable, carry case, AC charger, manuals, calibration certificate |
