Description

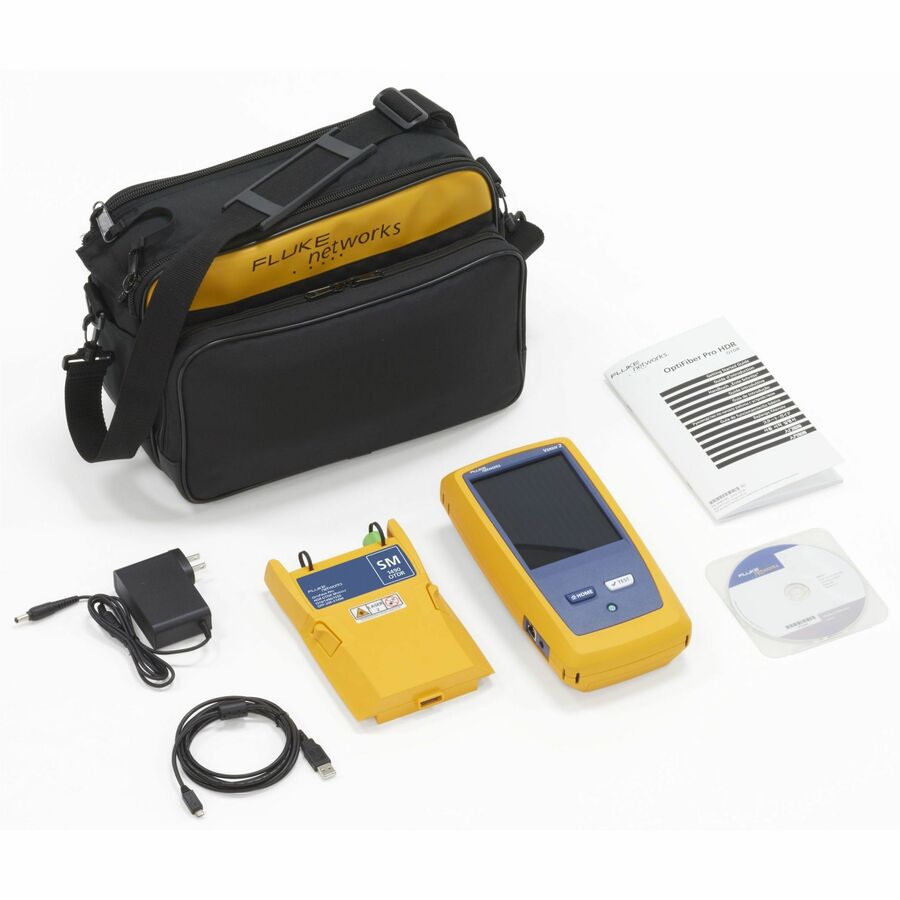

The Fluke Networks OFP2-200-S1625 OptiFiber Pro HDR is a high-performance OTDR solution designed for outside plant, FTTx, PON, and access network testing. Featuring advanced high dynamic range (HDR) capabilities and three wavelengths—1310, 1550, and 1625 nm—this model delivers exceptional accuracy and speed for both novice and expert technicians.
With the Taptive™ touchscreen interface, setup and operation are intuitive, while the Auto OTDR mode optimizes parameters for quick, precise results. The SmartLoop™ feature enables bi-directional testing of two fibers in a single pass, cutting test times in half. EventMap™ technology provides clear, expert-level analysis of splices, connectors, bends, and splitters.
As part of the Versiv™ platform, the OFP2-200-S1625 supports unified fiber, copper, and Tier 1 certification workflows, with LinkWare™ Live for cloud-based project tracking and reporting. Its 42 dB dynamic range ensures long-distance testing without sacrificing detail, while ultra-short dead zones enable accurate troubleshooting in dense connection environments. Built-in Visual Fault Locator (VFL) and advanced macrobend detection further enhance fault identification.
Applications:
-
FTTx and PON qualification
-
Outside plant troubleshooting
-
Access network certification
-
Enterprise and campus backbones
| Specification | Details |
|---|---|
| Wavelengths | 1310 nm ± 25 nm, 1550 nm ± 20 nm, 1625 nm ± 20 nm |
| Dynamic Range | 1310 nm: 42 dB, 1550 nm: 41 dB, 1625 nm: 40 dB (typical) |
| Event Dead Zone | 0.7 m (typical) |
| Attenuation Dead Zone | 4 m (typical) |
| PON Dead Zone | 30 m (typical) |
| Reflectance Range | -14 dB to -70 dB (typical) |
| Sampling Resolution | 3 cm to 2 m |
| Sampling Points | Up to 129,000 |
| Pulse Widths | 5 ns to 20,000 ns |
| Test Time | Quick Test: 3 sec/wavelength; Auto: 5 sec/wavelength |
| Fiber Type | Singlemode |
| OTDR Port Connector | Cleanable APC ferrule with removable SC adapter |
| Special Features | SmartLoop bi-directional testing, EventMap, macrobend detection, Expert Manual Mode, built-in VFL |
| Dimensions (L x W x H) | 16.00 x 10.75 x 8.50 in |
| Weight | Manufacturer standard |
| Country of Origin | United States |
