Description

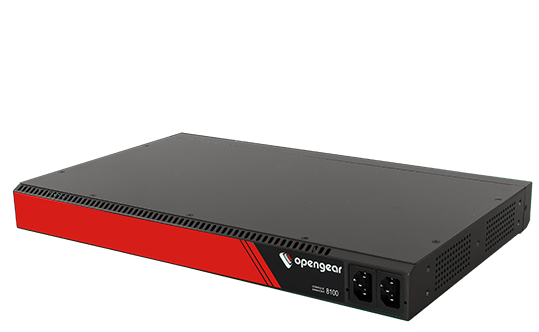

The Opengear CM8116-DDC Console Manager delivers secure, reliable out-of-band management for critical IT infrastructure. Designed for data centers and remote facilities, it features 16 straight serial ports, dual Gigabit Ethernet, and dual DC power inputs for redundancy. Built on a 1.6GHz ARM dual-core processor with 2GB memory and 32GB flash storage, it supports Docker containers and Python scripting for automation, along with Trusted Platform Module (TPM) 2.0 for enhanced security.
Engineered for resilience, the CM8116-DDC provides administrators with always-available access to networking gear, servers, and power infrastructure. With passive cooling, rackmount design, and advanced console management features, this model is ideal for secure, scalable, and automated remote management.
| Category | Specification |
|---|---|
| Model | Opengear CM8116-DDC |
| Form Factor | 1RU Rackmount |
| Serial Ports | 16 x RJ45 RS-232, Cisco straight pinout (X2), 50–230,400bps |
| Network Ports | 2 x 10/100/1000 Ethernet with 1500V AC isolation & ESD protection |
| Console Port | 1 x RJ45 RS-232 Console Port (Cisco rolled X1 pinout) |
| USB Ports | 2 x USB 3.0 (for storage or console management) |
| CPU | ARM Cortex-A9 Dual-Core 1.6GHz (Marvell 88F6820) |
| Memory | 2GB DDR4 SDRAM |
| Storage | 32GB eMMC flash |
| Security | TPM 2.0, AAA (TACACS+, RADIUS, Active Directory/OpenLDAP), embedded firewall, VPN |
| Automation | Docker support, Python, Perl, Bash, API access, ZTP, SNMP |
| Remote Access | Dual Ethernet aggregation, redundancy, auto-failover, IPv6, web UI |
| Power Input | Dual DC +/- 40V to 72V (DDC model) |
| Power Consumption | <15W (51 BTU/h) typical |
| Cooling | Passive cooling, forward or reverse mount |
| Operating Temp | 5°C to 50°C (41°F to 122°F) |
| Storage Temp | -30°C to +60°C (-22°F to 140°F) |
| Humidity | 5% to 90% non-condensing |
| Dimensions (W x D x H) | 17.3" x 9.25" x 1.75" (440 x 235 x 44 mm) |
| Weight | 9.5 lbs (4.5 kg) |
| Certifications | FCC, CE, RoHS, IEC 60950/62368, EN/IEC standards |
| MTBF | 150,000 hours |
| Warranty | 5 years hardware replacement (requires at least 1-year Foundation Support) |
