Description

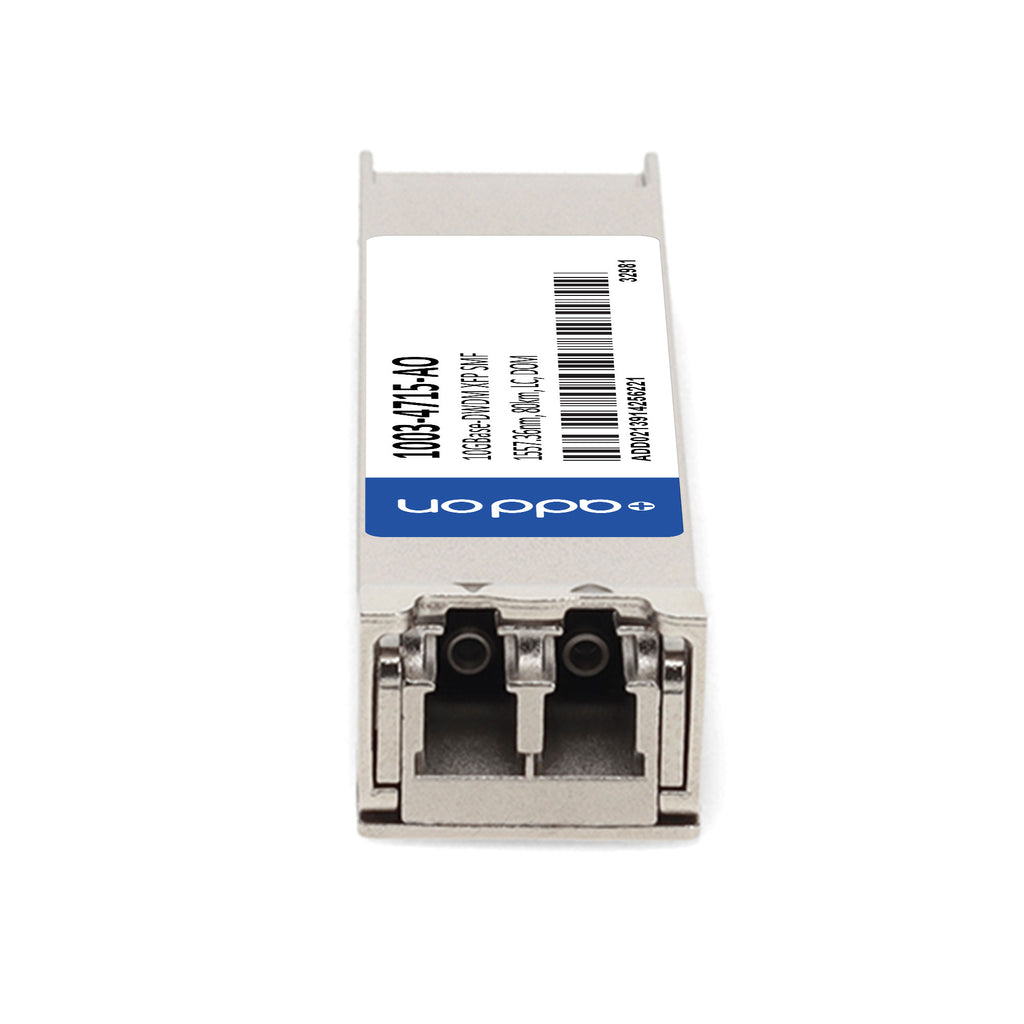

The AddOn Optelian® 1003-4715-AO is a high-performance, TAA-compliant 10GBase-DWDM XFP transceiver designed to deliver reliable data transmission up to 80 km over single-mode fiber (SMF) using a 1557.36 nm wavelength. Built to provide seamless interoperability with the equivalent Optelian® module, this transceiver supports 10 Gigabit Ethernet and 8G/10G Fibre Channel applications, making it ideal for access, metro, and enterprise networks.
It features a temperature-stabilized EML transmitter, APD receiver, and digital optical monitoring (DOM) for real-time performance insights. The unit is hot-pluggable, RoHS-compliant, and offers excellent EMI shielding with a robust metal housing. Rigorously tested for full compatibility, this transceiver ensures plug-and-play deployment and exceptional network performance.
| Specification | Description |
|---|---|
| Part Number | 1003-4715-AO |
| Form Factor | XFP |
| Data Rate | 10 Gbps |
| Reach/Distance | Up to 80 km |
| Wavelength | 1557.36 nm |
| Frequency Spacing | 100 GHz |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Transmitter Type | EML (Electro-Absorption Modulated Laser) |
| Receiver Type | APD (Avalanche Photodiode) |
| Digital Optical Monitoring (DOM) | Supported |
| Hot Pluggable | Yes |
| Operating Temperature | 0°C to 70°C |
| Power Supply Voltage | 3.135 V to 3.465 V / 4.75 V to 5.25 V |
| Power Consumption | 3.5 W (Typical) |
| Optical Output Power | 0 to +5 dBm |
| Receiver Sensitivity | ≤ -23 dBm |
| Receiver Overload | -8 dBm |
| Compliance Standards | SFF-8432, SFF-8472, RoHS, FCC Part 15, EN55022, IEC 61000-4-3 |
| Applications | 10G Ethernet DWDM, 8G/10G Fibre Channel, Access, Metro, Enterprise |
| Warranty | Limited Lifetime Warranty |
