Description

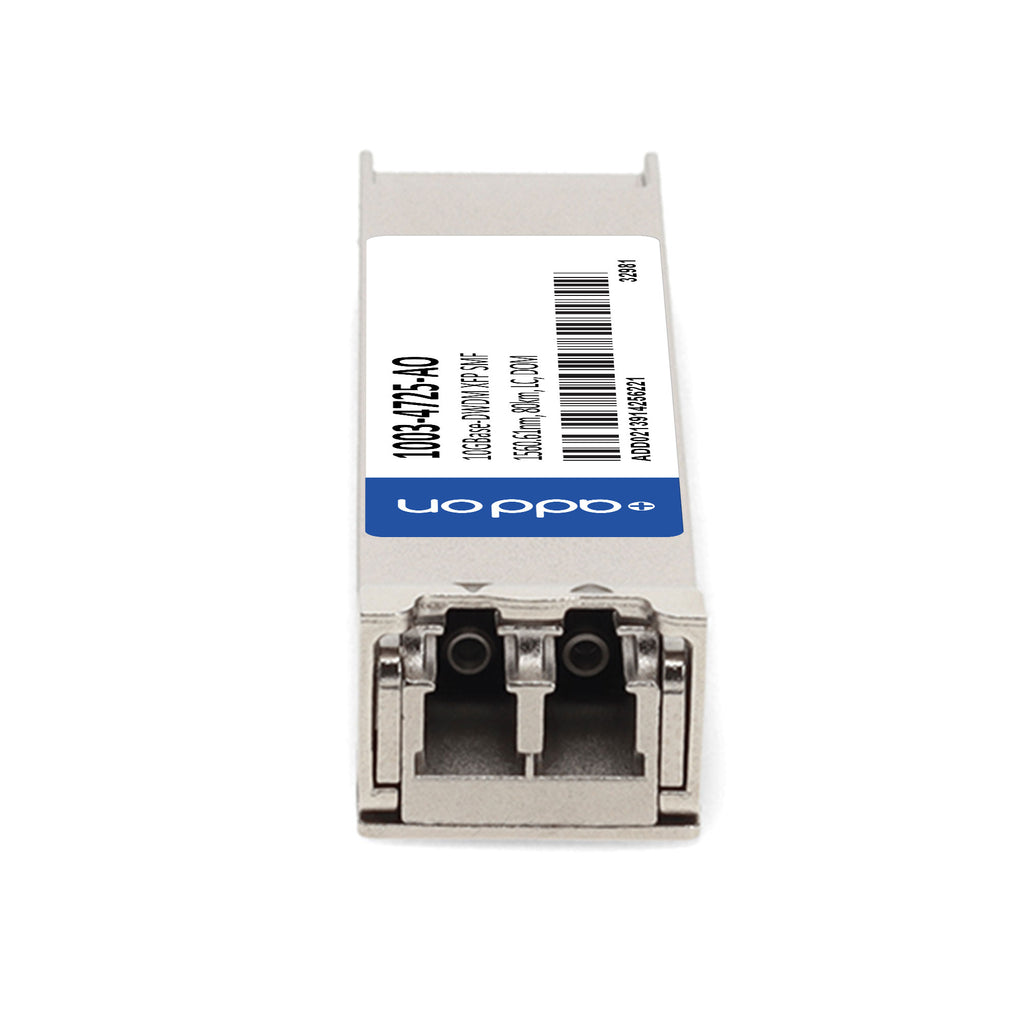

The AddOn Optelian® 1003-4725-AO is a high-performance, TAA-compliant 10GBase-DWDM XFP transceiver designed for reliable and cost-effective long-distance optical networking. Operating over single-mode fiber (SMF) with a center wavelength of 1560.61nm on the 100GHz ITU-T grid, this hot-swappable module delivers up to 80km transmission range through an LC duplex connector. Equipped with a temperature-stabilized EML transmitter and APD receiver, it ensures stable signal integrity and optimal performance for applications including 8x/10x Fibre Channel, 10x Gigabit Ethernet, and access, metro, and enterprise networks. Fully compliant with INF-8077i standards, this transceiver supports Digital Optical Monitoring (DOM) for real-time diagnostics and is programmed and tested to guarantee seamless interoperability with Optelian® equipment.
| Specification | Details |
|---|---|
| Brand | AddOn |
| SKU | 1003-4725-AO |
| Compatibility | Optelian® 1003-4725 |
| Form Factor | XFP |
| Data Rate | 10GBase-DWDM |
| Wavelength | 1560.61nm (100GHz ITU-T Channel 21) |
| Transmission Distance | Up to 80km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Transmitter Type | Temperature-stabilized EML |
| Receiver Type | APD Receiver |
| DOM Support | Yes |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Power Supply Voltage | 3.3V / 5V |
| Power Consumption | 3.5W (typical) |
| Optical Output Power | 0 to 5 dBm |
| Receiver Sensitivity | ≤ -23 dBm |
| Receiver Overload | -8 dBm |
| Bit Rate | Up to 11.3 Gbps |
| Compliance Standards | INF-8077i, MIL-STD-883E, IEC 61000-4-3, FCC Part 15, EN55022:2010, FDA 21CFR, EN60950-1, IEC 60825-1/2 |
| Hot Pluggable | Yes |
| ESD Protection | Excellent |
| EMI Shielding | Metal Housing with Low EMI |
| Applications | 8x/10x Fibre Channel, 10x Gigabit Ethernet over DWDM, Access, Metro, and Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
| Compliance | TAA, RoHS Compliant and Lead-Free |
