Description

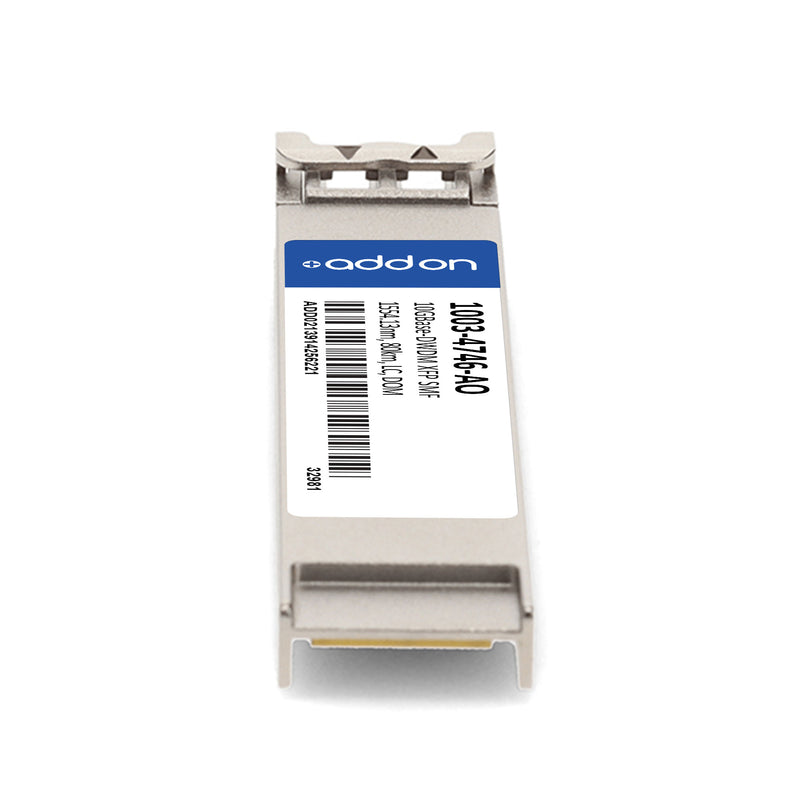

The AddOn Optelian® 1003-4746 Compatible TAA 10GBase-DWDM XFP Transceiver delivers reliable, high-performance 10G DWDM connectivity for long-distance fiber networks. Designed for up to 80 km transmission over single-mode fiber (SMF), this hot-pluggable XFP module operates on a 1554.13nm wavelength with a 100GHz channel spacing. It features a temperature-stabilized EML transmitter, APD receiver, and supports Digital Optical Monitoring (DOM) for real-time diagnostics. Engineered for seamless interoperability, it is 100% compatible with the equivalent Optelian® transceiver, making it ideal for 10G Ethernet, Fibre Channel, and metro or enterprise applications. Built to the highest standards, the transceiver complies with INF-8077i, RoHS, and TAA requirements and includes a limited lifetime warranty for assured reliability and performance.
| Specification | Description |
|---|---|
| Part Number | 1003-4746-AO |
| Form Factor | XFP |
| Data Rate | Up to 11.3 Gbps |
| Reach / Distance | Up to 80 km |
| Wavelength | 1554.13 nm |
| Channel Spacing | 100 GHz |
| Connector Type | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Optical Power (TX) | 0 to +5 dBm |
| Receiver Sensitivity (RX) | ≤ -23 dBm |
| Receiver Overload | -8 dBm |
| Transmitter Extinction Ratio | ≥ 9 dB |
| Receiver Wavelength Range | 1260 nm – 1620 nm |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Power Supply Voltage | 3.135 V – 3.465 V (3.3V), 4.75 V – 5.25 V (5V) |
| Power Consumption | ≤ 3.5 W |
| Digital Diagnostics (DOM) | Supported |
| Applications | 10G Ethernet, 8G/10G Fibre Channel, Metro/Enterprise DWDM |
| Compliance | INF-8077i, TAA, RoHS, MIL-STD-883E, IEC 61000-4-3, FCC Part 15 Subpart B |
| Hot Pluggable | Yes |
| Warranty | Limited Lifetime Warranty |
