Description

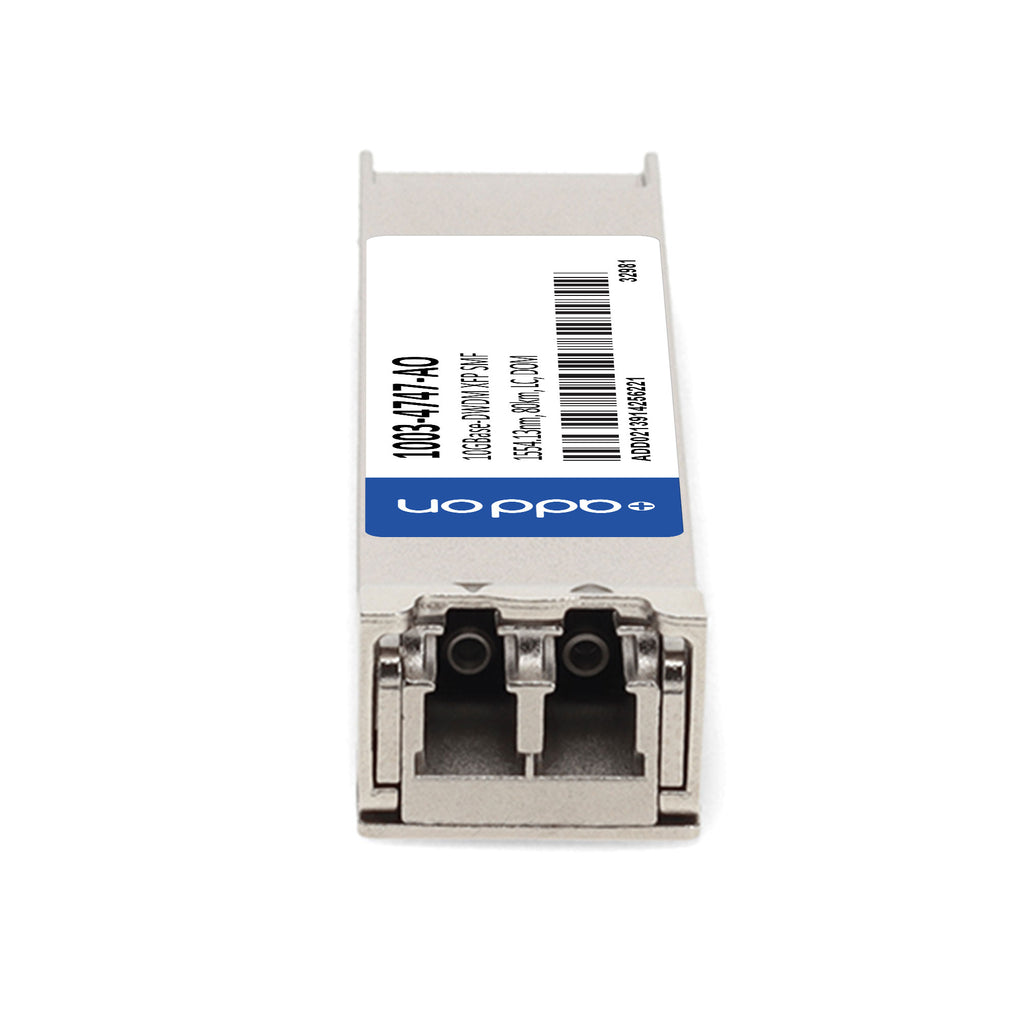

The AddOn Optelian® 1003-4747 Compatible 10GBase-DWDM XFP Transceiver delivers high-performance optical connectivity for metro, access, and enterprise networks. Operating over single-mode fiber (SMF) with a wavelength of 1554.13nm, this transceiver supports data rates up to 10Gbps and transmission distances up to 80km. Designed with a temperature-stabilized EML transmitter and APD receiver, it ensures stable performance and signal integrity over long distances.
The hot-pluggable form factor allows for seamless installation and replacement without disrupting network operations, while Digital Optical Monitoring (DOM) provides real-time access to key operating parameters. Fully compliant with INF-8077i and major safety and EMI standards, this module is engineered for compatibility and reliability in demanding DWDM environments. TAA compliance and a limited lifetime warranty further ensure performance and long-term support.
| Specification | Details |
|---|---|
| SKU | 1003-4747-AO |
| Form Factor | XFP |
| Data Rate | 10GBase-DWDM |
| Wavelength | 1554.13 nm |
| Channel Spacing | 100 GHz |
| Transmission Distance | Up to 80 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Transmitter Type | Temperature-stabilized EML |
| Receiver Type | APD |
| Digital Optical Monitoring (DOM) | Supported |
| Hot Pluggable | Yes |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Power Supply Voltage | 3.3V / 5V |
| Power Consumption | 3.5 W (typ.) |
| Receiver Sensitivity | -23 dBm |
| Receiver Overload | -8 dBm |
| Optical Power (Avg.) | 0 to +5 dBm |
| Extinction Ratio | ≥ 9 dB |
| Compliance | INF-8077i, FCC Part 15B, EN55022:2010, FDA 21CFR, EN/IEC 60825-1/2, RoHS 2.0 |
| Applications | 8x/10x Fibre Channel, 10x Gigabit Ethernet over DWDM, Access, Metro, Enterprise |
| TAA Compliant | Yes |
| Warranty | Limited Lifetime Warranty |
