Description

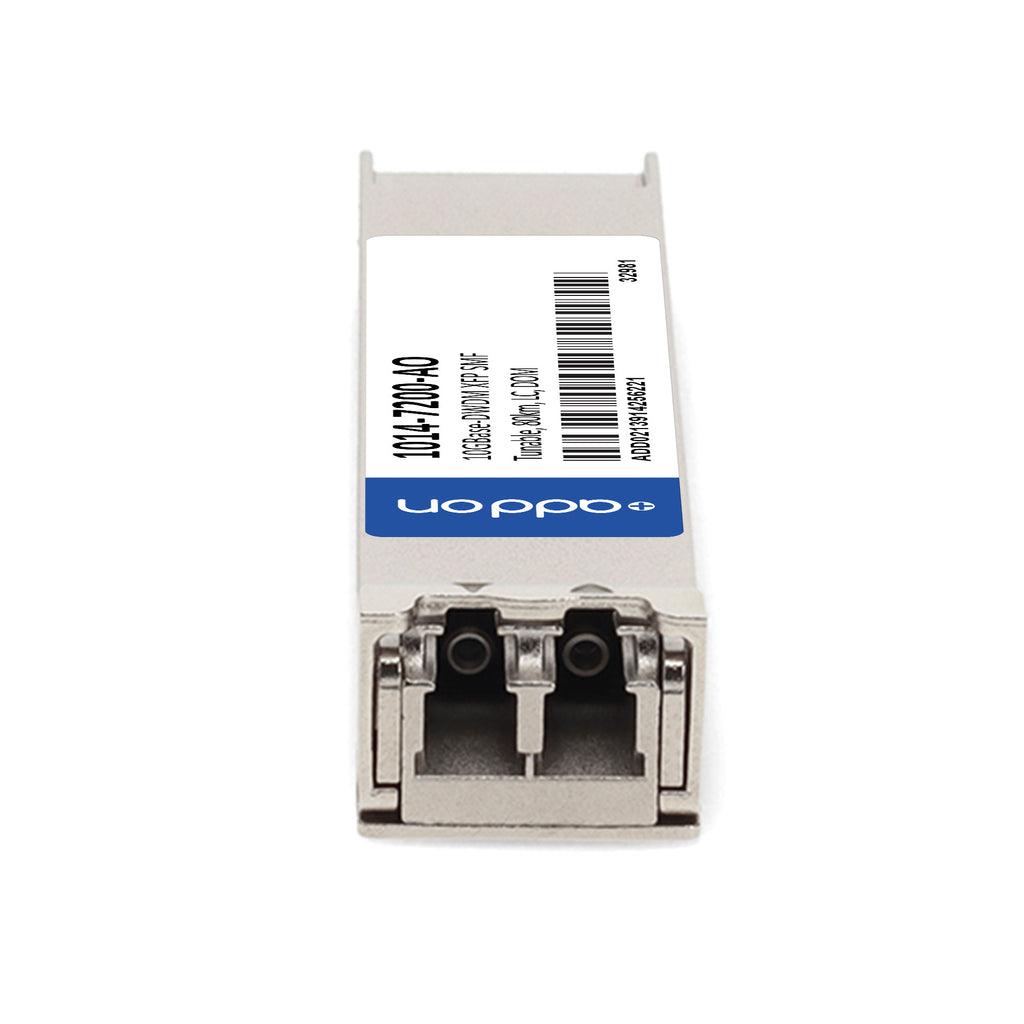

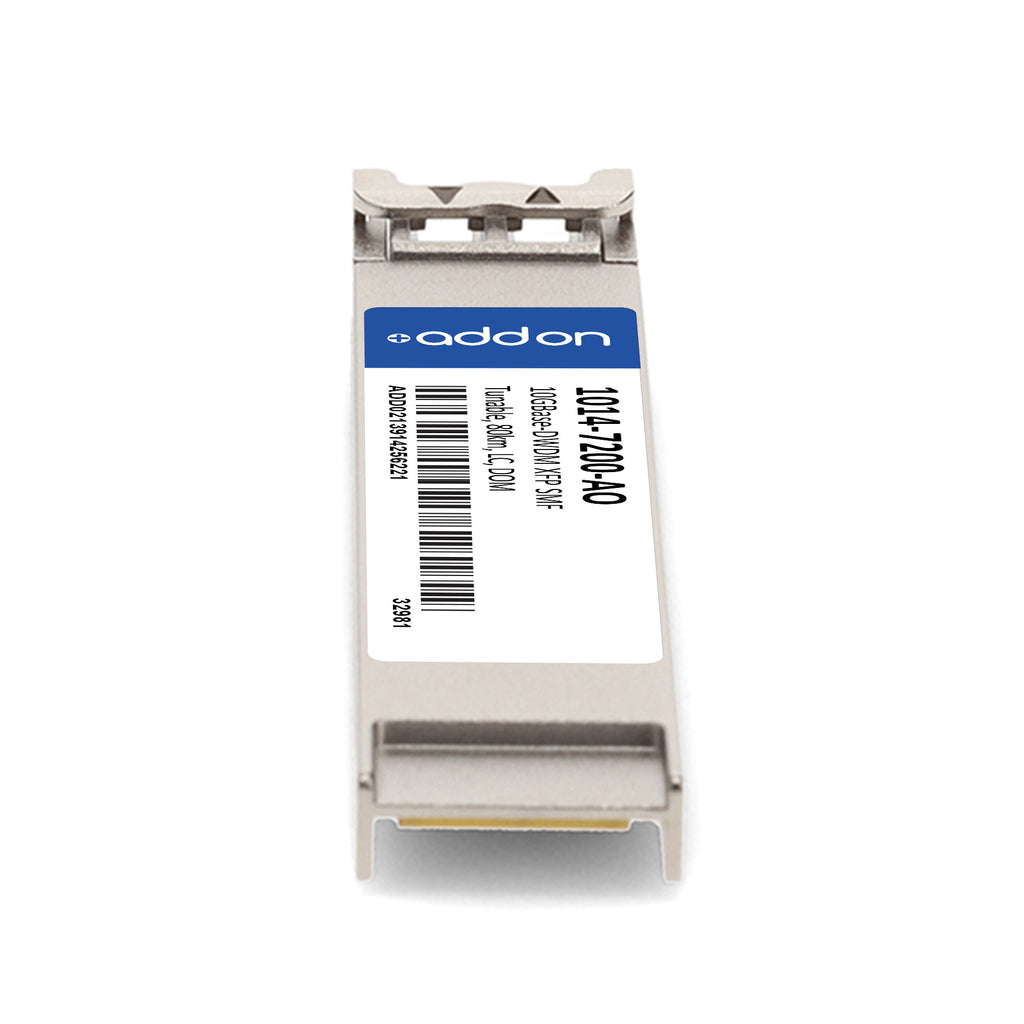

The AddOn Optelian® 1014-7200 Compatible TAA 10GBase-DWDM Tunable XFP Transceiver delivers high-performance, tunable DWDM connectivity for 10G Ethernet and 8G/10G Fibre Channel applications over single-mode fiber (SMF) at distances up to 80km. Designed for use in metro, access, and enterprise networks, this hot-swappable module features a duplex LC connector, supports 96 ITU channels on the 50GHz grid, and offers a data rate range of 9.95 to 11.35 Gb/s. With built-in Digital Optical Monitoring (DOM) for real-time diagnostics, excellent ESD protection, and compliance with INF-8077i and industry safety standards, it ensures seamless integration and reliable operation. Each transceiver is TAA compliant, rigorously tested for 100% compatibility, and backed by AddOn’s limited lifetime warranty.
| Specification | Details |
|---|---|
| Part Number | 1014-7200-AO |
| Form Factor | XFP |
| Data Rate | 9.95 – 11.35 Gb/s |
| Application | 8G/10G Fibre Channel, 10G Ethernet over DWDM |
| Fiber Type | Single-mode Fiber (SMF) |
| Wavelength | Tunable 191.35 – 196.10 THz (50GHz grid, 96 channels) |
| Connector Type | Duplex LC |
| Reach | Up to 80 km |
| Optical Transmit Power | -1 to +3 dBm |
| Receiver Sensitivity | ≤ -26 dBm |
| Max Receiver Input Power | -5 dBm |
| Extinction Ratio | ≥ 9.5 dB |
| Spectral Width | ≤ 0.5 nm |
| Side Mode Suppression Ratio (SMSR) | ≥ 35 dB |
| Digital Optical Monitoring (DOM) | Supported |
| Power Consumption | ≤ 2.5 W |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Compliance | INF-8077i, FCC Part 15, EN55022:2010, FDA 21CFR, EN60950-1, IEC 60825-1/2, RoHS 2.0 |
| ESD Protection | MIL-STD-883E, IEC 61000-4-3 |
| Hot Swappable | Yes |
| TAA Compliant | Yes |
