Description

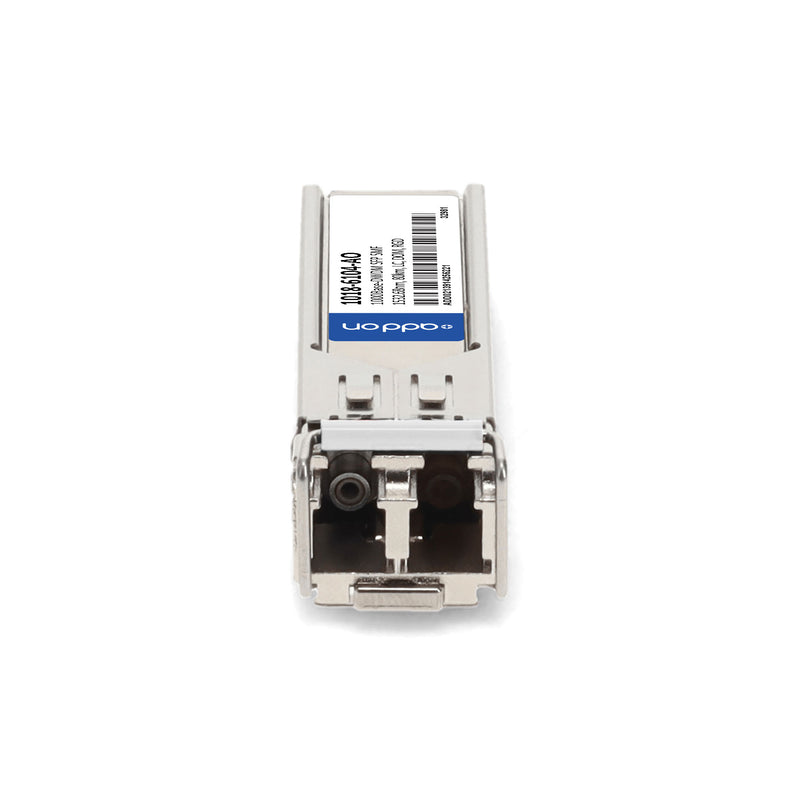

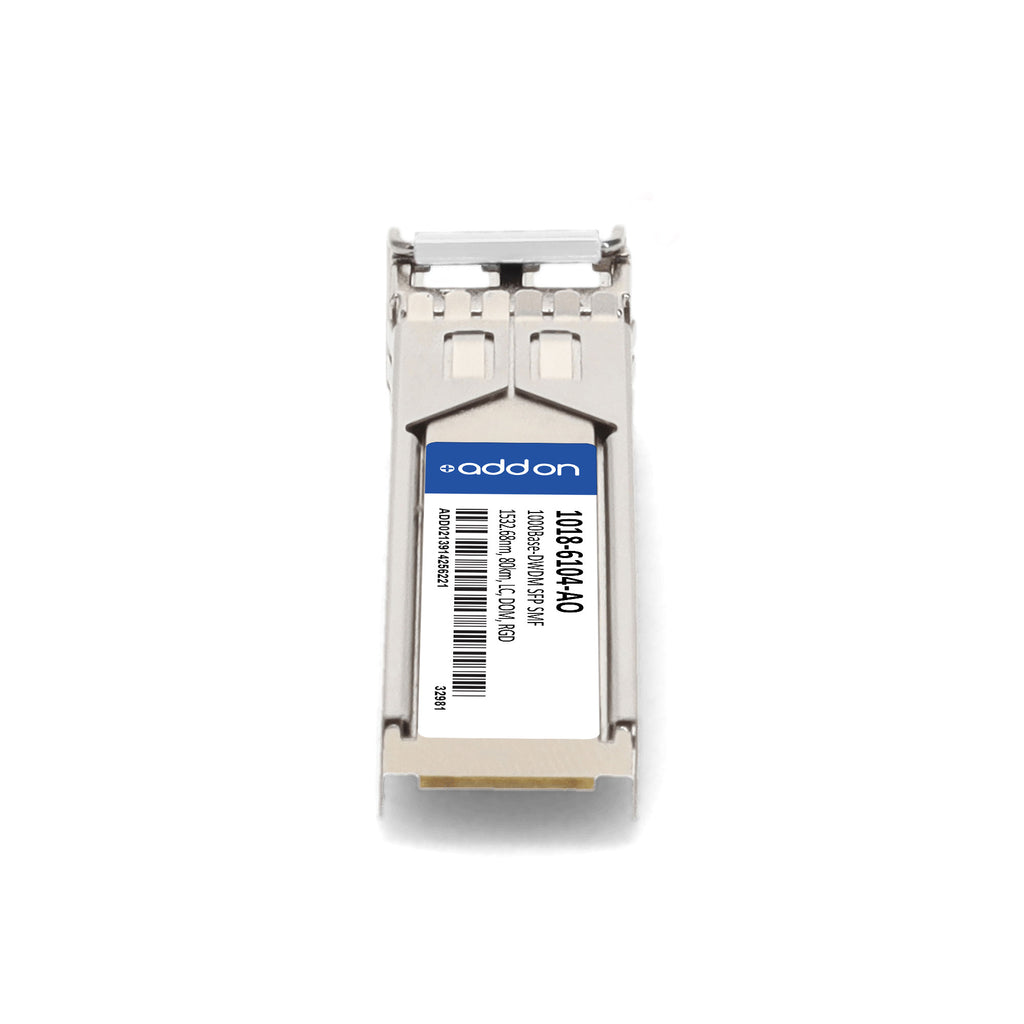

The AddOn Optelian® 1018-6104 Compatible TAA 1000Base-DWDM SFP Transceiver is a high-performance, hot-swappable optical module designed to deliver Gigabit Ethernet and Fibre Channel connectivity over dense wavelength-division multiplexing (DWDM) networks. Supporting up to 80km transmission over single-mode fiber (SMF) at a wavelength of 1532.68nm, this transceiver is ideal for metro, access, and enterprise network applications. It complies with INF-8074 and SFF-8472 standards and features digital optical monitoring (DOM) for real-time parameter tracking. Engineered for industrial environments with a wide operating temperature range (-40 to 85°C), it ensures reliable operation under demanding conditions. Each unit is uniquely serialized, extensively tested for interoperability, and backed by AddOn’s limited lifetime warranty, offering a cost-effective and fully compatible alternative to OEM transceivers.
| Specification | Details |
|---|---|
| SKU | 1018-6104-AO |
| Brand Compatibility | Optelian® |
| Form Factor | SFP (Small Form-Factor Pluggable) |
| Data Rate | 1000Base-DWDM (1.25 Gbps) |
| Wavelength | 1532.68 nm |
| Transmission Distance | Up to 80 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Digital Optical Monitoring (DOM) | Supported |
| Temperature Range | -40°C to 85°C (Industrial) |
| Optical Power (Tx) | 0 to +5 dBm |
| Receiver Sensitivity (Rx) | ≤ -24 dBm |
| Receiver Overload | -10 dBm |
| Receiver Wavelength Range | 1260 nm – 1620 nm |
| Extinction Ratio | ≥ 8.2 dB |
| Channel Spacing | 100 GHz |
| Power Supply Voltage | 3.15 – 3.45 V |
| Power Supply Current | 300 mA (typical) |
| Compliance Standards | INF-8074, SFF-8472, FCC Part 15, EN55022:2010, FDA 21CFR, IEC 60825-1/-2, RoHS 2.0 |
| Hot Swappable | Yes |
| Applications | Gigabit Ethernet over DWDM, Fibre Channel, Access, Metro, and Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
