Description

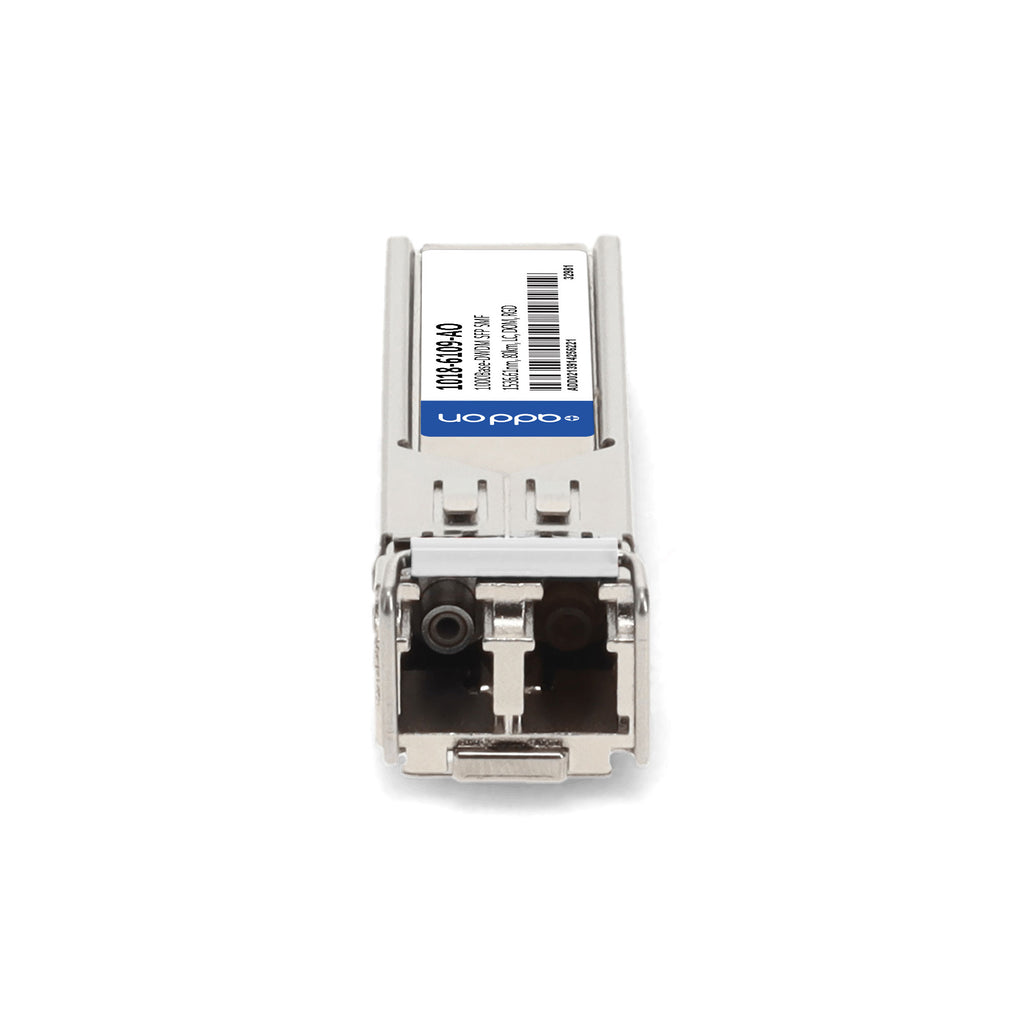

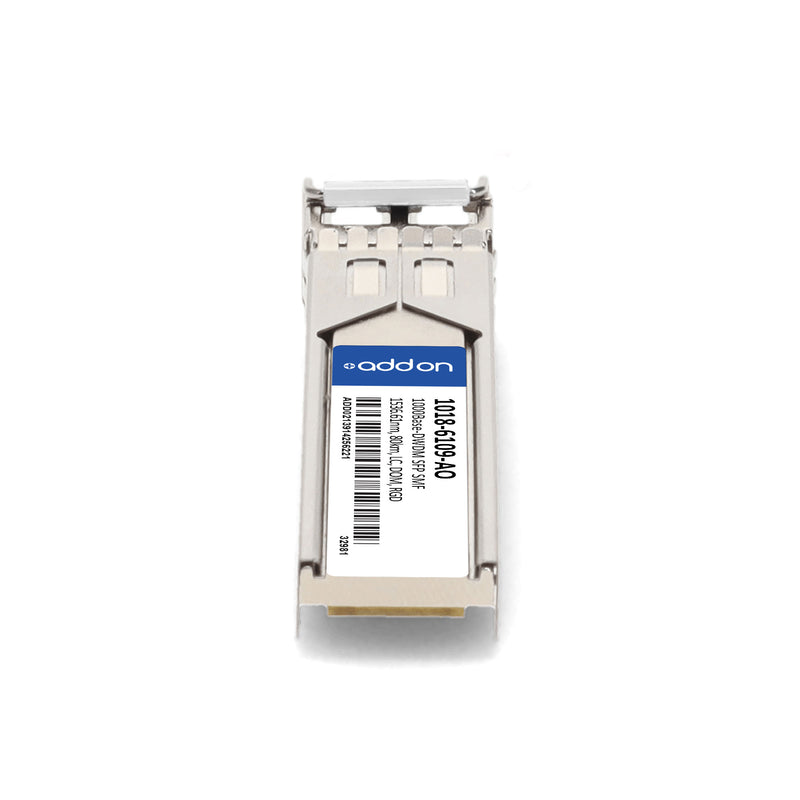

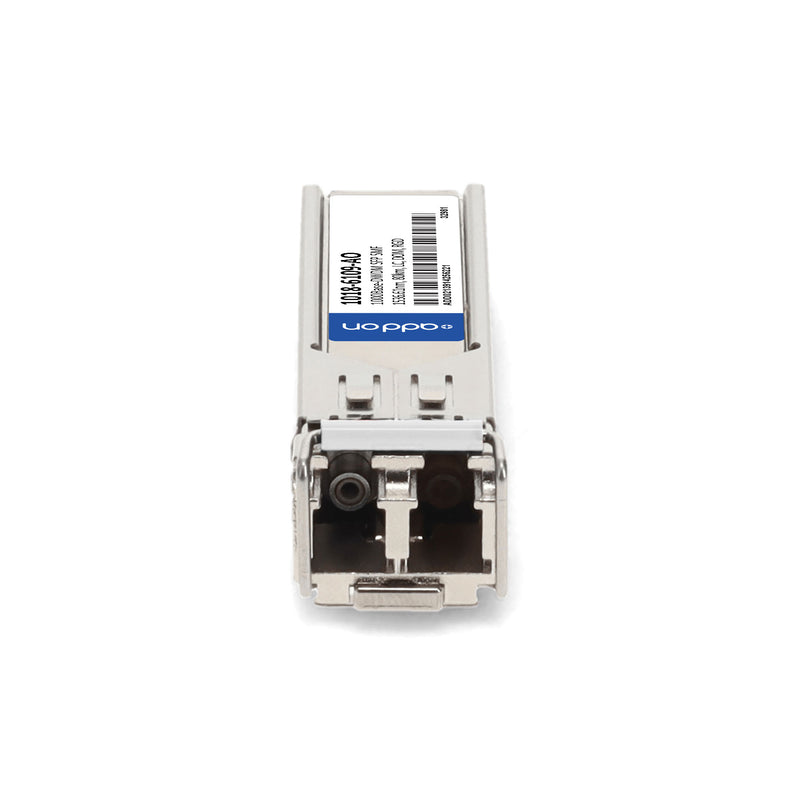

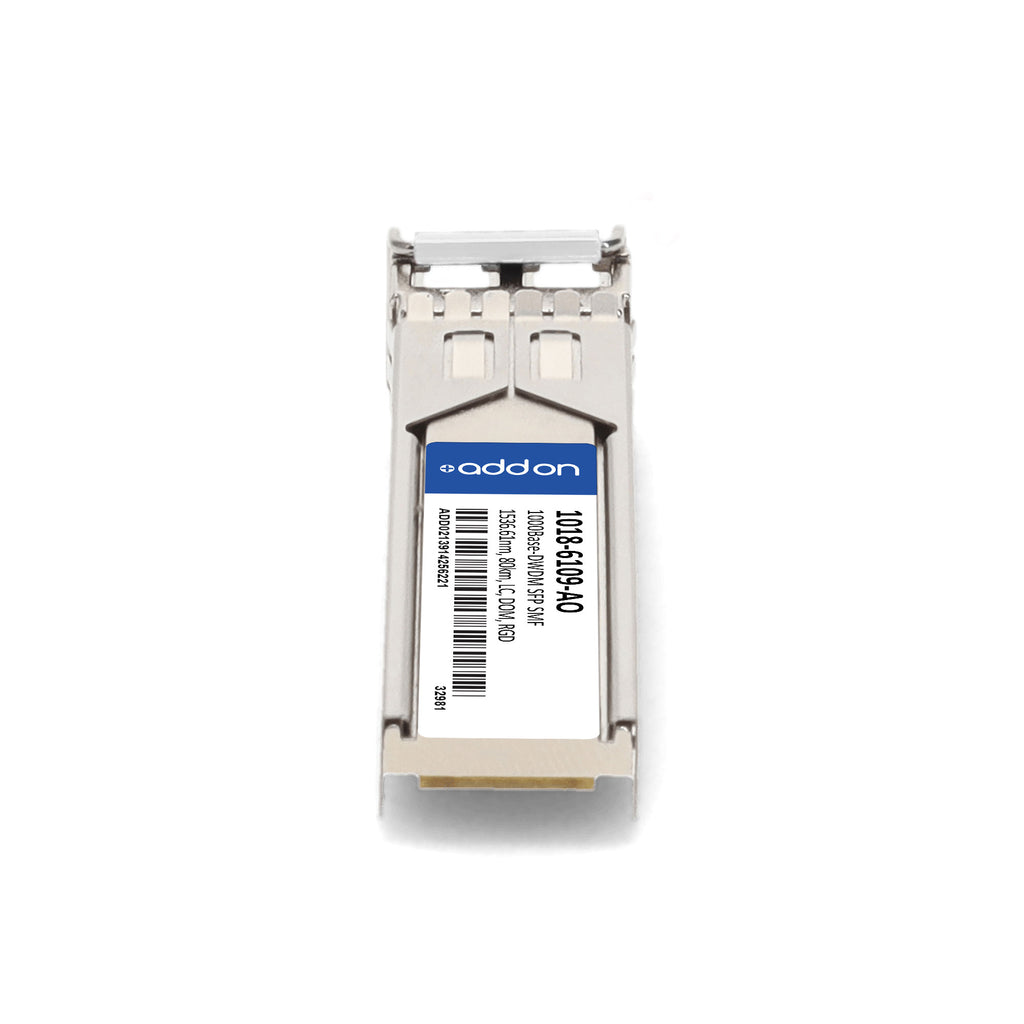

The AddOn Optelian® 1018-6109-AO is a 1000Base-DWDM SFP transceiver designed for high-performance Gigabit Ethernet and Fibre Channel applications over single-mode fiber (SMF) up to 80 km. Operating at a wavelength of 1536.61 nm with a 100 GHz channel spacing, this transceiver supports digital optical monitoring (DOM) for real-time parameter tracking. It is fully compliant with INF-8074 and SFF-8472 standards, hot-pluggable, and built with excellent ESD protection and low EMI. The module is TAA compliant, RoHS lead-free, and operates across an extended industrial temperature range (-40°C to 85°C), making it ideal for metro, access, and enterprise network deployments.
| Specification | Details |
|---|---|
| Brand | AddOn |
| Compatibility | Optelian® 1018-6109 |
| Form Factor | SFP |
| Data Rate | 1000 Mbps (1.25 Gbps) |
| Application | Gigabit Ethernet, Fibre Channel |
| Wavelength | 1536.61 nm (DWDM, 100 GHz ITU Channel 51) |
| Transmission Distance | Up to 80 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Digital Diagnostics | DOM (Digital Optical Monitoring) |
| Operating Temperature | -40°C to 85°C (Industrial) |
| Optical Power (Tx) | 0 to +5 dBm |
| Receiver Sensitivity | ≤ -24 dBm |
| Receiver Overload | -10 dBm |
| Receiver Wavelength Range | 1260 to 1620 nm |
| Power Supply Voltage | 3.15 – 3.45 V |
| Power Consumption | ≤ 300 mA |
| Compliance Standards | INF-8074, SFF-8472, FCC Part 15, EN55022, IEC 60825-1/2 |
| TAA Compliance | Yes |
| RoHS | Yes, RoHS 2.0 (2015/863/EU) |
| Hot-Pluggable | Yes |
| Connector Material | Metal (Low EMI) |
| ESD Protection | MIL-STD-883E / IEC 61000-4-3 |
| Warranty | Limited Lifetime Warranty |
