Description

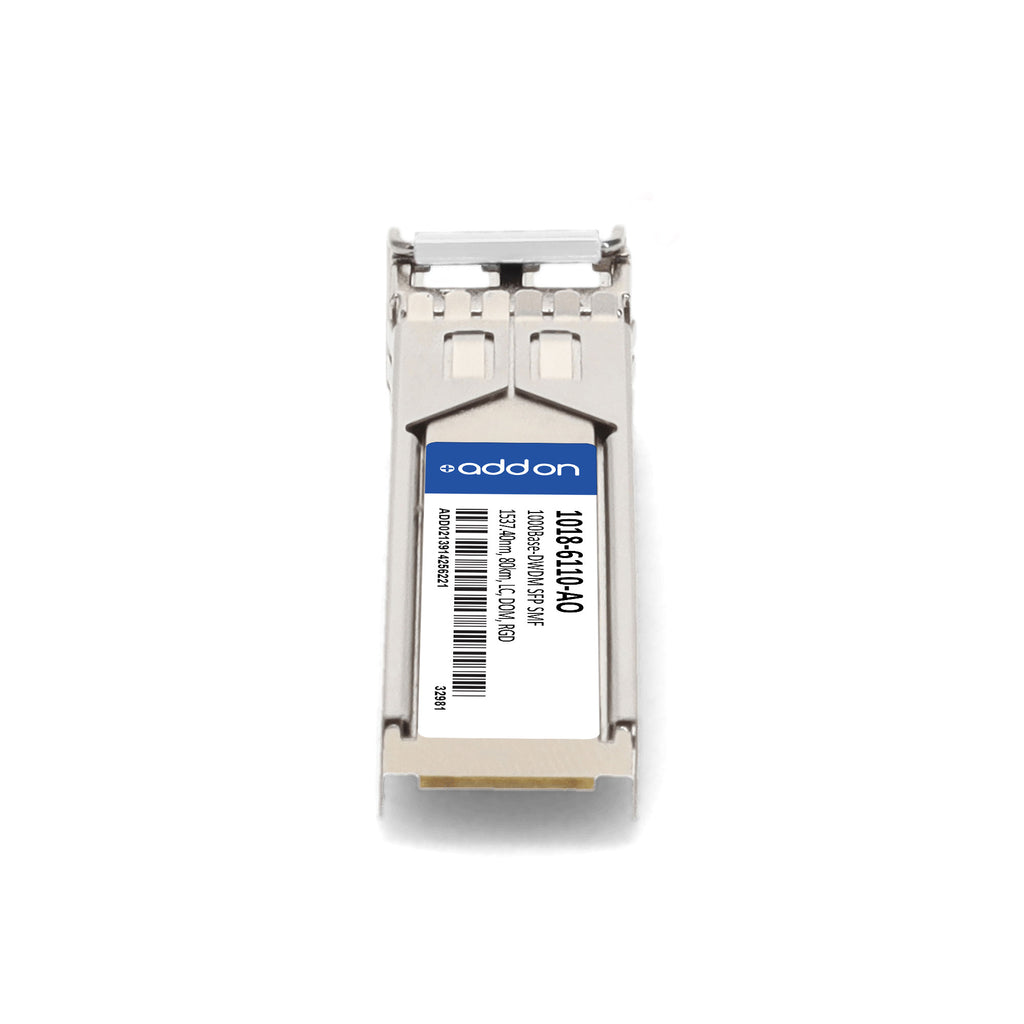

The AddOn Optelian® 1018-6110 compatible SFP transceiver delivers reliable 1000Base-DWDM performance over single-mode fiber (SMF) for distances up to 80km, using a 1537.40nm wavelength and duplex LC connector. Built to meet INF-8074 and SFF-8472 standards, it features Digital Optical Monitoring (DOM) for real-time diagnostics and operates across an industrial temperature range of -40°C to 85°C. This hot-swappable, TAA-compliant transceiver is programmed, serialized, and thoroughly tested to guarantee seamless interoperability with Optelian® equipment. With robust ESD protection, low EMI metal housing, and RoHS compliance, it ensures exceptional reliability in demanding applications such as Gigabit Ethernet over DWDM, access, metro, and enterprise networks.
| Specification | Details |
|---|---|
| SKU | 1018-6110-AO |
| Form Factor | SFP |
| Data Rate | 1000 Mbps (1.25 Gbps) |
| Wavelength | 1537.40 nm |
| Transmission Distance | Up to 80 km |
| Connector Type | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Optical Power (Tx) | 0 to +5 dBm |
| Receiver Sensitivity (Rx) | ≤ -24 dBm |
| Receiver Overload | -10 dBm |
| Channel Spacing | 100 GHz |
| Extinction Ratio | ≥ 8.2 dB |
| Receiver Wavelength Range | 1260 – 1620 nm |
| Digital Optical Monitoring (DOM) | Supported |
| Operating Temperature | -40°C to +85°C (Industrial) |
| Storage Temperature | -40°C to +85°C |
| Power Supply Voltage | 3.15 – 3.45 V |
| Power Consumption | 300 mA (typ.) |
| Hot Swappable | Yes |
| Compliance | INF-8074, SFF-8472, TAA, RoHS 2.0, FCC Part 15, EN55022, FDA 21CFR, EN60825-1/2 |
| Applications | Gigabit Ethernet over DWDM, Metro, Access, Enterprise |
| Warranty | Limited Lifetime Warranty |
