Description

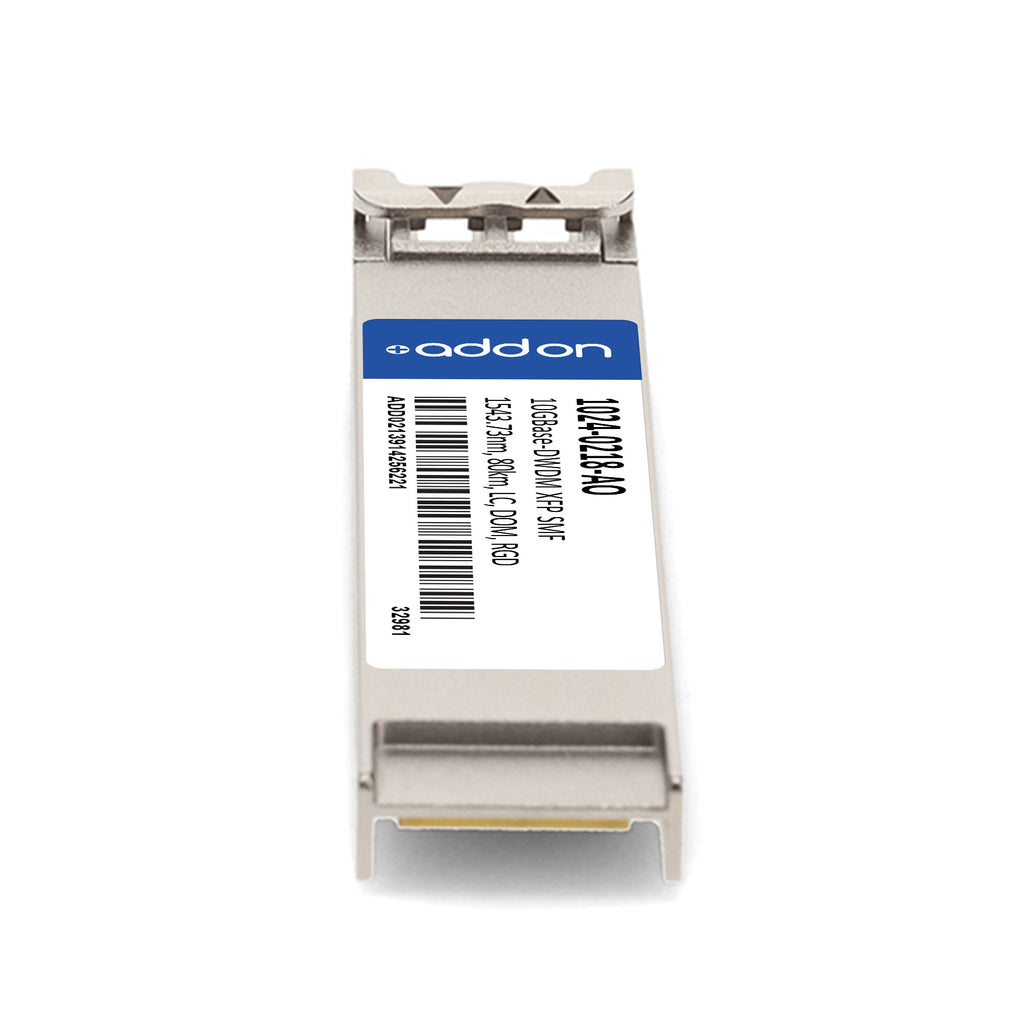

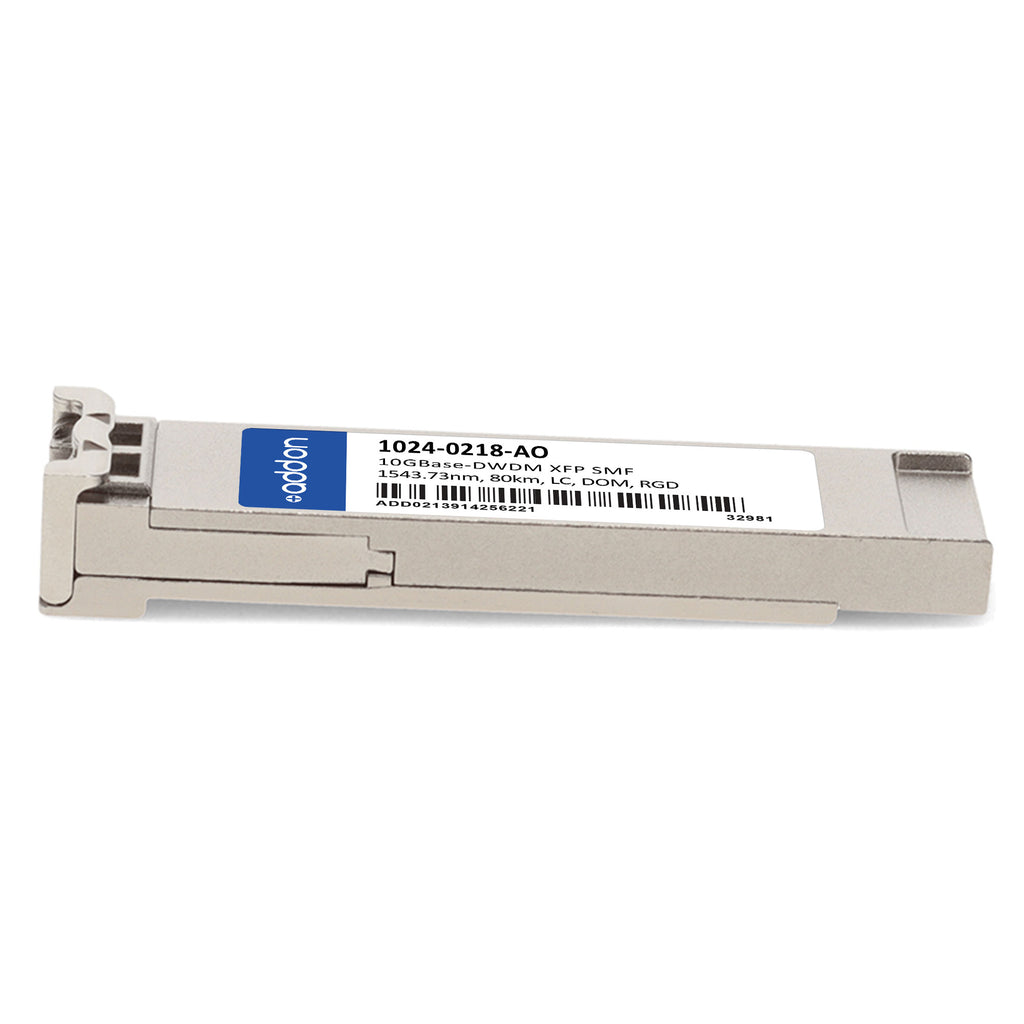

The AddOn Optelian® 1024-0218 Compatible 10GBase-DWDM XFP Transceiver delivers high-performance, long-distance optical connectivity over single-mode fiber (SMF) for demanding access, metro, and enterprise network environments. Operating at a wavelength of 1543.73nm, this TAA-compliant module supports data rates up to 10Gbps and provides reliable transmission up to 80km.
Equipped with a temperature-stabilized EML transmitter and APD receiver, the module ensures stable signal performance even in challenging conditions, with an industrial operating range of -40°C to 85°C. The transceiver is hot-pluggable, features a duplex LC connector, and includes Digital Optical Monitoring (DOM) for real-time diagnostics.
Fully compliant with INF-8077i and designed for seamless interoperability, this transceiver undergoes rigorous testing for compatibility, serialization, and data traffic performance — guaranteeing it functions identically to the original Optelian® part. Backed by AddOn’s limited lifetime warranty, it offers a dependable and cost-effective solution for high-capacity DWDM transport.
| Specification | Details |
|---|---|
| Brand | AddOn |
| SKU | 1024-0218-AO |
| Compatibility | Optelian® 1024-0218 |
| Form Factor | XFP |
| Data Rate | 10GBase-DWDM |
| Wavelength | 1543.73nm |
| Transmission Distance | Up to 80km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Digital Diagnostics (DOM) | Supported |
| Transmitter Type | Temperature-stabilized EML |
| Receiver Type | APD |
| Operating Temperature | -40°C to 85°C (Industrial) |
| Power Supply Voltage | 3.135V – 3.465V |
| Power Consumption | 3.5W |
| Receiver Sensitivity | -23 dBm |
| Receiver Overload | -8 dBm |
| Optical Power (Avg.) | 0 to 5 dBm |
| Extinction Ratio | ≥ 9 dB |
| Hot-Pluggable | Yes |
| Regulatory Compliance | INF-8077i, RoHS, FCC Part 15, EN55022, FDA 21CFR, IEC 60825-1/2 |
| Applications | 8x/10x Fibre Channel, 10x Gigabit Ethernet over DWDM, Access/Metro/Enterprise |
| Warranty | Limited Lifetime Warranty |
