Description
The Fluke Networks OFP2-CFP-QI OptiFiber Pro Quad OTDR V2 is the industry’s first OTDR purpose-built for enterprise and data center environments, delivering both Quad OTDR and Quad OLTS capabilities in one powerful platform. Designed with a simple Taptive touchscreen interface, it enables both novice and expert technicians to quickly certify, troubleshoot, and maintain high-performance fiber networks.
Equipped with Wi-Fi, a USB fiber inspection camera, and EventMap™ graphical analysis, it allows instant visualization of connectors, splices, and high-loss events. The CertiFiber Pro Quad OLTS modules provide fast, standards-compliant optical loss testing, while the inspection camera detects contamination, pits, chips, and scratches—ensuring optimal fiber reliability.
With comprehensive wavelength coverage (850, 1300, 1310, 1550 nm) and advanced features such as short event dead zones, high dynamic range, and rapid auto-testing, this all-in-one kit is engineered to meet the demands of 40G/100G data center infrastructures and enterprise fiber backbones.

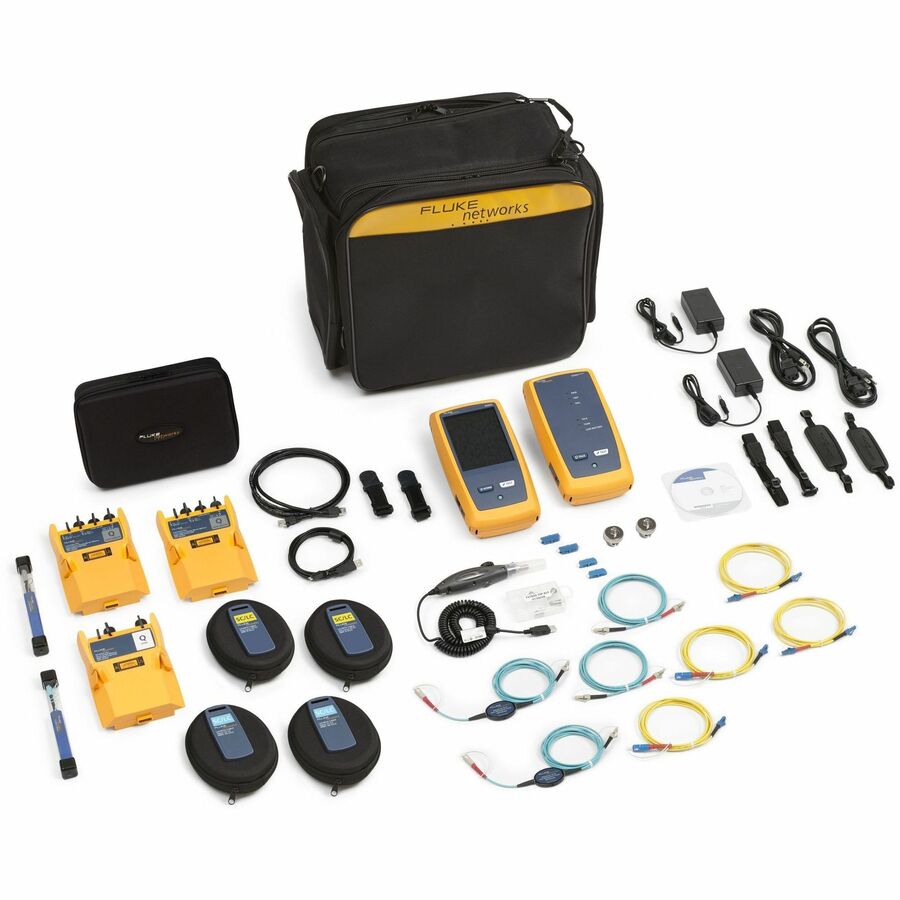

In the Box:
-
Versiv Mainframe & Remote
-
OptiFiber Pro Quad OTDR Module
-
(2) CertiFiber Pro Quad OLTS Modules
-
Fiber Inspection Video Probe (4 Tips)
-
Launch Cables & Adapters
-
Cleaning Tools & Accessories
-
Dual Carry Cases & Straps
-
AC Chargers, USB Cable, Documentation
| Feature | Specification |
|---|---|
| Fiber Types | Multimode (50/125 µm, 62.5/125 µm) & Singlemode |
| Wavelengths | 850 nm, 1300 nm, 1310 nm, 1550 nm |
| Dynamic Range (Typical) | MM: 28 dB @ 850 nm, 30 dB @ 1300 nm; SM: 32 dB @ 1310 nm, 30 dB @ 1550 nm |
| Event Dead Zone | MM: 0.5–0.7 m; SM: 0.6 m |
| Attenuation Dead Zone | MM: 2.5–4.5 m; SM: 3.6–3.7 m |
| Max Distance Range | MM: 40 km; SM: 130 km |
| Power Measurement Range | 0 dBm to -65 dBm (MM), 0 dBm to -70 dBm (SM) |
| Output Power (Nominal) | ≥ -24 dBm (MM) with EF-TRC, ≥ -4 dBm (SM) |
| Inspection Capability | Pass/Fail automated end-face analysis with contamination, pit, chip, and scratch detection |
| Connectivity | Wi-Fi, USB |
| Dimensions | 17" L × 16" W × 12" H |
| Weight | Kit dependent |
| Operating Temperature | -18°C to 45°C |
| Standards Compliance | TIA-526-14-B, ISO/IEC 14763-3, IEC 61280-4-1 |
