Description

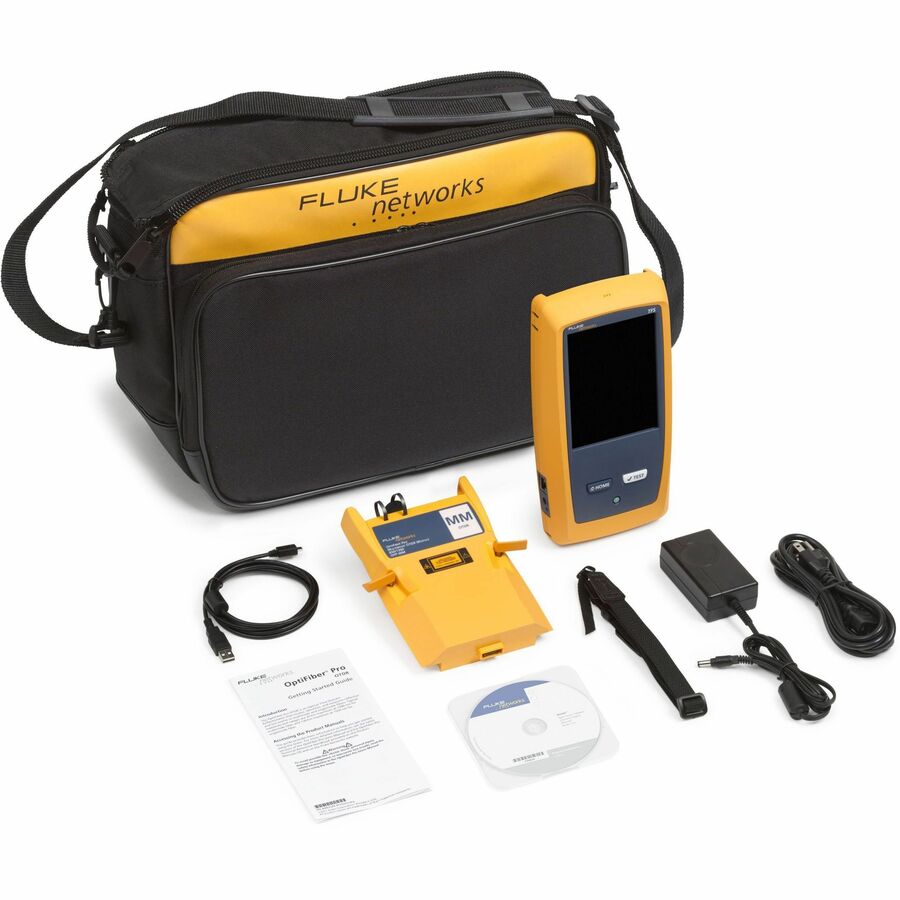

The Fluke Networks OFP2-100-M OptiFiber Pro Multimode OTDR V2 is a Tier 2 fiber certification solution engineered for the unique demands of enterprise networks and data centers. As part of the Versiv Cabling Certification product family, it combines advanced OTDR capabilities with the Taptive™ touchscreen interface and the ProjX™ management system, making fiber testing faster, more accurate, and easier for technicians of all skill levels.
Purpose-built for multimode fiber, the OFP2-100-M features SmartLoop™ OTDR for automated bidirectional testing without moving to the far end, and LinkWare Live compatibility for real-time job tracking and results management. With fast test times, event dead zones as low as 0.5 meters, and detailed graphical mapping of connectors and splices, it ensures precise troubleshooting and reliable certification for high-bandwidth architectures up to 100G.
| Specification | Details |
|---|---|
| Fiber Type | Multimode (50/125 µm, 62.5/125 µm) |
| Wavelengths | 850 nm ±10 nm, 1300 nm +35/-15 nm |
| Event Dead Zone | 850 nm: 0.5 m typical; 1300 nm: 0.7 m typical |
| Attenuation Dead Zone | 850 nm: 2.5 m typical; 1300 nm: 4.5 m typical |
| Dynamic Range | 850 nm: 28 dB typical; 1300 nm: 30 dB typical |
| Max Distance Range | 40 km |
| Distance Measurement Range | 850 nm: 9 km; 1300 nm: 35 km |
| Reflectance Range | 850 nm: -14 dB to -57 dB; 1300 nm: -14 dB to -62 dB |
| Sample Resolution | 3 cm to 400 cm |
| Pulse Widths (Nominal) | 850 nm: 3, 5, 20, 40, 200 ns; 1300 nm: 3, 5, 20, 40, 200, 1000 ns |
| Test Time (Auto Setting) | 5 sec typical per wavelength |
| Interface | Taptive™ touchscreen |
| Connectivity | Wi-Fi, USB |
| Software Compatibility | LinkWare Live, LinkWare PC |
| Product Dimensions (LxWxH) | 17 in x 11 in x 9 in |
| Country of Origin | United States |
