Description
The Fluke Networks OFP2-100-MI OptiFiber Pro Multimode OTDR V2 is a Tier 2 fiber certification and inspection solution purpose-built for enterprise networks and data centers. It combines multimode OTDR capabilities, a high-resolution inspection camera, and the Versiv™ platform to deliver fast, precise, and user-friendly fiber testing for technicians of all skill levels.
With its Taptive™ touchscreen interface and ProjX™ management system, the OFP2-100-MI streamlines setup, testing, and troubleshooting—reducing rework and ensuring jobs are done right the first time. The integrated FiberInspector™ camera offers 200X magnification for detailed end-face inspection, while SmartLoop™ OTDR allows bidirectional testing from a single location, saving time in the field.

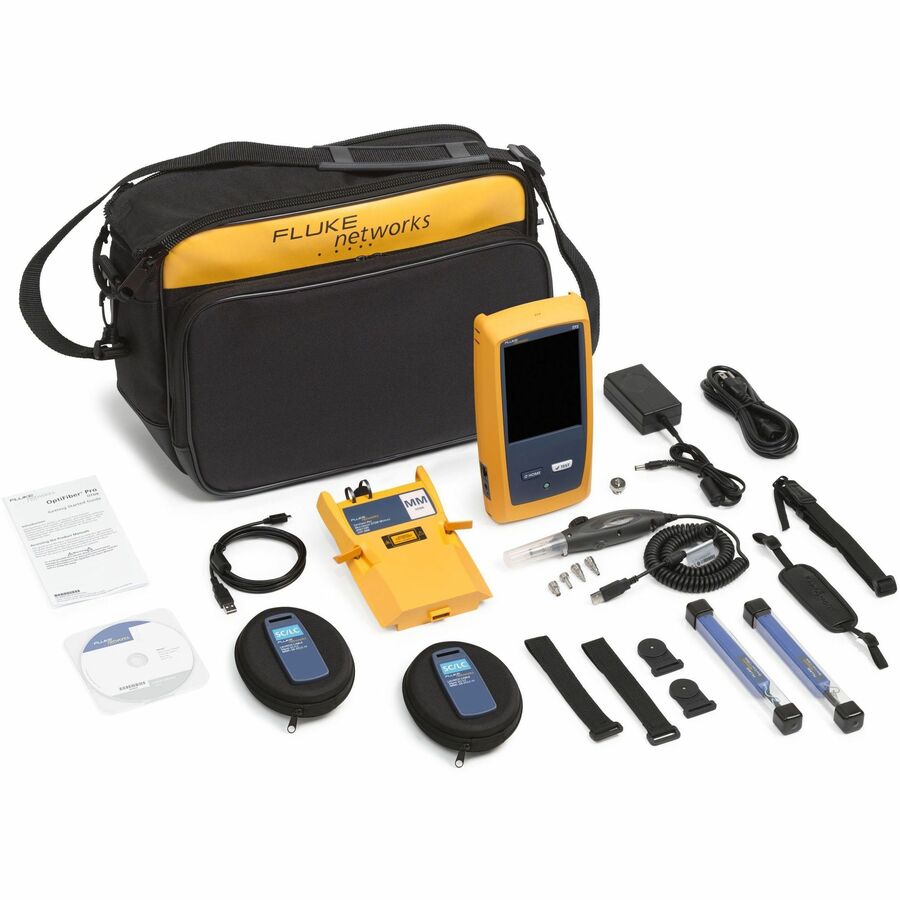

Designed for high-performance fiber infrastructure up to 40G and 100G, this OTDR offers industry-leading event dead zones, automated event mapping, LinkWare Live compatibility, and all essential accessories for both testing and inspection in a single kit.
| Specification | Details |
|---|---|
| Fiber Type | Multimode (50/125 µm, 62.5/125 µm) |
| Wavelengths | 850 nm ±10 nm, 1300 nm +35/-15 nm |
| Event Dead Zone | 850 nm: 0.5 m typical; 1300 nm: 0.7 m typical |
| Attenuation Dead Zone | 850 nm: 2.5 m typical; 1300 nm: 4.5 m typical |
| Dynamic Range | 850 nm: 28 dB typical; 1300 nm: 30 dB typical |
| Max Distance Range | 40 km |
| Distance Measurement Range | 850 nm: 9 km; 1300 nm: 35 km |
| Reflectance Range | 850 nm: -14 dB to -57 dB; 1300 nm: -14 dB to -62 dB |
| Sample Resolution | 3 cm to 400 cm |
| Pulse Widths (Nominal) | 850 nm: 3–200 ns; 1300 nm: 3–1000 ns |
| Test Time (Auto Setting) | 5 sec typical per wavelength |
| Inspection Camera Magnification | ~200X with OptiFiber Pro Display |
| Camera Light Source | Blue LED |
| Camera Field of View | 425 µm (H) x 320 µm (V) |
| Min. Detectable Particle Size | 0.5 µm |
| Interface | Taptive™ touchscreen |
| Connectivity | Wi-Fi, USB |
| Software Compatibility | LinkWare Live, LinkWare PC |
| Product Dimensions (LxWxH) | 17 in x 11 in x 9 in |
| Country of Origin | United States |
