Description

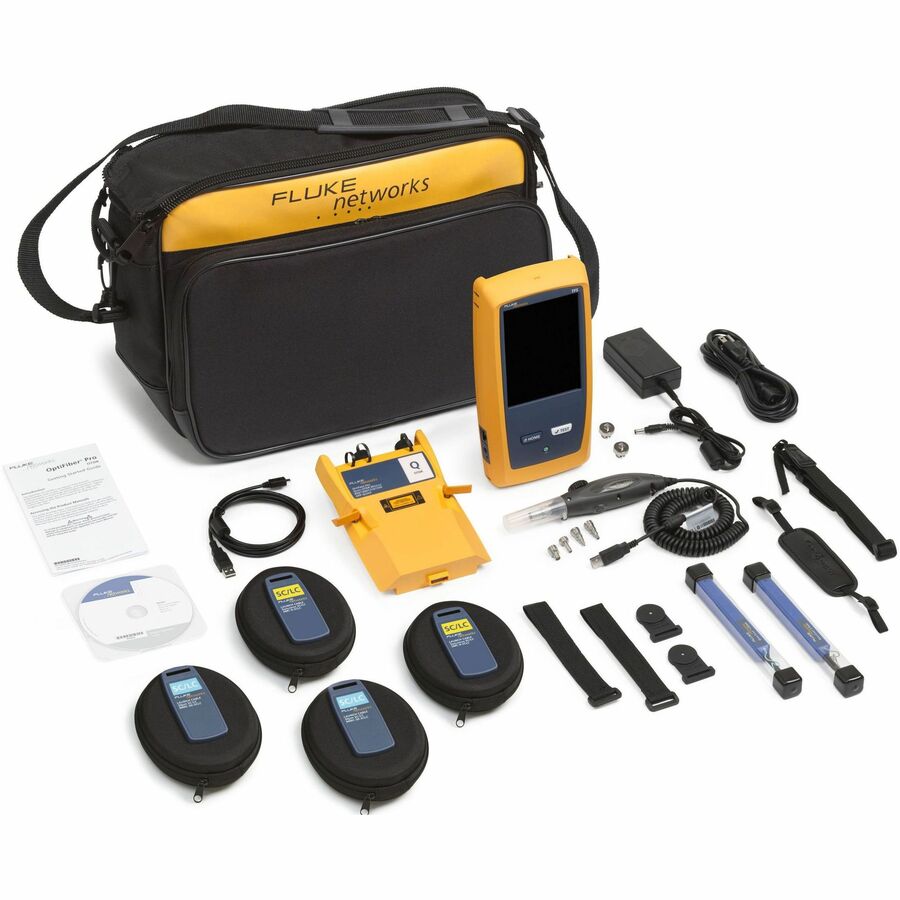

The Fluke Networks OFP2-100-QI/GLD OptiFiber Pro Quad OTDR V2 is the ultimate Tier 2 fiber certification solution, purpose-built for enterprise networks and data centers. Combining Quad OTDR functionality, an inspection camera, Wi-Fi connectivity, and 1 Year Gold Support, this tool ensures high-performance fiber network installation, certification, and troubleshooting.
Powered by Fluke’s Versiv platform and Taptive™ user interface, setup and operation are simple, even for less experienced technicians. The SmartLoop™ OTDR feature doubles testing efficiency by analyzing two fibers in one test, while automatic event mapping and advanced diagnostics quickly pinpoint issues.
Compatible with LinkWare™ Live, this OTDR allows real-time result sharing, job tracking, and seamless report generation, reducing rework and increasing productivity.
Key Benefits:
-
Purpose-built for enterprise fiber certification and troubleshooting
-
Automatic event mapping for connectors, splices, and faults
-
SmartLoop™ OTDR for faster testing with fewer trips to the far end
-
Integrated fiber inspection camera to eliminate contamination issues
-
LinkWare™ Live cloud integration for easy result management
-
Includes 1 Year Gold Support for updates, training, and priority service
Ideal for: Data center technicians, enterprise network engineers, SAN designers, and fiber installers seeking a fast, reliable, and user-friendly OTDR solution.
| Feature | Specification |
|---|---|
| Fiber Type | Multimode (50/125 µm, 62.5/125 µm) & Singlemode |
| Wavelengths | 850 nm ±10 nm, 1300 nm +35/-15 nm, 1310 nm ±25 nm, 1550 nm ±30 nm |
| Event Dead Zone | 0.5 m (MM), 0.6 m (SM) typical |
| Attenuation Dead Zone | 2.5 m (MM), 3.6–4.5 m (SM) typical |
| Dynamic Range | 28 dB (850 nm), 30 dB (1300 nm), 32 dB (1310 nm), 30 dB (1550 nm) |
| Max Distance Range | MM: 40 km, SM: 130 km |
| Distance Measurement Range | MM: up to 35 km, SM: up to 130 km |
| Reflectance Range | MM: -14 to -62 dB, SM: -14 to -65 dB |
| Sample Resolution | 3 cm to 400 cm |
| Pulse Widths | Multiple settings from 3 ns to 20,000 ns depending on wavelength |
| Test Time | Auto: 5–10 sec typical; Quick Test: 2–5 sec typical |
| Inspection Camera | ~200X magnification, 0.5 μm min. detectable particle size |
| Interface | Taptive™ touchscreen with Wi-Fi |
| Compatibility | LinkWare™ Live & LinkWare™ PC |
| Dimensions (Mainframe) | 17" L x 11" W x 9" H |
| Country of Origin | USA |
| Included Support | 1 Year Gold Support |
