Description
The Fluke Networks OFP2-100-Q/GLD OptiFiber Pro Quad OTDR V2 is the industryās first OTDR purpose-built for enterprise fiber networks, combining quad-wavelength testing capability with a simplified, touchscreen-driven interface. This model includes Wi-Fi connectivity and 1-Year Gold Support, ensuring extended service, priority repairs, and expert technical assistance.
Engineered for the evolving demands of high-bandwidth data centers and enterprise infrastructures, the OptiFiber Pro delivers automatic event mapping, SmartLoop OTDR dual-fiber testing, and compatibility with LinkWare Live for seamless job tracking and results management. Its powerful ProjX management system reduces setup errors and rework, while the Taptive user interface empowers technicians of any skill level to efficiently certify, troubleshoot, and maintain fiber links.
Key Benefits:
-
Quad-wavelength support for multimode and singlemode fiber
-
Real-time event detection for connectors, splices, and faults
-
Gold Support coverage for priority service and updates
-
Optimized for enterprise, SAN, and data center environments
-
Streamlined job management and test reporting with LinkWare Live
| Feature | Specification |
|---|---|
| Fiber Type | Multimode (50/125 Āµm, 62.5/125 Āµm), Singlemode |
| Wavelengths | 850 nm Ā±10 nm, 1300 nm +35/-15 nm, 1310 nm Ā±25 nm, 1550 nm Ā±30 nm |
| Dynamic Range (Typical) | MM: 28 dB (850 nm), 30 dB (1300 nm) / SM: 32 dB (1310 nm), 30 dB (1550 nm) |
| Event Dead Zone | 0.5ā0.7 m (MM), 0.6 m (SM) |
| Attenuation Dead Zone | 2.5ā4.5 m (MM), 3.6ā3.7 m (SM) |
| Max Distance Range Setting | MM: 40 km / SM: 130 km |
| Distance Measurement Range | MM: 9ā35 km / SM: 80ā130 km |
| Reflectance Range (Typical) | -14 dB to -57/-62 dB (MM), -14 dB to -65 dB (SM) |
| Sample Resolution | 3 cm to 400 cm |
| Pulse Widths (Nominal) | MM: 3ā1000 ns / SM: 3 nsā20 Ī¼s |
| Test Time (Typical) | MM: 2ā5 sec / SM: 5ā10 sec |
| Interface | Taptive touchscreen |
| Connectivity | Wi-Fi, USB |
| Software Compatibility | LinkWare Live, LinkWare PC |
| Dimensions (L x W x H) | 17.00 x 11.00 x 9.00 in |
| Country of Origin | United States |

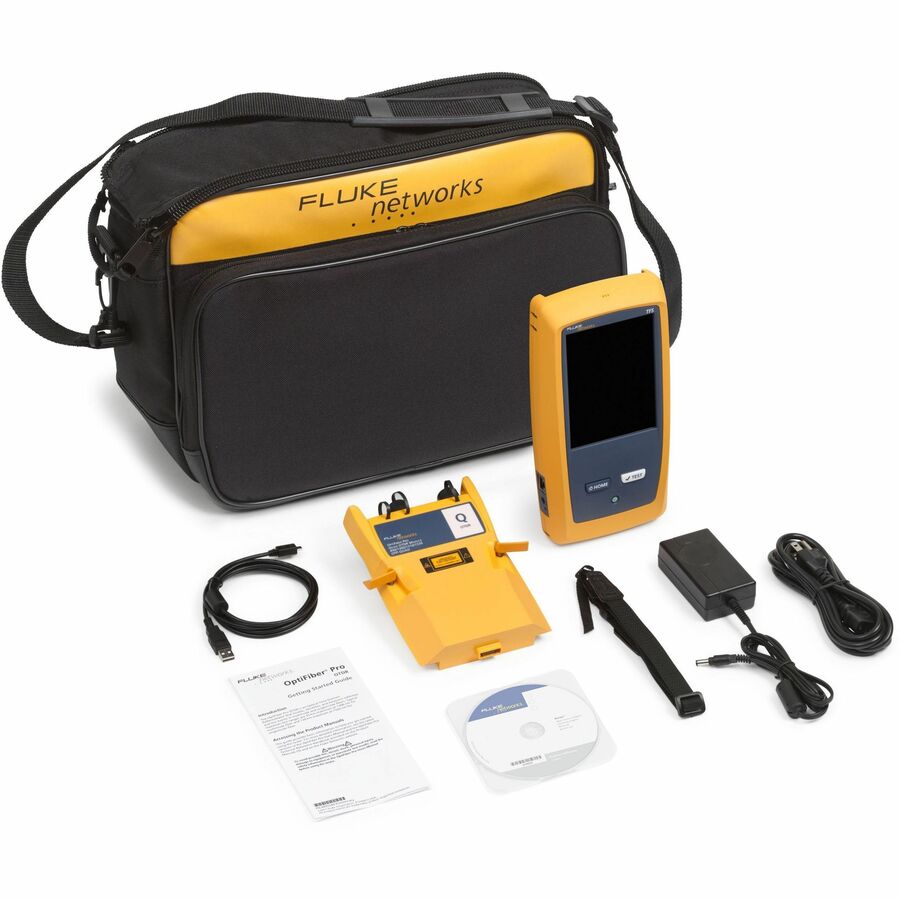

| Included Accessories | Versiv Mainframe, Quad OTDR Module, AC Charger, USB Cable, Carry Case, Strap, Calibration Certificate, Guides, 1-Year Gold Support |
