Description

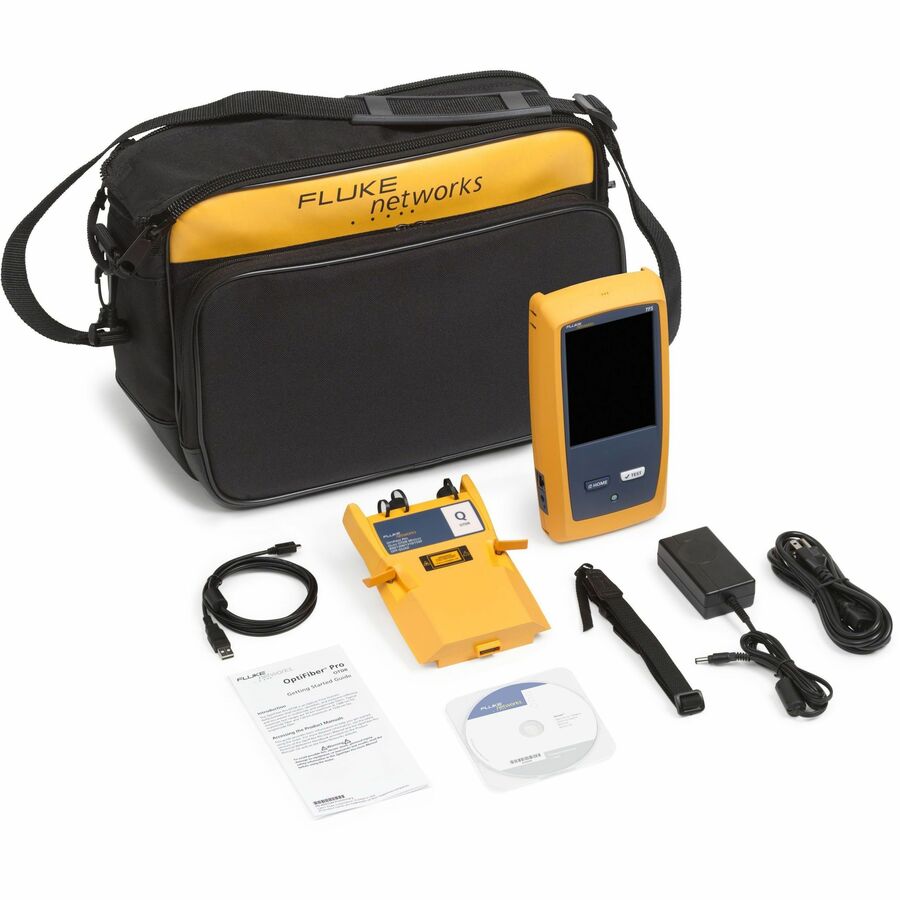

The Fluke Networks OFP2-100-Q OptiFiber Pro Quad OTDR V2 with Wi-Fi is the ultimate Tier 2 (extended) fiber certification solution, purpose-built for enterprise fiber infrastructures. Equipped with a Quad OTDR module, it supports both multimode and singlemode fiber testing, making it ideal for data centers, SANs, and high-bandwidth enterprise networks. Featuring the intuitive Taptive™ user interface and the ProjX™ management system, it streamlines test setup, ensures accurate results, and reduces rework.
With SmartLoop™ OTDR technology, it can test two fibers in a single pass without requiring a technician to access both ends of the link. Automatic event mapping, rapid test times, and compatibility with LinkWare™ Live make it easy to manage projects, share results, and troubleshoot efficiently in the field. Designed to deliver carrier-grade accuracy with simplified operation, the OFP2-100-Q empowers technicians of any skill level to ensure fiber reliability in evolving 40G/100G environments.
Key Features:
-
Quad OTDR module for multimode (850/1300 nm) and singlemode (1310/1550 nm) fibers
-
SmartLoop™ OTDR for two-fiber testing in one pass
-
Automatic graphic mapping of connectors, splices, and faults
-
Taptive™ touchscreen interface for simple, guided operation
-
LinkWare™ Live integration for remote test result access and job tracking
-
Optimized for enterprise and data center environments
| Specification | Details |
|---|---|
| Fiber Type | Multimode (50/125 µm, 62.5/125 µm), Singlemode |
| Wavelengths | MM: 850 ±10 nm, 1300 +35/-15 nmSM: 1310 ±25 nm, 1550 ±30 nm |
| Dynamic Range | MM: 28 dB (850 nm), 30 dB (1300 nm)SM: 32 dB (1310 nm), 30 dB (1550 nm) |
| Event Dead Zone | MM: 0.5 m (850 nm), 0.7 m (1300 nm)SM: 0.6 m (1310/1550 nm) |
| Attenuation Dead Zone | MM: 2.5 m (850 nm), 4.5 m (1300 nm)SM: 3.6 m (1310 nm), 3.7 m (1550 nm) |
| Max Distance Range Setting | MM: 40 kmSM: 130 km |
| Distance Measurement Range | MM: 9 km (850 nm), 35 km (1300 nm)SM: 80 km (1310 nm), 130 km (1550 nm) |
| Test Time (Auto) | MM: 5 sec typicalSM: 10 sec typical |
| Interface | 5.7” color touchscreen |
| Connectivity | Wi-Fi, USB |
| Software Compatibility | LinkWare™ PC, LinkWare™ Live |
| Dimensions (H × W × L) | 9 × 11 × 17 in |
| Country of Origin | United States |
