Description

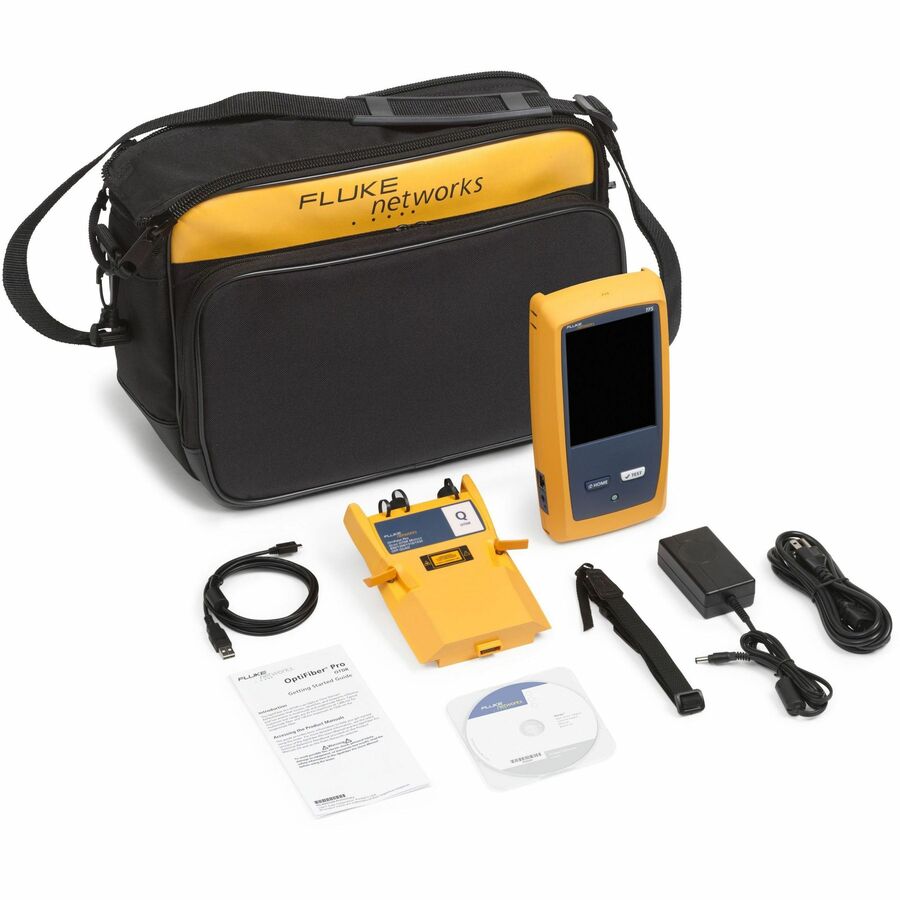

The Fluke Networks OFP2-100-S OptiFiber Pro Single Mode OTDR V2 is a purpose-built Tier 2 (extended) fiber certification tool designed for enterprise and data center environments. Equipped with a Versiv mainframe, single mode OTDR module, and integrated Wi-Fi, it delivers unmatched ease of use with the intuitive Taptive™ user interface and ProjX™ management system, ensuring projects are done right the first time.
Optimized for high-bandwidth enterprise networks (40G/100G) and evolving data center architectures, this OTDR offers SmartLoop™ technology for efficient bidirectional testing, automated event mapping for precise fault location, and LinkWare™ Live compatibility for real-time job progress tracking. The OFP2-100-S helps technicians of all skill levels certify, troubleshoot, and maintain fiber networks with speed and accuracy.
Key Features:
-
Single Mode OTDR with Wi-Fi for enterprise fiber certification and troubleshooting
-
SmartLoop OTDR for automated two-fiber testing without walking to the far end
-
Taptive user interface for simplified setup and advanced analysis
-
LinkWare Live integration for easy data management and collaboration
-
Designed to meet enterprise network demands without the complexity of carrier-class OTDRs
| Specification | Details |
|---|---|
| Fiber Type | Single Mode |
| Wavelengths | 1310 nm ± 25 nm, 1550 nm ± 30 nm |
| Event Dead Zone | 0.6 m typical |
| Attenuation Dead Zone | 3.6 m (1310 nm), 3.7 m (1550 nm) typical |
| Dynamic Range | 32 dB (1310 nm), 30 dB (1550 nm) typical |
| Max Distance Range Setting | 130 km |
| Distance Measurement Range | 80 km (1310 nm), 130 km (1550 nm) typical |
| Reflectance Range | -14 dB to -65 dB typical |
| Sample Resolution | 3 cm to 400 cm |
| Pulse Widths | 3 ns to 20,000 ns (varies per wavelength) |
| Test Time (Auto) | 10 sec typical |
| Interface | Touchscreen with Taptive UI |
| Connectivity | Integrated Wi-Fi |
| Dimensions (H x W x L) | 9" x 11" x 17" |
| Country of Origin | USA |
