Description

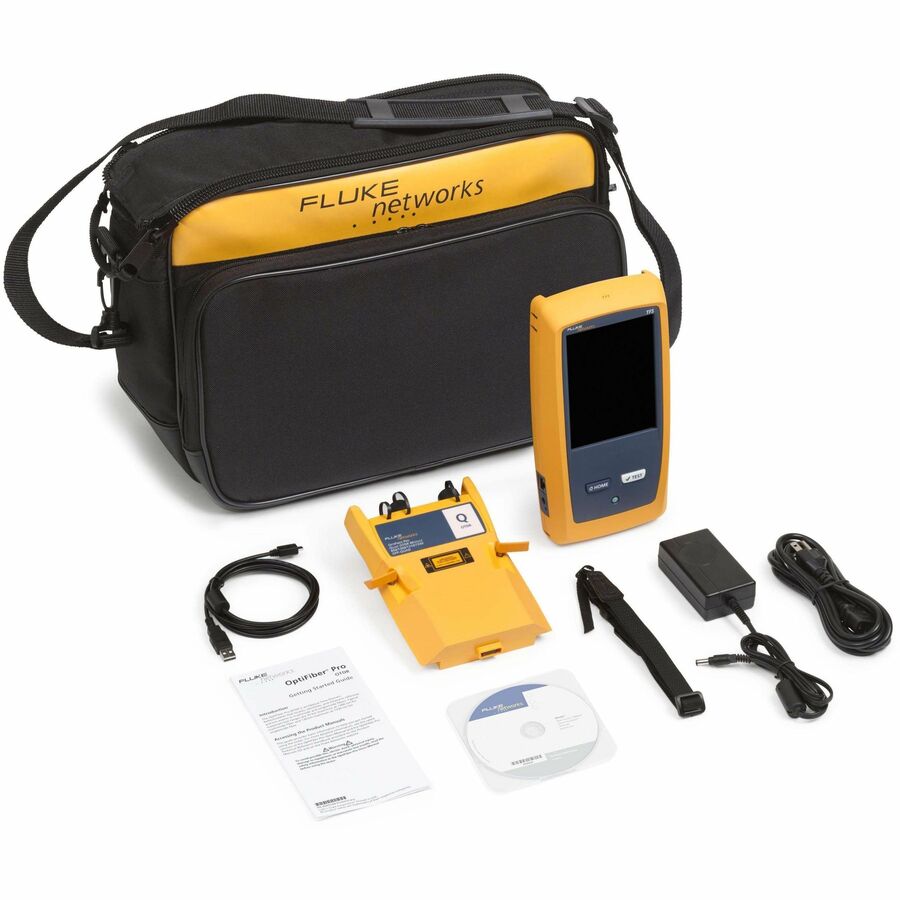

The Fluke Networks OFP2-100-S-NW OptiFiber Pro Single Mode OTDR V2 is a purpose-built Tier 2 (extended) fiber certification and troubleshooting solution designed for enterprise networks and data centers. Optimized for single mode fiber applications, it delivers accurate, fast, and easy-to-interpret results through its intuitive Taptive™ touchscreen interface.
Equipped with automatic event mapping, SmartLoop™ OTDR testing, and LinkWare™ compatibility, it streamlines fiber certification, documentation, and troubleshooting — even for technicians with limited cabling experience. The rugged Versiv™ mainframe and advanced OTDR module make it ideal for maintaining high-performance fiber infrastructures, including 40G and 100G networks.
This model includes the Versiv mainframe and single mode OTDR module but does not include Wi-Fi, making it ideal for environments where wireless connectivity is restricted.
Key Features:
-
Single mode OTDR for enterprise fiber troubleshooting and certification
-
SmartLoop™ OTDR for two-fiber testing in one operation
-
Automatic graphic event mapping for fast fault location
-
Compatible with LinkWare Live for remote results management
-
Rugged design with easy-to-use Taptive™ interface
| Specification | Details |
|---|---|
| Fiber Type | Single mode |
| Wavelengths | 1310 ± 25 nm, 1550 ± 30 nm |
| Event Dead Zone | 0.6 m typical |
| Attenuation Dead Zone | 3.6 m (1310 nm), 3.7 m (1550 nm) typical |
| Dynamic Range | 32 dB (1310 nm), 30 dB (1550 nm) typical |
| Max Distance Range | 130 km |
| Distance Measurement Range | 80 km (1310 nm), 130 km (1550 nm) typical |
| Reflectance Range | -14 dB to -65 dB typical |
| Sample Resolution | 3 cm to 400 cm |
| Pulse Widths | 3 ns to 20,000 ns |
| Test Time (Auto) | 10 sec typical |
| Dimensions (L x W x H) | 17.00 in x 11.00 in x 9.00 in |
| Weight | Approx. 2.9 kg (varies with configuration) |
| Country of Origin | United States |
| Wi-Fi | Not included |
