Description
The NETGEAR Orbi 860 Series AX6000 Mesh WiFi 6 System delivers high-performance, whole-home connectivity designed for modern, bandwidth-intensive environments. Engineered to support ultra-fast speeds up to 6Gbps, this tri-band mesh system ensures seamless coverage across large homes, providing reliable connectivity for streaming, gaming, video conferencing, and smart home devices.

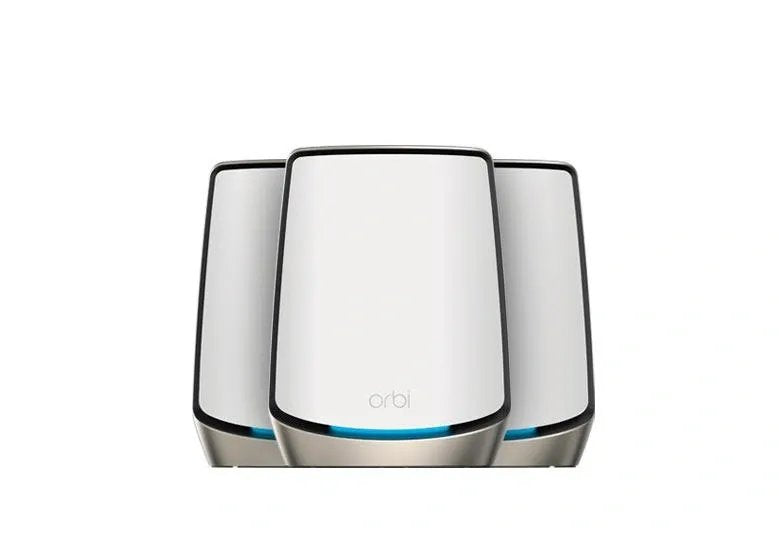

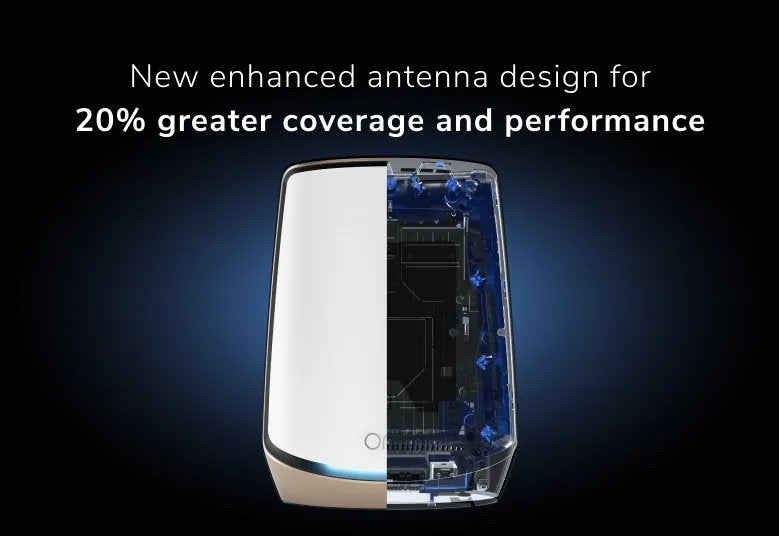

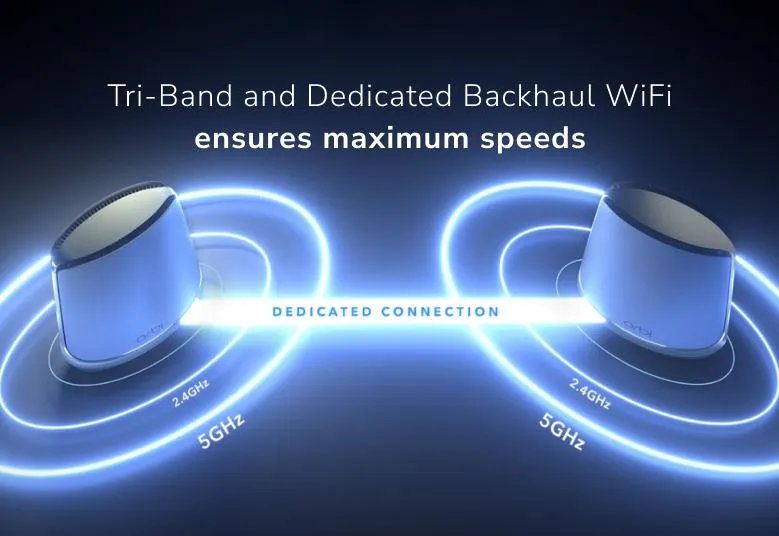

With a dedicated backhaul channel, the system maintains consistent high speeds across all connected devices, even in dense network environments. The included router and two satellites extend coverage up to 8,000 square feet, eliminating dead zones while supporting up to 100 simultaneous devices. A powerful quad-core processor, advanced antenna design, and intelligent signal optimization work together to maximize performance and stability.

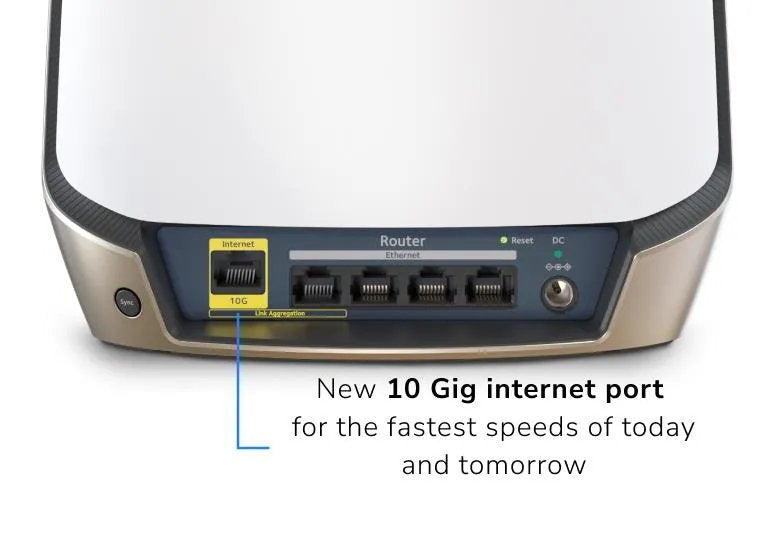

The system also features a 10 Gigabit WAN port for multi-gig internet connections, enabling future-ready networking. Built-in security with NETGEAR Armor provides comprehensive protection across connected devices, while smart parental controls help manage online activity. Designed for ease of use, the Orbi mobile app allows quick setup and full network management from anywhere.
| Specification | Details |
|---|---|
| WiFi Technology | WiFi 6 (802.11ax) |
| WiFi Performance | AX6000 (up to 6Gbps combined speed) |
| Coverage Area | Up to 8,000 sq. ft. |
| Device Capacity | Supports up to 100 connected devices |
| System Configuration | 1 Router + 2 Satellites |
| Band Configuration | Tri-band (2.4GHz + 5GHz + dedicated 5GHz backhaul) |
| Backhaul | Dedicated wireless backhaul for optimized performance |
| Processor | Quad-core 2.2GHz |
| Memory (Router) | 1GB RAM, 512MB NAND Flash |
| Antennas | 8 high-performance internal antennas per unit |
| Ethernet Ports (Router) | 1 x 10Gbps WAN, 4 x Gigabit LAN |
| Ethernet Ports (Each Satellite) | 4 x Gigabit LAN |
| Multi-Gig Support | Yes, up to 10Gbps WAN |
| MU-MIMO | Supported for simultaneous streaming |
| Beamforming | Implicit and explicit beamforming supported |
| Security | WPA2/WPA3, NETGEAR Armor security included (1-year) |
| Parental Controls | Smart Parental Controls supported |
| Voice Control | Compatible with Alexa and Google Assistant |
| Mobile App | Orbi App for setup and management |
| Dimensions (Each Unit) | 10 x 7.5 x 2.8 inches |
| Weight (Each Unit) | 2.86 lb |
| Included Accessories | Ethernet cable, power adapters, quick start guide |
| Installation Requirement | High-speed internet connection to modem or gateway |
