Description

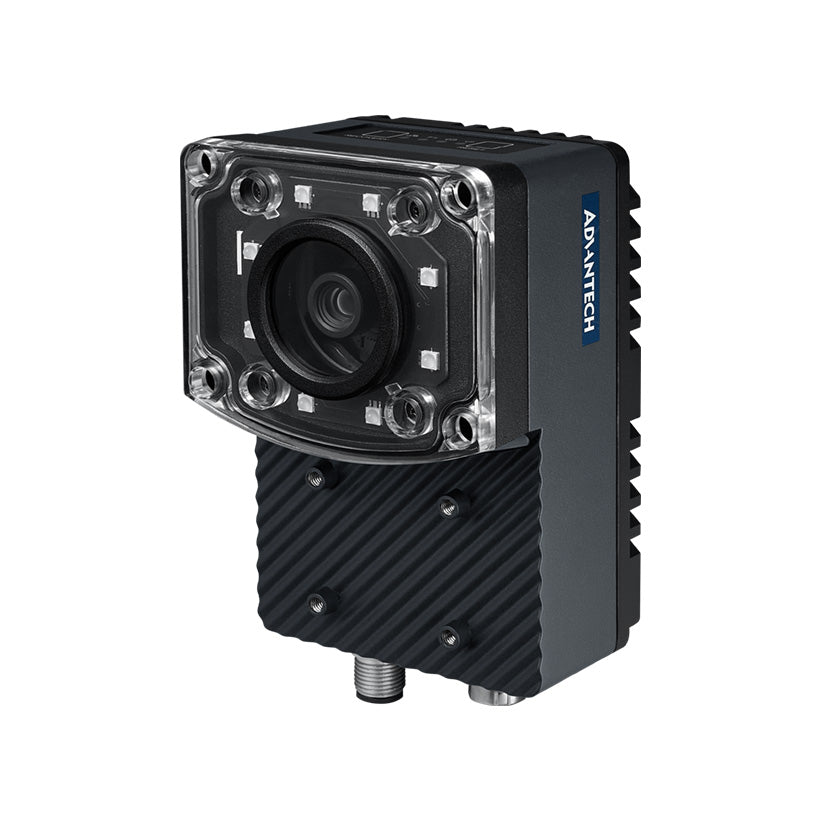

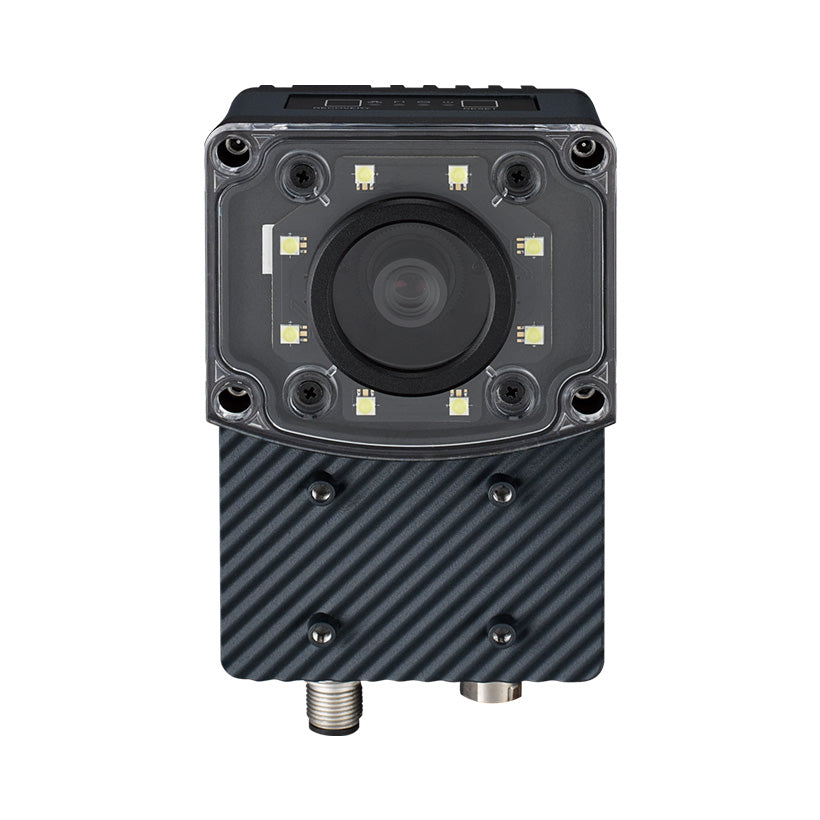

The Advantech ICAM-540-3CN is a compact and rugged industrial AI camera designed to accelerate edge-based computer vision and AI inference deployments. Built with an 8MP SONY IMX334 industrial-grade sensor and powered by the NVIDIA Jetson Orin NX platform, it delivers high-resolution imaging at 30 fps alongside advanced GPU-accelerated AI processing.
Designed for cloud-to-edge vision AI applications, the ICAM-540-3CN supports C-mount lenses, RTSP/V4L2 streaming, and software ecosystems including NVIDIA DeepStream. With flexible triggering, industrial I/O, and reliable performance in harsh environments, it is ideal for smart manufacturing, inspection, robotics, and automated vision systems.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Model | ICAM-540 Industrial AI Camera |
| SKU | ICAM-540-3CN |
| Camera Sensor | SONY IMX334 Industrial Sensor |
| Resolution | 8MP |
| Frame Rate | Up to 30 fps |
| Sensor Size / Shutter | 1/1.8” Rolling Shutter, Color |
| Processor Platform | NVIDIA Jetson Orin NX |
| CPU | 6-core Cortex-A78AE ARM v8.2 (64-bit), up to 2.0 GHz |
| GPU | 1024 CUDA Cores, 32 Tensor Cores |
| Memory | 8GB LPDDR5 |
| Storage | 256GB NVMe |
| Lens Support | Compatible with C-mount lenses |
| Synchronization Modes | Hardware Trigger / Software Trigger / Free-run |
| Image Processing (ISP) | Debayering, White Balance, Sharpness, Noise Correction |
| USB Ports | 1× USB 3.0 Type-C, 1× USB 3.0 Type-A |
| Digital I/O | 1× Trigger In, 2× Inputs, 1× Output |
| Video Output | 1× HDMI 2.0 |
| Ethernet | 1× Gigabit LAN (10/100/1000 Base-T) |
| Power Input | 19–24VDC |
| Power Consumption | Typical 15W, Max 18W |
| Dimensions | 78 × 121 × 49.31 mm |
| Operating Temperature | 0–45°C |
| Certification | CE / FCC, IP40 Rating |
| Operating System Support | Ubuntu 20.04, JetPack 5.1.1+ |
| AI Software Support | NVIDIA DeepStream SDK |
| Utilities Included | CAMNavi SDK, Web Camera Utility, IP Config Tool |
