Description

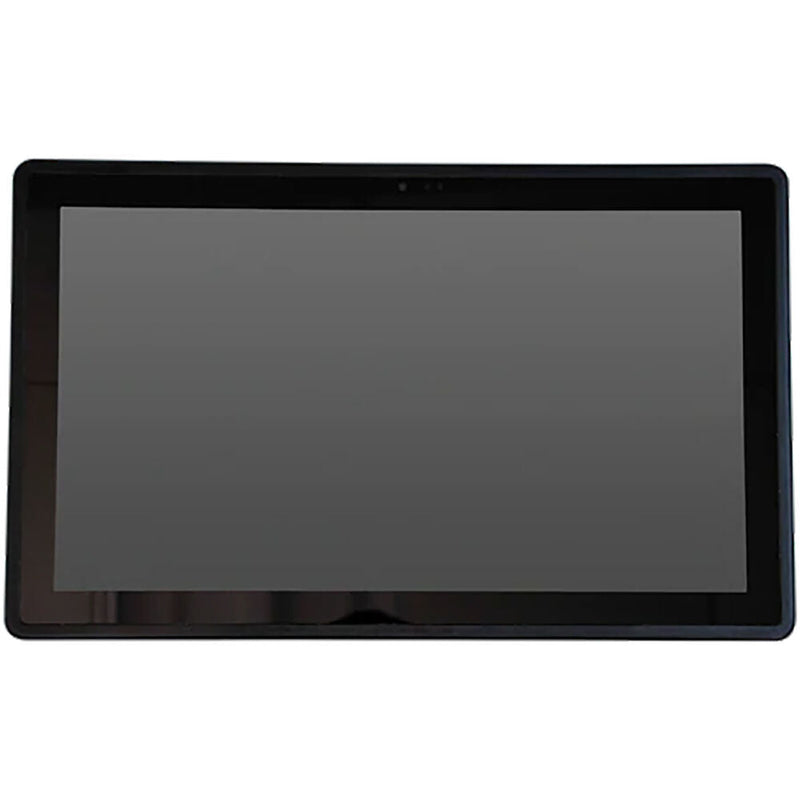

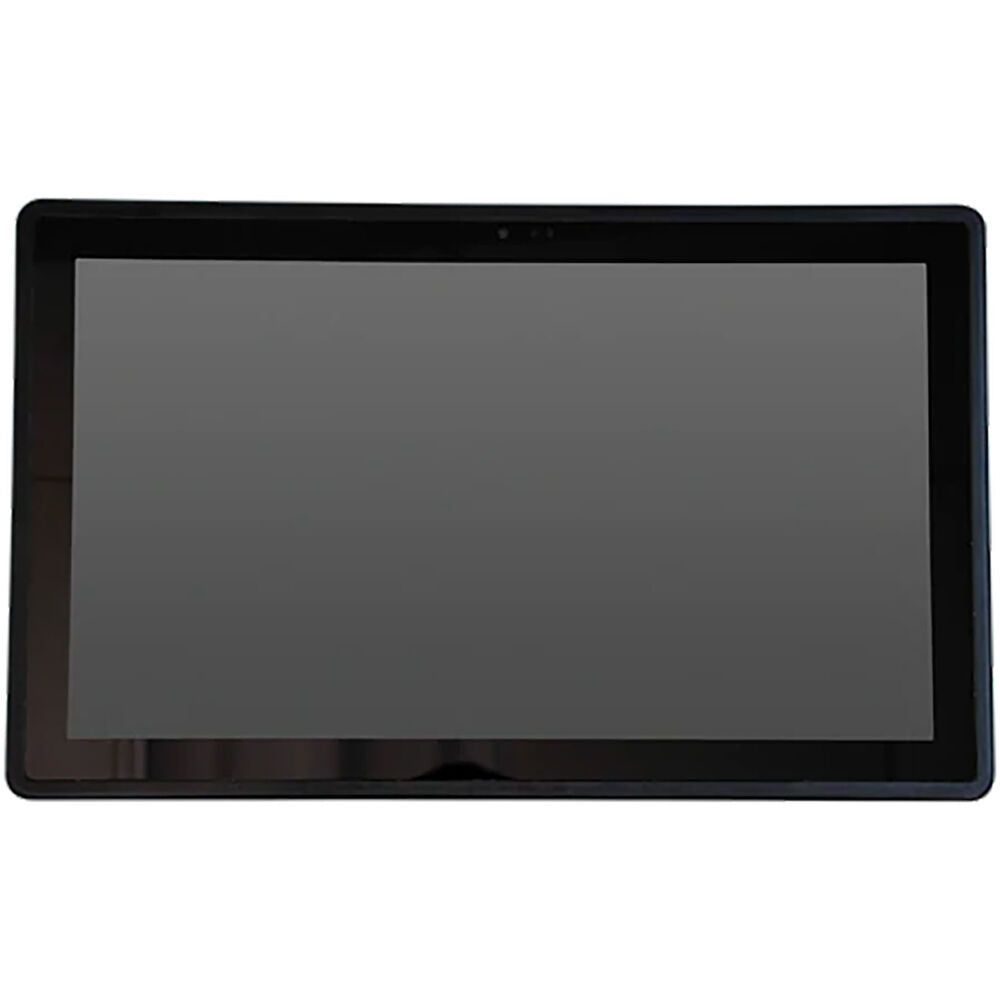

The Mimo Monitors MOT-10180CH is a rugged 10.1-inch WXGA outdoor touchscreen display engineered for high-performance digital signage in demanding environments. Designed with a bright 1000-nit LCD panel and anti-glare optical bonding, this display ensures clear visibility in various lighting conditions, making it ideal for outdoor deployments such as quick-service restaurants, gas stations, stadiums, and amusement parks.
Built for durability, the all-aluminum enclosure is IP65-rated for protection against dust, water, and environmental exposure, while the IK10 impact rating safeguards against vandalism and physical damage. The integrated Android operating system, powered by an RK3288 processor, enables seamless content deployment and interactive applications without the need for external media players.
With 10-point capacitive touch, wide operating temperature support from -20 to 140°F, and 24/7 continuous operation capability, the MOT-10180CH delivers reliable, always-on performance for commercial and industrial use cases.
| Specification | Details |
|---|---|
| Display Size | 10.1 inches |
| Panel Type | LCD |
| Native Resolution | 1280 x 800 (WXGA) |
| Aspect Ratio | 16:10 |
| Brightness | 1000 nits |
| Contrast Ratio | 800:1 |
| Refresh Rate | 60 Hz |
| Viewing Angle | 176° horizontal / 176° vertical |
| Touchscreen | 10-point capacitive multi-touch |
| Surface Treatment | Anti-glare, 3H hardness |

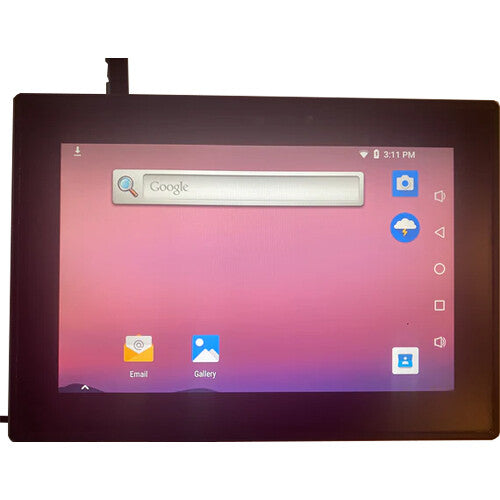

| Operating System | Android (RK3288 processor) |

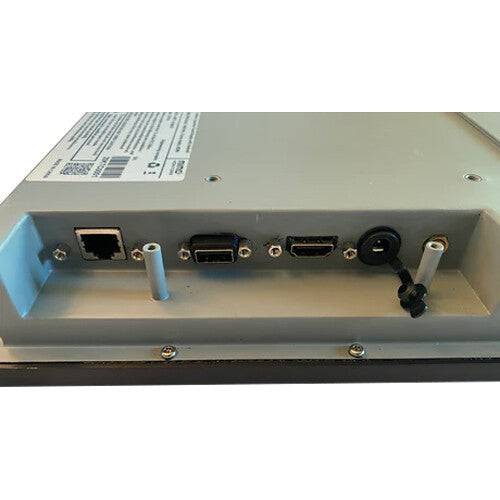

| A/V Inputs | 1x HDMI |
| A/V Outputs | 1x 3.5 mm audio |
| USB Ports | 1x USB-A (touch control) |
| Ethernet | 1x RJ45 |
| Wireless Connectivity | Not specified |
| Built-In Speakers | Not included |
| Ambient Light Sensor | Yes |
| Power Consumption | 40W (typical) |
| Input Power | 100 to 240 VAC, 50/60 Hz |
| Operating Temperature | -20 to 140°F (-28 to 60°C) |
| Mounting | VESA 100 x 100 mm |
| Environmental Rating | IP65 (dust and water resistant) |
| Impact Rating | IK10 (vandal-resistant) |
| Enclosure Material | All-aluminum housing |
| Duty Cycle | 24/7 continuous operation |
| Certifications | CE, FCC, RoHS |
| Included Accessories | Power supply, remote control |
