Description

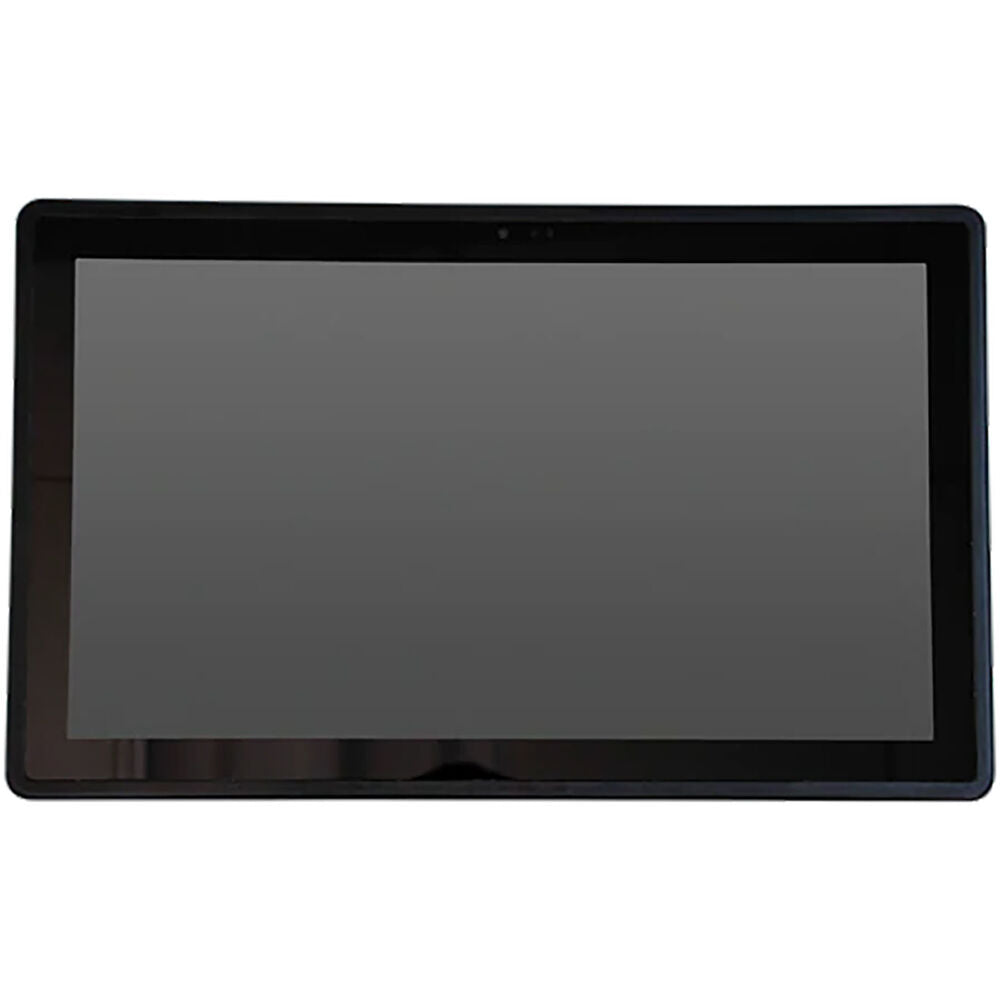

The Mimo Monitors MOT-10180H is a rugged 10.1-inch WXGA outdoor commercial display engineered for reliable digital signage in demanding environments. With 1000 nits of brightness and an anti-glare surface, it delivers clear, high-visibility content even in bright outdoor conditions. The integrated Android operating system, powered by an RK3288 processor, enables seamless content deployment without the need for external media players.
Built for durability, the MOT-10180H features an all-aluminum enclosure with IP65 protection against water, dust, and environmental elements, along with IK10-rated impact resistance for vandal-prone areas. Its wide operating temperature range ensures consistent performance in extreme climates, making it ideal for transportation hubs, QSRs, gas stations, amusement parks, and outdoor kiosks.
Designed for continuous operation, this display supports 24/7 duty cycles and includes essential connectivity such as HDMI input, USB, and Ethernet. With flexible mounting options and commercial-grade reliability, the MOT-10180H is a dependable solution for outdoor digital signage deployments.
| Specification | Details |
|---|---|
| Display Size | 10.1 inches |
| Resolution | 1280 x 800 (WXGA) |
| Aspect Ratio | 16:10 |
| Panel Type | LCD |
| Brightness | 1000 nits |
| Contrast Ratio | 800:1 |
| Viewing Angles | 176° horizontal / 176° vertical |
| Refresh Rate | 60 Hz |
| Surface Treatment | Anti-glare 3H cover glass |
| Touch Capability | Non-touch display |
| Operating System | Embedded Android OS |
| Processor | RK3288 |
| A/V Input | 1 x HDMI |
| Audio Output | 1 x 3.5 mm jack |
| USB Ports | 1 x USB-A |
| Ethernet | 1 x RJ45 |
| Ambient Light Sensor | Yes |
| Built-In Speakers | Not included |
| Power Consumption | 40W (typical operation) |
| Input Power | 100–240V AC, 50/60 Hz |
| Mounting | VESA 100 x 100 mm |
| Enclosure | All-aluminum housing |
| Environmental Protection | IP65 rated for water, dust, and outdoor exposure |
| Impact Resistance | IK10 rated |
| Operating Temperature | -20°F to 140°F (-28°C to 60°C) |
| Duty Cycle | Designed for continuous 24/7 operation |
| Certifications | CE, FCC, RoHS |
| Included Accessories | Power supply, remote control |
