Description

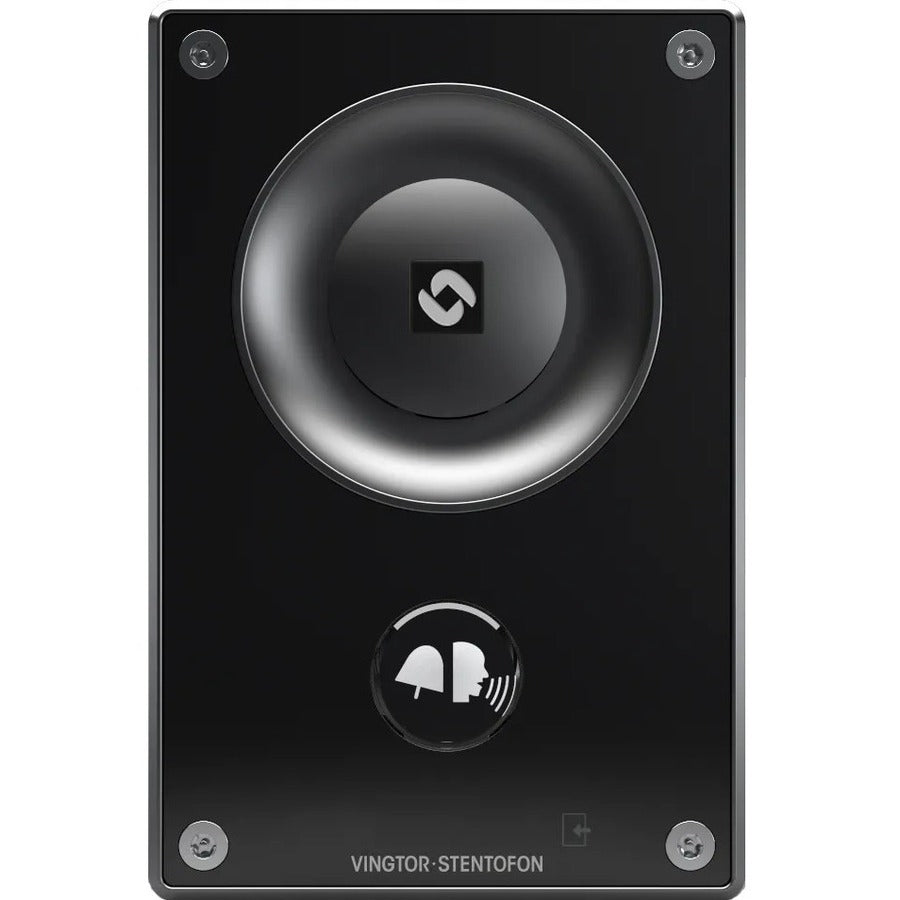

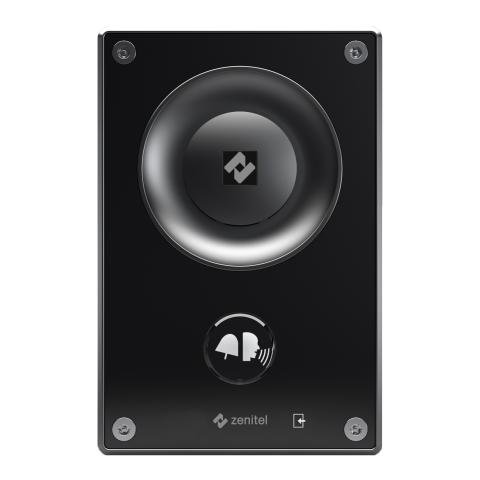

The Zenitel TCIS-3 Turbine IP Intercom delivers high-performance, crystal-clear communication designed for demanding security environments. Built with a robust die-cast aluminum frame and rated IP66 and IK08, it withstands dust, water, impact, and extreme temperatures. Its advanced audio engine incorporates HD voice, automatic volume control, acoustic echo cancellation, active noise cancellation, and a powerful 10W amplifier for unmatched clarity even in noisy locations.
Featuring a single illuminated call button, SIP support, open duplex communication, and compatibility with major communication systems, the TCIS-3 is ideal for building entry points, public facilities, industrial sites, and accessibility-compliant installations. With support for PoE, multiple inputs/outputs, and secure web-based configuration, this intercom provides reliable operation and seamless integration into modern IP networks.
| Category | Details |
|---|---|
| Product Type | IP & SIP Turbine Door Intercom |
| Audio Quality | HD Voice, <5% Alcons at 70 dB, <2% THD+N, Automatic Volume Control |
| Noise Cancellation | Yes – suppresses static, musical noise, and rapidly changing noise |
| Microphone | Digital MEMS, omnidirectional |
| Amplifier / Speaker | 10W Class D amplifier, 10W speaker |
| Audio Features | Acoustic Echo Cancellation, Adaptive Jitter Buffer, Custom Ring Tone, Audio Mixing, Scream Alarm (AlphaCom) |
| Codecs | G.711, G.722, G.729 |
| Networking Protocols | IPv4, SIP, TCP/UDP, HTTPS, DHCP, SNMP, RTP/SRTP, NTP |
| LAN Standards | PoE IEEE 802.3af, 802.1x NAC |
| Management | Web configuration (HTTP/HTTPS), centralized monitoring, remote software upgrade |
| Inputs/Outputs | 6 configurable I/O, relay (NO/NC/COM), LED drivers (12mA) |
| Power | PoE (802.3af) or 24VDC external supply |
| Power Consumption | 1.8W idle, up to 12W max (dependent on volume) |
| Construction Materials | PMMA faceplate, aluminum alloy frame, polycarbonate electronics cover |
| Durability Ratings | IP66 weatherproof, IK08 impact rating |
| Environmental | -40°C to 70°C operating; <95% RH (non-condensing); salt mist & vibration tested |
| Dimensions | 180 × 120 × 73 mm (standard) |
| Weight | 0.8 kg / 1.8 lbs |
| Certifications | Avaya, Cisco, NEC, UL; CE, FCC; Marine & Railway standards |
| Country of Manufacture | Poland |
