Description

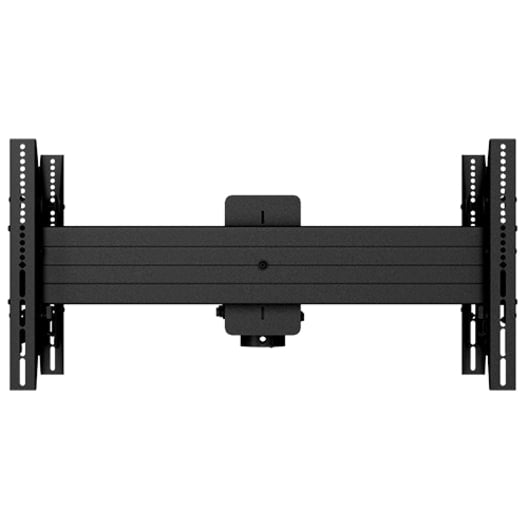

The Chief OLCB1U Outdoor Flat Panel Back-to-Back Ceiling and Pedestal Mount is engineered for reliable outdoor digital signage installations where durability and flexibility are essential. Built to withstand rain, humidity, ocean air, direct sun exposure, and high-wind environments, this mount is designed for long-term performance in demanding outdoor conditions.
With wind compatibility rated up to 2000 ft-lbs of maximum moment force, the OLCB1U supports a wide range of installation configurations while helping meet local safety requirements. The system supports two displays mounted back-to-back and can be installed from the ceiling or mounted to the floor as a pedestal, offering versatility for outdoor venues, transportation hubs, campuses, and commercial signage applications.
A tilt range of +7.6° to −20° with preset locking points ensures consistent alignment across multiple displays while eliminating guesswork during installation. The three-piece system—mount, column, and plate—allows for easier handling during installation and greater customization to match site-specific requirements.
| Category | Details |
|---|---|
| Product Type | Outdoor back-to-back flat panel ceiling and pedestal mount |
| Typical Screen Size | 42" – 65" (1067 – 1651 mm) |
| Number of Displays | 2 |
| Orientation | Landscape |
| Weight Capacity | Supports displays up to 125 lbs (56.7 kg) per mount |
| Mounting Options | Ceiling mounted or floor pedestal mounted |
| Tilt Adjustment | +7.6° to −20° with preset locking points |
| VESA Mounting Pattern | 200 × 100 mm up to 800 × 400 mm |
| Wind Load Rating | Engineered for up to 2000 ft-lbs maximum moment force |
| Outdoor Rating | Designed for rain, humidity, sun exposure, ocean air, and high-wind environments |
| Construction | Corrosion-resistant painted finish with stainless-steel hardware |
| Color | Black |
| Shipping Dimensions | 35.13" × 15.88" × 11.5" (892.4 × 403.4 × 292.1 mm) |
| Shipping Weight | 21.71 kg (47.9 lbs) |
| Compliance | Not TAA compliant |
| UPC | 841872171937 |
