Description

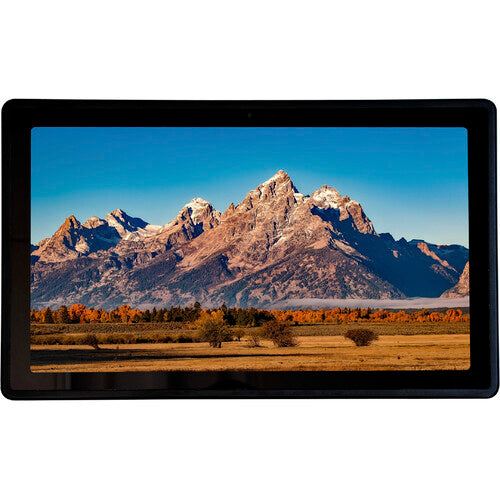

The Mimo Monitors MOD-10180CH is a rugged 10.1-inch WXGA outdoor touchscreen display engineered for high-performance digital signage and interactive applications in demanding environments. With a powerful 1000-nit brightness level and integrated ambient light sensor, this display ensures optimal visibility in direct sunlight and changing lighting conditions throughout the day.
Built for reliability, the MOD-10180CH features an IP65-rated all-aluminum enclosure that protects against water, dust, humidity, and airborne debris. Its IK10-rated impact-resistant design provides added durability in high-traffic or public-facing installations such as gas stations, quick-service restaurants, amusement parks, and sports venues.
The responsive 10-point capacitive touch panel delivers smooth and accurate user interaction, while HDMI input and USB-B connectivity enable seamless integration with external media players or systems. Designed for continuous operation, this display supports 24/7 duty cycles and flexible mounting in both landscape and portrait orientations, making it a dependable solution for outdoor commercial deployments.
| Category | Specification |
|---|---|
| Display Size | 10.1 inches |
| Panel Type | LCD |
| Native Resolution | 1280 x 800 (WXGA) |
| Aspect Ratio | 16:10 |
| Brightness | 1000 nits |
| Contrast Ratio | 800:1 |
| Viewing Angle | 176° (H) / 176° (V) |
| Refresh Rate | 60 Hz |
| Screen Finish | Anti-Glare, 3H Hardness |
| Touch Technology | Projected Capacitive |
| Multi-Touch Points | 10-point |
| Operating System Support | Windows, Linux HID |
| A/V Input | 1 x HDMI |
| Audio Output | 1 x 3.5 mm (Analog Audio) |
| USB Interface | 1 x USB-B (Touch Control) |
| Ethernet | Not Supported |
| Built-In Speakers | Not Included |
| Ambient Light Sensor | Yes |

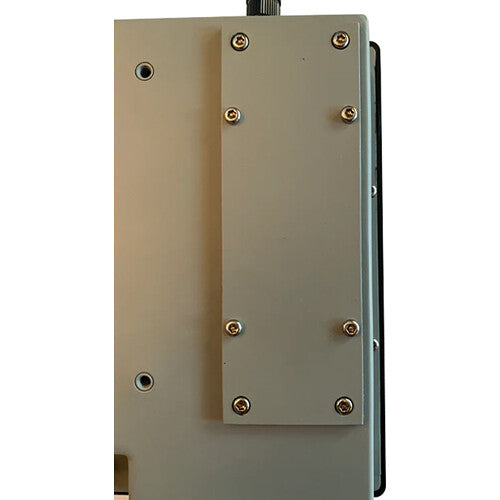

| Mounting | VESA 100 x 100 mm |
| Orientation | Landscape and Portrait |
| Power Consumption | 40W (Operational) |
| Input Power | 100–240V AC, 50/60 Hz |
| Operating Temperature | -18°F to 140°F (-28°C to 60°C) |
| Enclosure | All-Aluminum Housing |
| Environmental Rating | IP65 (Water, Dust, Humidity Resistant) |
| Impact Protection | IK10 Rated |
| Duty Cycle | 24/7 Continuous Operation |
| Certifications | CE, FCC, RoHS |
| Included Accessories | Power Supply, Remote Control |
| Warranty | 1-Year Limited Manufacturer Warranty |
