Description

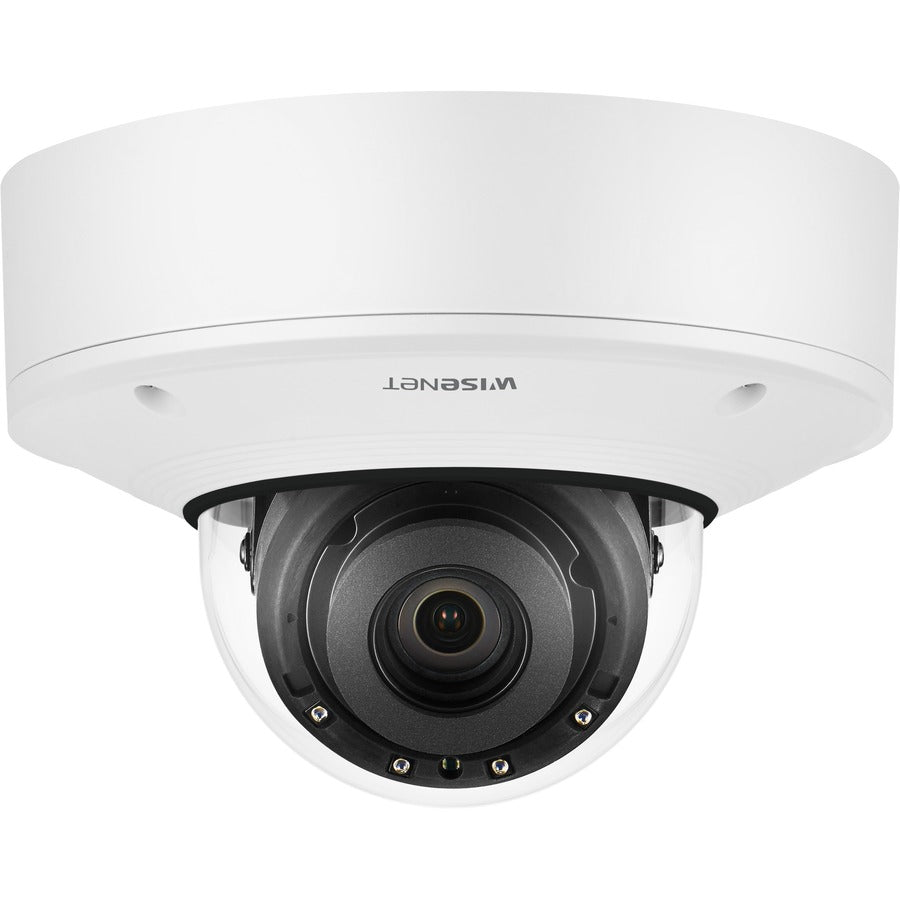

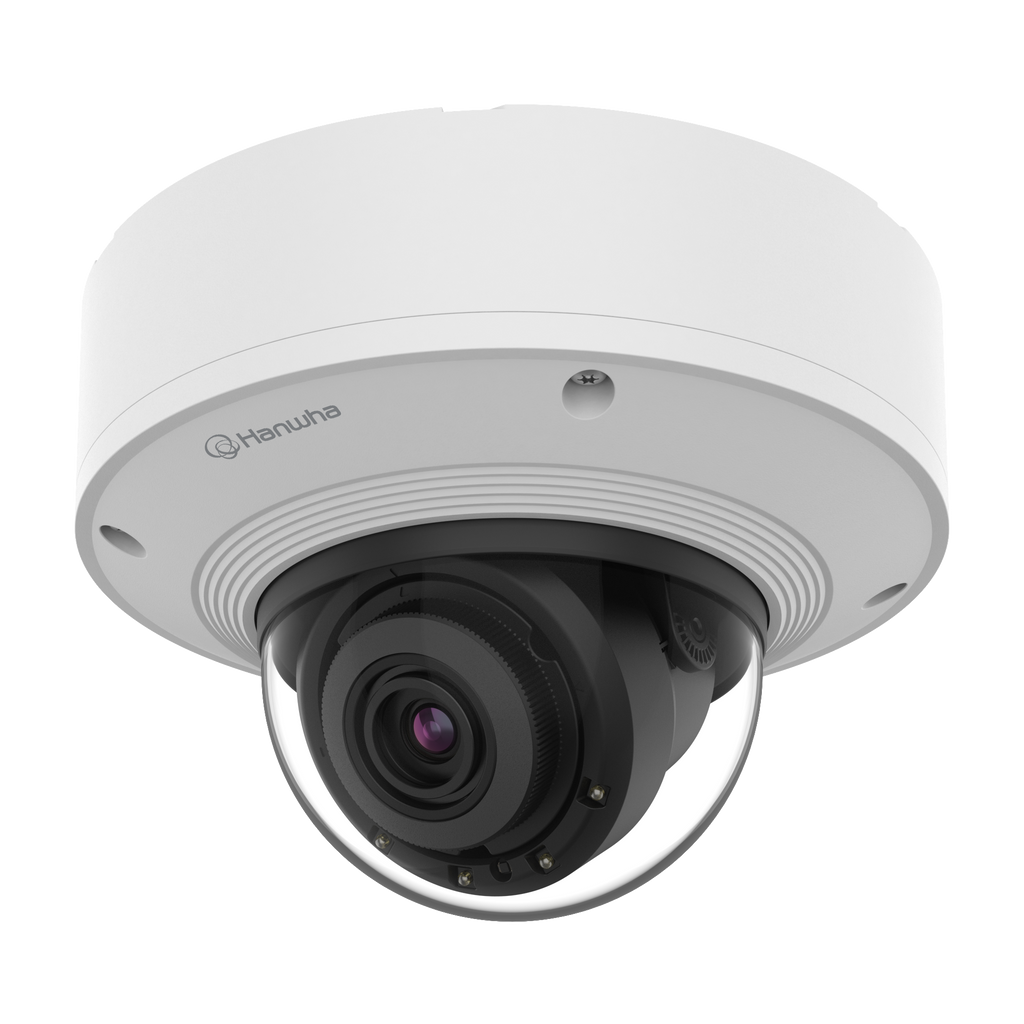

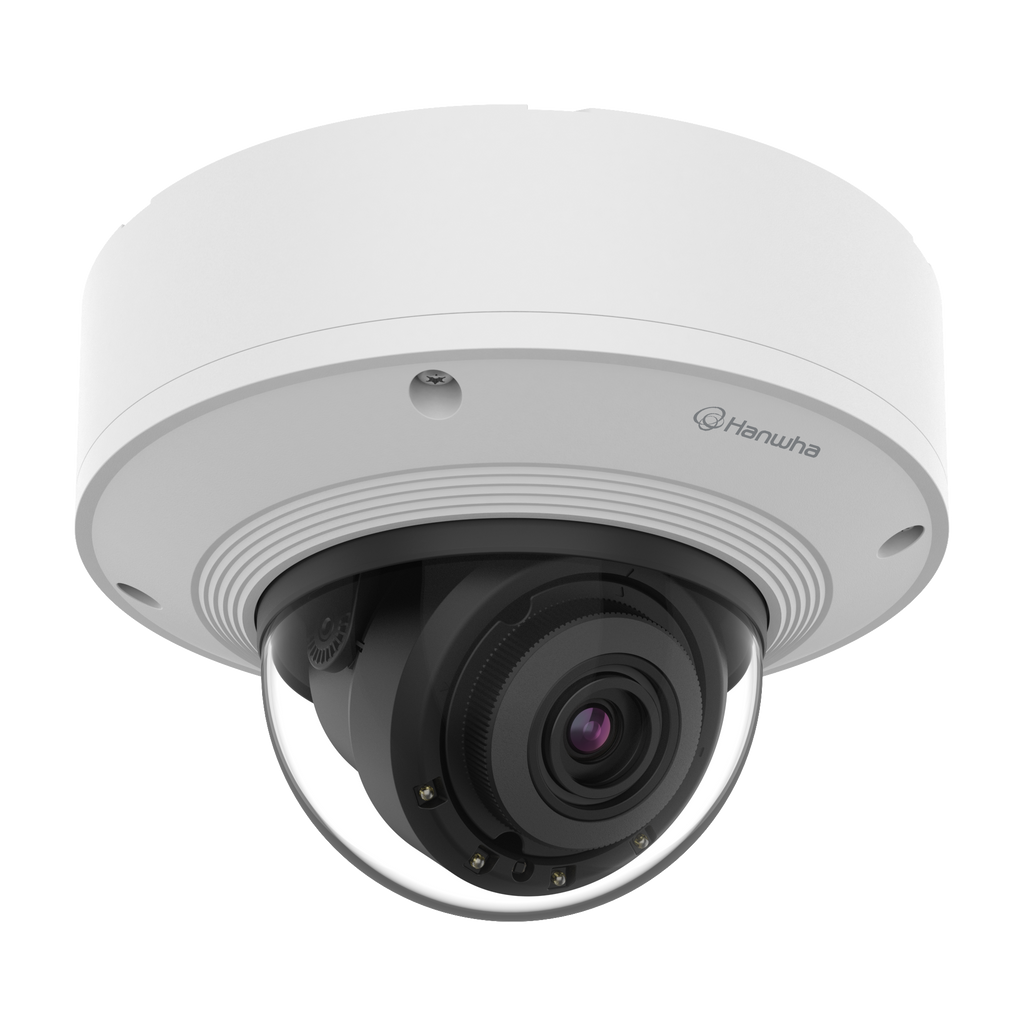

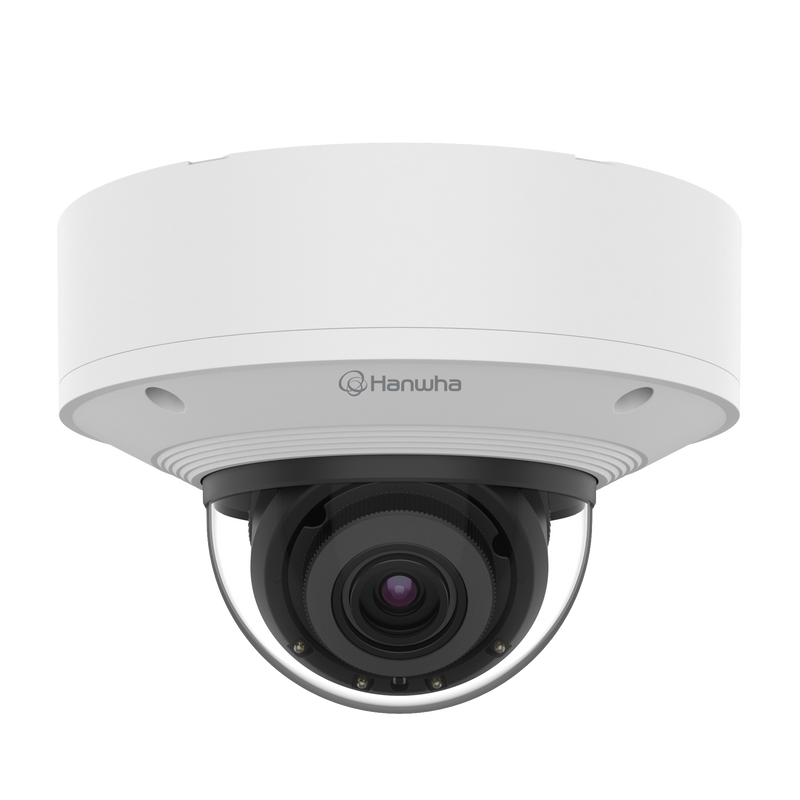

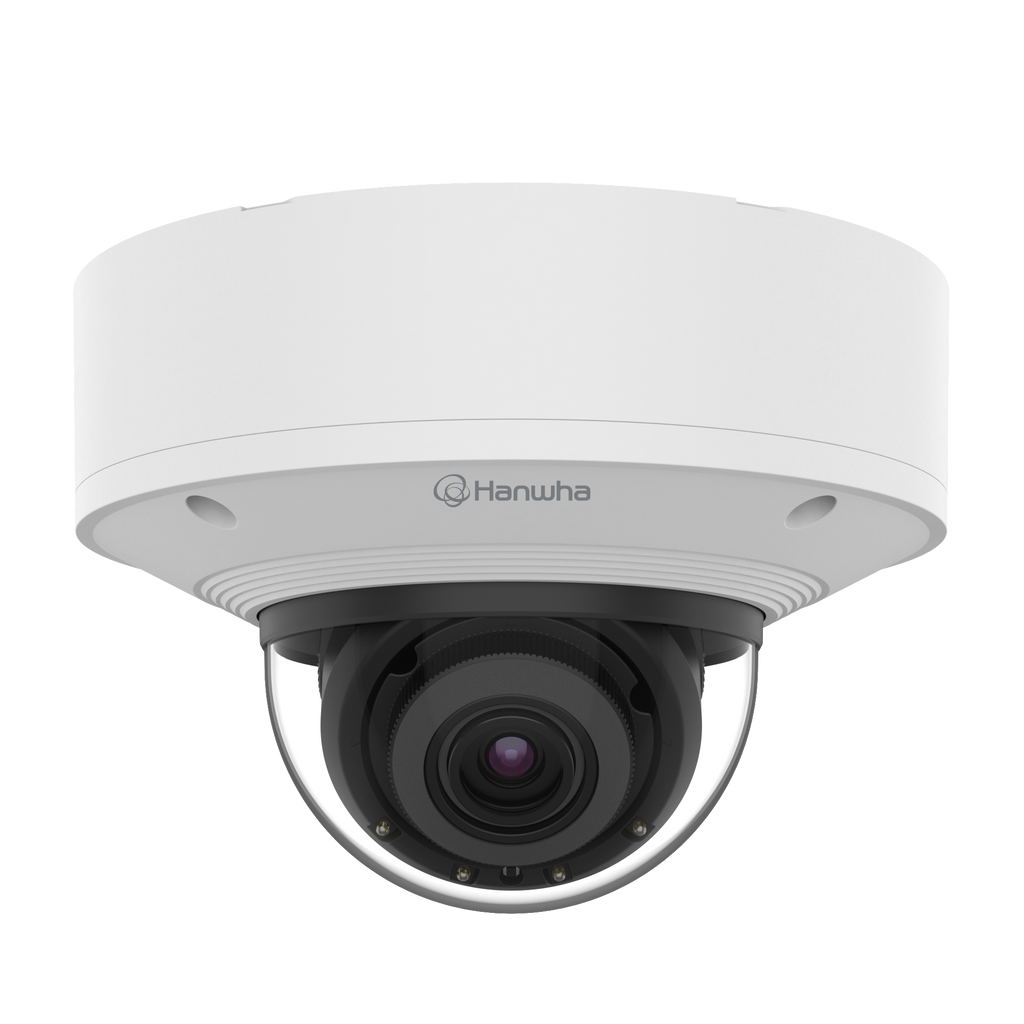

The Hanwha Vision XNV-8081R is a high-performance 5-megapixel outdoor dome camera engineered for demanding surveillance environments. Built on a 1/1.8" CMOS sensor, it delivers exceptional image clarity with 0.07 lux (color) low-light performance and integrated IR illumination up to 50m for true day/night monitoring.
Featuring 150dB/120dB WDR, advanced video & audio analytics, sound classification, people counting, heatmap, and digital auto-tracking, the XNV-8081R provides intelligent situational awareness for enterprise-grade security.
Its modular structure, simple focus, and support for PoE / 12VDC / 24VAC allow flexible installation, while rugged IP66/IP67, IK10+, and NEMA 4X certifications ensure maximum durability in harsh environments. With dual microSD slots (up to 512GB total), H.265/H.264/MJPEG support, and WiseStream II smart compression, this camera delivers efficient, reliable, and secure video surveillance.
| Category | Specification |
|---|---|
| Model | Hanwha Vision XNV-8081R |
| Image Sensor | 1/1.8" CMOS |
| Max Resolution | 5MP (2560×1920) |
| Supported Resolutions | From 2560×1920 down to 320×240 |
| Max Frame Rate | 30fps (H.265/H.264/MJPEG) |
| Minimum Illumination | 0.07 lux (Color), 0.007 lux (B/W), 0 lux with IR |
| IR Range | 50m (164 ft) |
| Lens | 3.9–9.4mm motorized, 2.4× optical zoom |
| Aperture | F1.3 (wide) |
| Field of View | H: 92.1°–38.7°, V: 67.2°–29.0°, D: 119.9°–48.6° |
| Focus Control | Simple focus |
| Day/Night | ICR auto |
| WDR | 120dB |
| Backlight Compensation | BLC / HLC / WDR / SSDR |
| Image Enhancements | SSNR V, Defog, DIS (gyro sensor), LDC |
| Analytics | Motion, Tampering, Face, Fog, Audio detection, Sound classification, Virtual line & area, Digital auto-tracking |
| Business Intelligence | People counting, Queue management, Heatmap |
| Compression | H.265 / H.264 (High/Main/Baseline) / MJPEG |
| Smart Codec | WiseStream II |
| Network | IPv4/IPv6, RTP/RTSP, HTTPS, SSL/TLS, SNMP, SRTP |
| API Support | ONVIF S/G/T, SUNAPI, Hanwha Open Platform |
| Audio I/O | 1× audio in (mic/line), 1× audio out |
| Alarm I/O | 1× input, 1× output |
| Edge Storage | Dual microSD slots (up to 512GB total) |
| Operating Temperature | –50°C to +60°C (startup above –35°C) |
| Housing Rating | IP66 / IP67 / IK10+ / NEMA 4X |
| Power Options | PoE (Class 3), 12VDC, 24VAC |
| Power Consumption | 10.9–12.95W (PoE), up to 14.9W (24VAC) |
| Material / Color | Aluminum, RAL9003 white |
| Dimensions | Ø180 × 125 mm (7.09 × 4.92 in) |
| Weight | 1.75 kg (3.86 lb) |
