Description

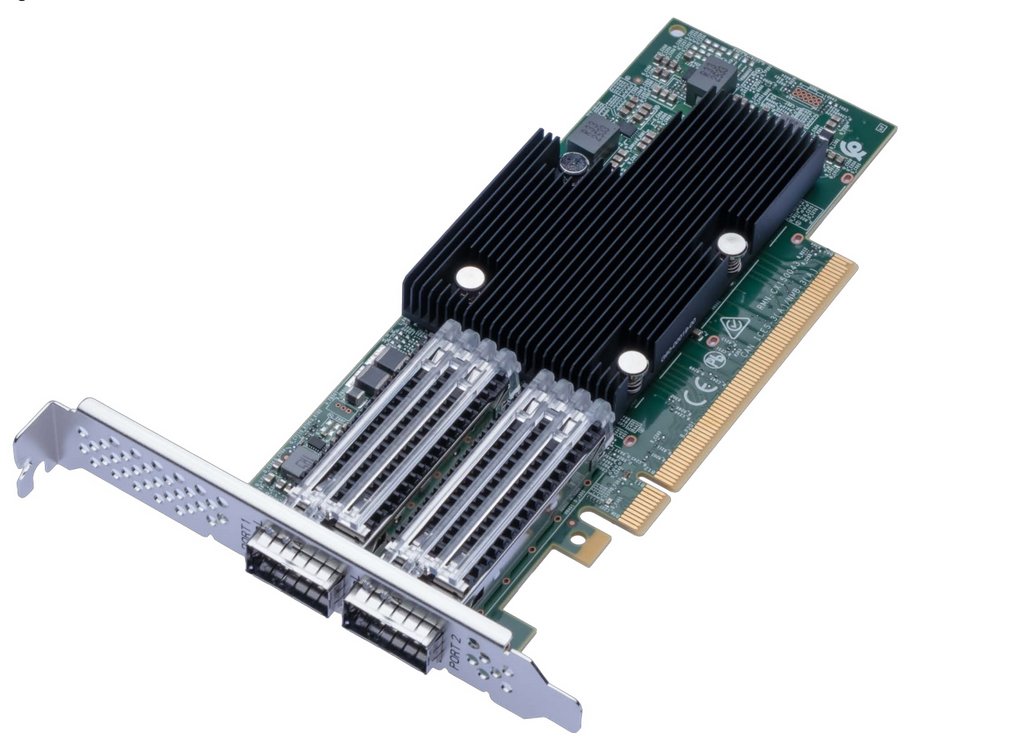

The Broadcom BCM957508-P2100G is a high-performance dual-port 100GbE QSFP56 network interface card designed for modern data centers, cloud infrastructures, and high-bandwidth compute environments. Powered by the Broadcom BCM57508 Ethernet controller, this adapter delivers exceptional throughput, advanced congestion management, secure virtualization features, and industry-leading I/O acceleration.
With support for QSFP56/QSFP28/QSFP+ optical modules and DACs, PCIe Gen4 x16 bandwidth, and an extensive suite of offload capabilities—including VXLAN, NVGRE, Geneve encap/decap, RoCE, RSS, TSO, and SR-IOV with up to 1,000 VFs—the BCM957508-P2100G ensures optimized performance for virtualized, cloud, and high-density compute workloads.
Engineered with Broadcom’s BroadSAFE® security, a robust thermal solution, and broad regulatory compliance, this adapter provides reliable operation across demanding enterprise and telecom environments.
| Category | Specification |
|---|---|
| Model / SKU | BCM957508-P2100G |
| Form Factor | PCIe add-in card, standard-height bracket |
| Ports | 2 × QSFP56 (supports QSFP56/QSFP28/QSFP+) |
| Port Speed | 100 Gb/s per port |
| Controller | Broadcom BCM57508 |
| Host Interface | PCIe 4.0 x16 |
| Supported Signaling | 50G PAM4, 25G NRZ, 10G NRZ |
| Virtualization Features | SR-IOV (up to 1,000 VFs), FLR, vSwitch acceleration |
| Network Offloads | VXLAN / NVGRE / Geneve, GRE, RSS, TSO, LRO, LSO, checksum offloads |
| RDMA Support | RoCE |
| DCB Support | PFC, ETS, QCN, DCBx |
| Jumbo Frames | Up to 9 KB |
| Management Interfaces | NC-SI, SMBus 2.0, MCTP |
| Boot Options | PXE, UEFI, iSCSI boot |
| LED Indicators | Activity and link LEDs per port (100G Green, lower speed Amber) |
| Power Consumption (Typical) | 16.0 W (DAC), 21.0 W (optical) |
| Power Consumption (Max) | 17.1 W (DAC), 22.0 W (optical) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | –40°C to 70°C |
| Relative Humidity | Up to 90% non-condensing |
| Airflow Requirement | 225–420 LFM depending on optics |
| Dimensions | 167.64 mm × 68.91 mm |
| Weight | 167 g |
| Compliance | CE, UL, FCC Class A, ICES-003, VCCI, BSMI, UKCA, RoHS |
